XB6ECA21P

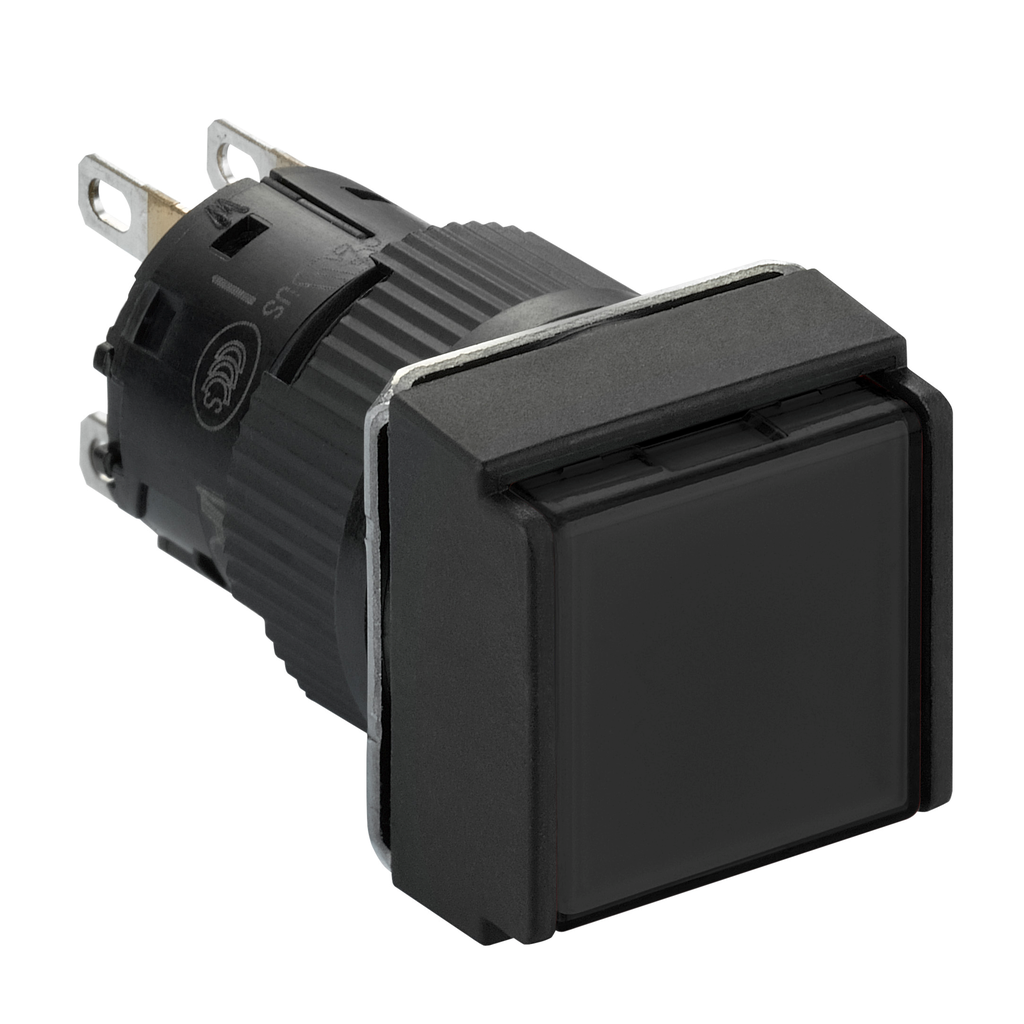

Monolithic push button, Harmony XB6E, square black flush, 16mm, spring return, 1CO
Specifications
| Range Of Product | Harmony XB6E |
|---|---|
| Contacts Material | gold-flashed silver |
| Mounting Diameter | 16 mm |
| Type Of Operator | spring return |
| Connections - Terminals |
|
| Product Or Component Type | monolithic push-button |
| Shape Of Signaling Unit Head | square |
| Contacts Type And Composition | 1 C/O |
| Sale Per Indivisible Quantity | 5 |
| Bezel Material | plastic |
| Contact Operation | snap action |
| Operator Profile | black flush |
| Device Short Name | XB6E |
| Warranty | 18 months |
| Short-Circuit Protection | 2 A cartridge fuse gG |
| Contact Resistance | 50 mOhm 1/6 V |
| [Ith] Conventional Free Air Thermal Current |
|
| Marking | CE |
| Net Weight | 0.006 kg |
| Electrical Durability | 100000 cycles, AC, 0.7 A 220 V EN/IEC 60947-5-1 appendix C |
| Overvoltage Category | II IEC 60536 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 1000000 cycles |
| Operating Position | any position |
| Tightening Torque | 0.6-1 N.m |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -10-55 °C |
| Standards |
|
| Shock Resistance | 10 gn 11 ms) half sine wave acceleration IEC 60068-2-27 |
| Vibration Resistance | 1 mm 10-55 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
