[Us] Rated Supply Voltage | 12...24 V AC/DC |
---|---|
Range Of Product | Harmony XB6 |
Light Source | LED |
Light Block Supply | direct |
Mounting Diameter | 16 mm |

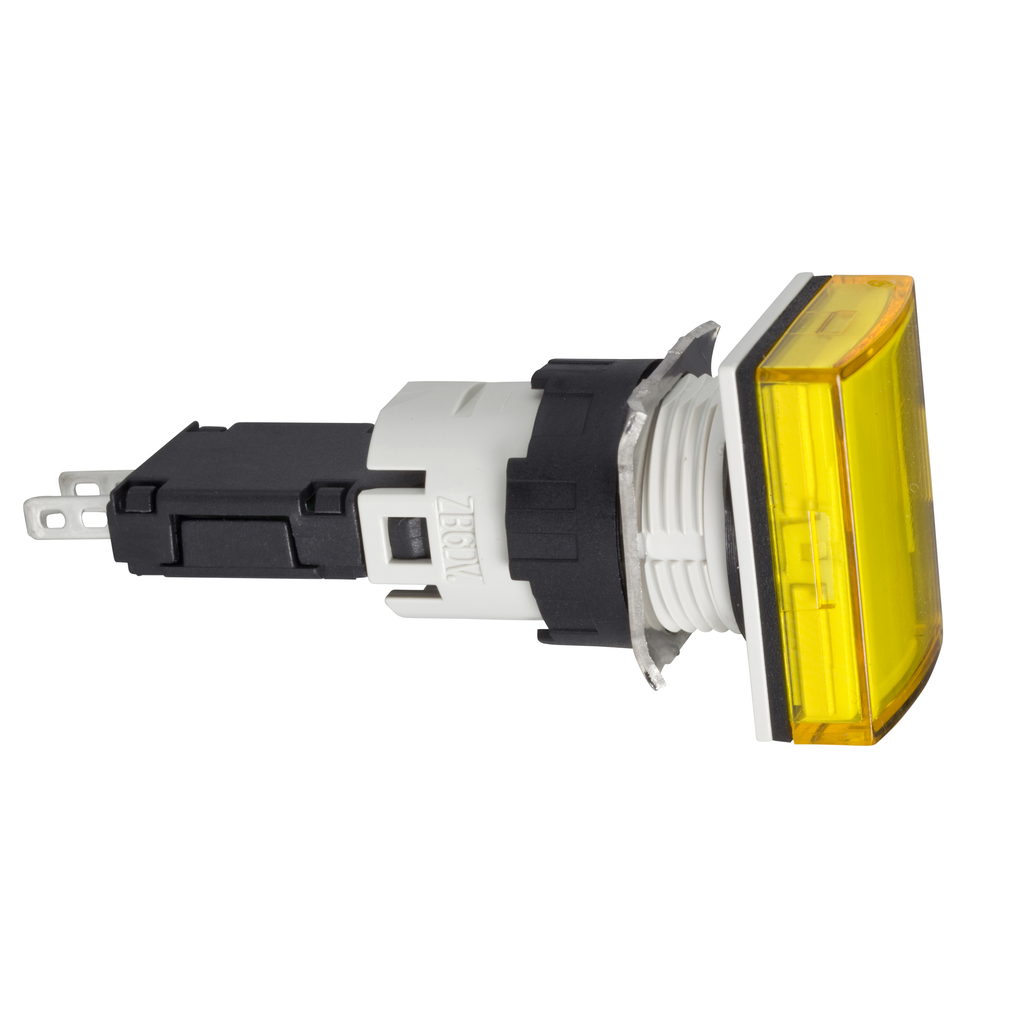

Product Or Component Type | complete pilot light |
Shape Of Signaling Unit Head | rectangular |
Cap/Operator Or Lens Colour | yellow |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic |
Device Short Name | XB6 |
Bulb Base | integral LED |
Warranty | 18 months |
Height | 18 mm |
Terminals Description Iso N°1 | (+ -)PL |
Net Weight | 0.015 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
Current Consumption | 15 mA |
Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
Surge Withstand |
|
[Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
Signalling Type | steady |
Supply Voltage Limits | 6-30 V AC/DC |
Operating Position | any position |
Width | 24 mm |
Depth | 57 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
Standards |
|
Shock Resistance |
|
Vibration Resistance |
|
Ip Degree Of Protection | IP65 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Resistance To Electrostatic Discharge |
|
Electrical Shock Protection Class | class II IEC 61140 |
Protective Treatment | TC |
Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
Electromagnetic Emission | class B EN 55011 |
