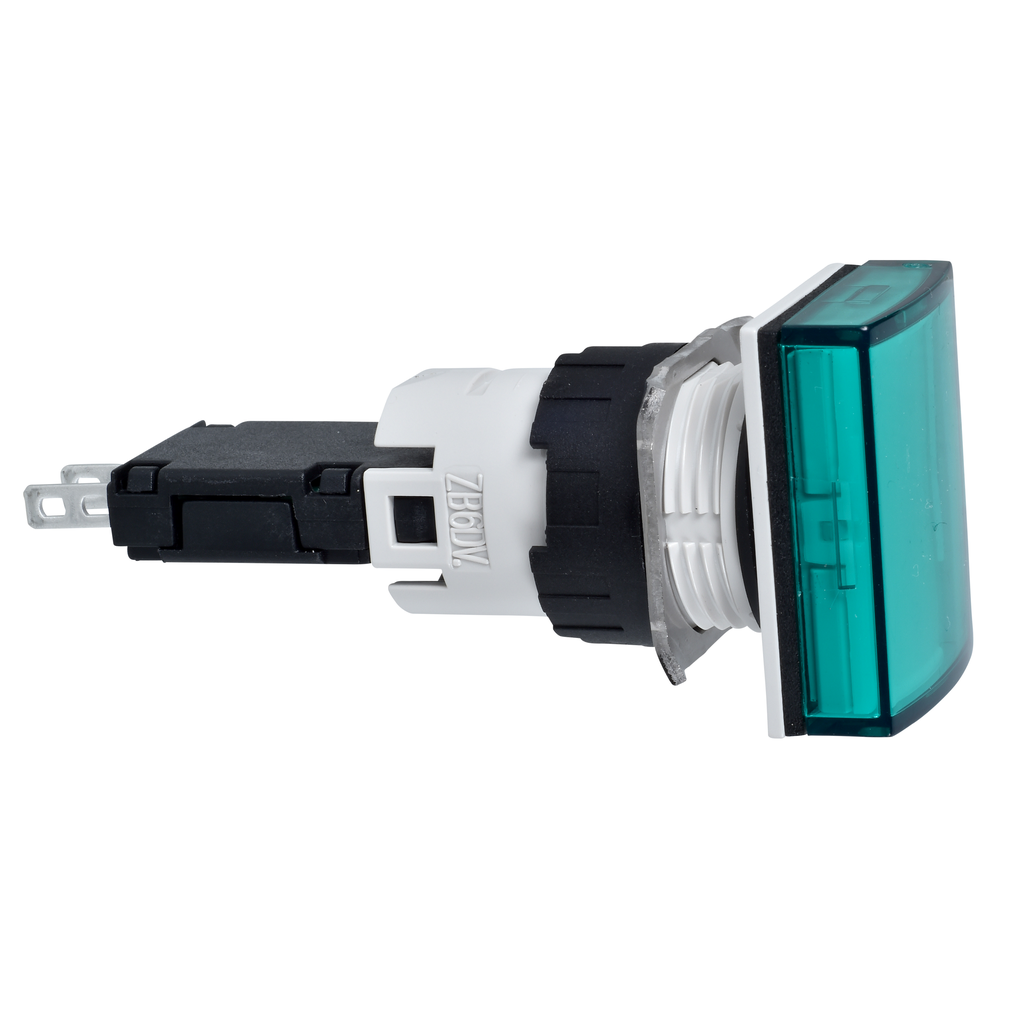

16mm push button, Harmony XB6, pilot light, rectangular green lens, integral 12/24V LED light module
XB6/ZB6 16mm push buttons, pilot lights and selctor swiches are for applications where the surface area is restricted. These operators are commonly used on small machines, control panels, control boards, small electronic equipment and more. This operator is a complete 16mm pilot light. Pilot light has a green rectangular lens. Pilot light has a 12-24 VAC/VDC LED light module. Light module has 2.8 x 0.5 mm faston connectors. Selector switch is 0.71 inches tall, 0.94 inches wide and 2.24 inches deep. Selector switch weighs 0.03 lbs. Operator is NEMA 4, 4X and 13 rated. Selector switch is UL listed and CSA certified. "This product is certified by CCC, CSA, UL and GOST. It meets JIS C 852, JIS C8201-5-1, EN/IEC 60947-1, EN/IEC 60947-5-5, EN/IEC 60947-5-1 and JIS C8201-1 standards." "It is installed into a Ø 16mm panel cutout." "The modular and monolithic range of Ø 16mm plastic control and signaling provide flexibility and simplicity of setup in industrial and commercial applications."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | 12...24 V AC/DC |
|---|---|
| Range Of Product | Harmony XB6 |
| Light Source | LED |
| Light Block Supply | direct |
| Mounting Diameter | 16 mm |
| Product Or Component Type | complete pilot light |
| Shape Of Signaling Unit Head | rectangular |
| Cap/Operator Or Lens Colour | green |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Device Short Name | XB6 |
| Bulb Base | integral LED |
| Warranty | 18 months |
| Height | 18 mm |
| Terminals Description Iso N°1 | (+ -)PL |
| Net Weight | 0.015 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Current Consumption | 15 mA |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Surge Withstand |
|
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Signalling Type | steady |
| Supply Voltage Limits | 6-30 V AC/DC |
| Operating Position | any position |
| Width | 24 mm |
| Depth | 57 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Resistance To Electrostatic Discharge |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | class B EN 55011 |
