XB6DV1BB

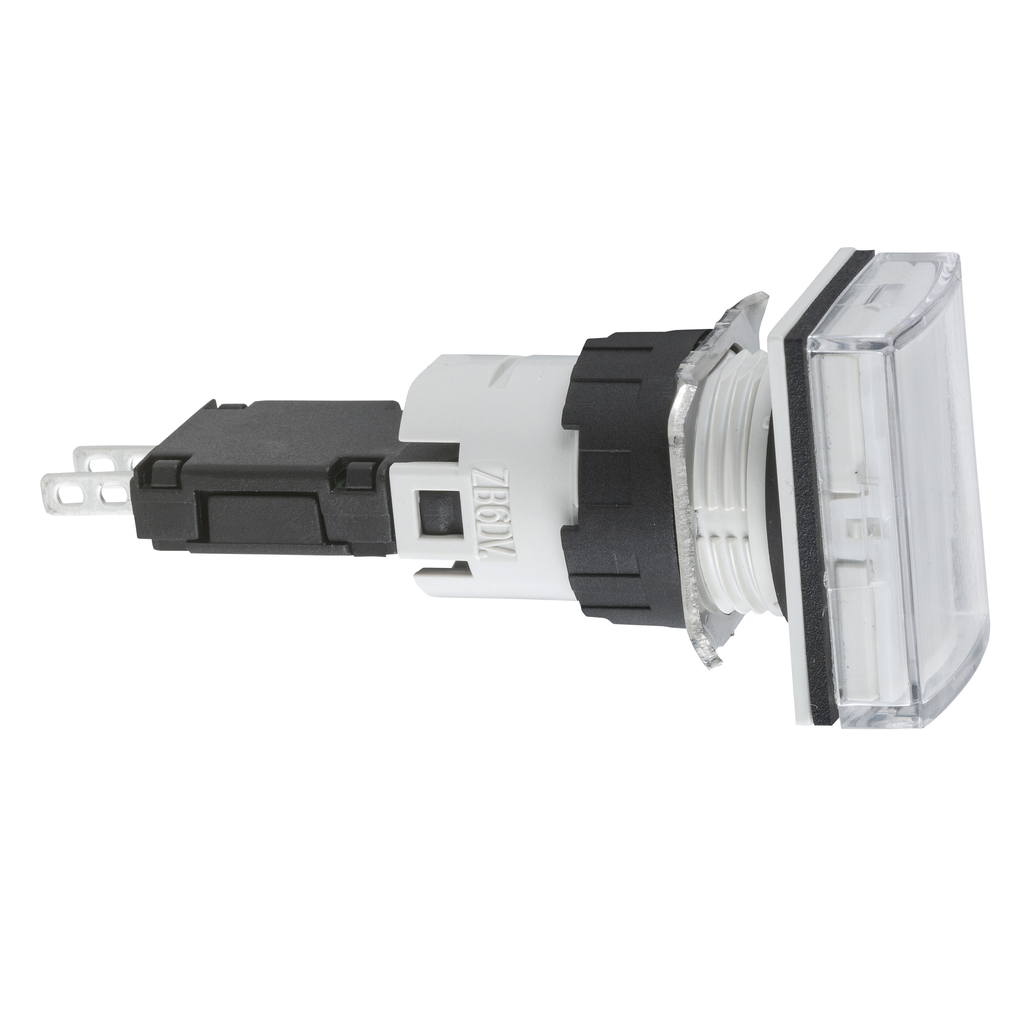

Complete pilot light, Harmony XB6, rectangular white, plastic, 16mm, integral LED, 12...24V
Specifications
| [Us] Rated Supply Voltage | 12...24 V AC/DC |
|---|---|
| Range Of Product | Harmony XB6 |
| Light Source | LED |
| Light Block Supply | direct |
| Mounting Diameter | 16 mm |
| Product Or Component Type | complete pilot light |
| Shape Of Signaling Unit Head | rectangular |
| Cap/Operator Or Lens Colour | white |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Device Short Name | XB6 |
| Bulb Base | integral LED |
| Warranty | 18 months |
| Height | 18 mm |
| Terminals Description Iso N°1 | (+ -)PL |
| Net Weight | 0.015 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Current Consumption | 15 mA |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Surge Withstand |
|
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Signalling Type | steady |
| Supply Voltage Limits | 6-30 V AC/DC |
| Operating Position | any position |
| Width | 24 mm |
| Depth | 57 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Resistance To Electrostatic Discharge |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Electromagnetic Emission | class B EN 55011 |
