XB6DGC5B

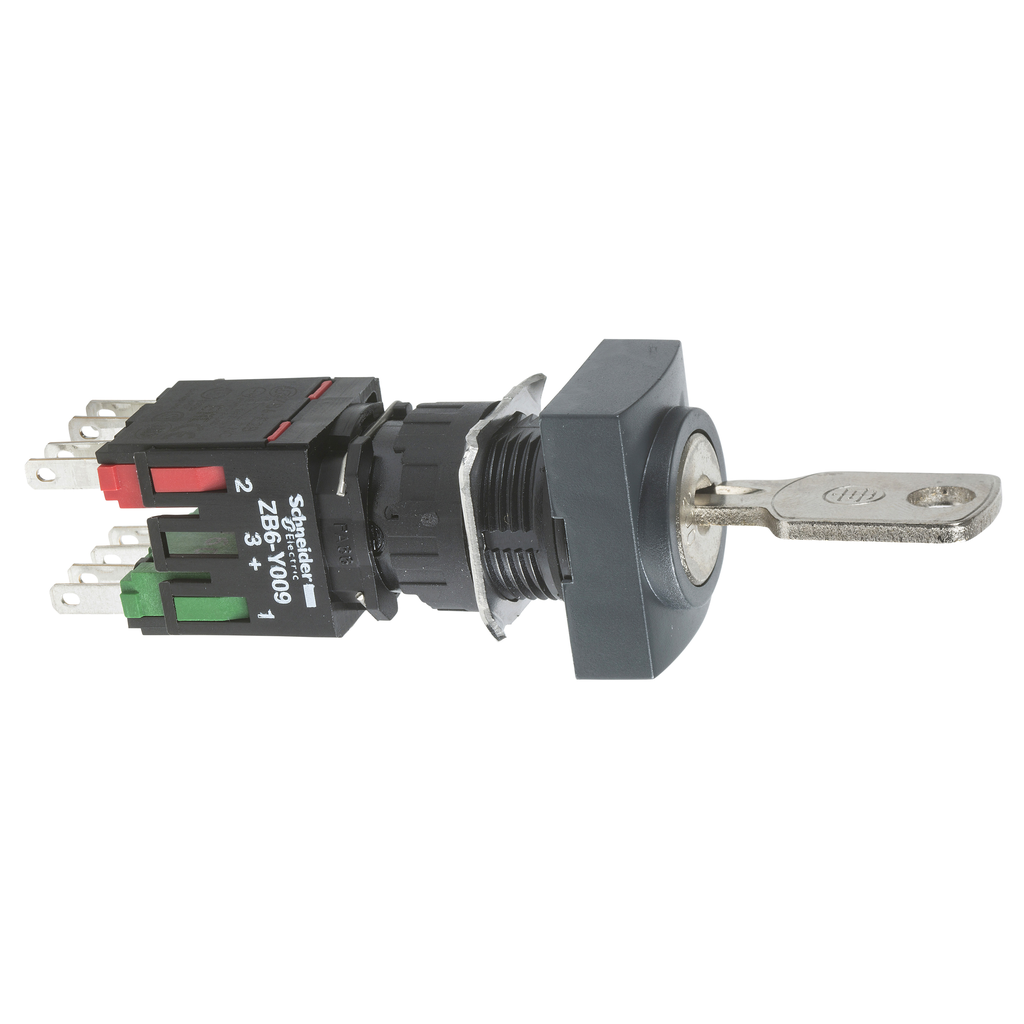

Selector switch, Harmony XB6, black rectangular, 16mm, 2 positions, stay put, 1NO + 1NC, key 200
This Harmony XB6, complete key selector switch is part of the range diameter 16mm plastic, Harmony XB6 monolithic. It has a a rectangular head shape, and is supplied with a Ronis key no. 200 operated knob. It features 2 positions maintained, at 70°. It features 1 NO + 1 NC slow break contacts and faston connection type. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It weighs 36g. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB6 |
|---|---|
| Mounting Diameter | 16 mm |
| Type Of Operator | stay put |
| Product Or Component Type | complete selector switch |
| Shape Of Signaling Unit Head | rectangular |
| Key Withdrawal Position | in any position |
| Contacts Type And Composition | 1 NO + 1 NC |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | plastic |
| Contact Operation | slow-break |
| Operator Profile | key switch |
| Operator Position Information | 2 positions 70° |
| Operating Position | any position |
| Device Short Name | XB6 |
| Type Of Keylock | key 200 |
| Warranty | 18 months |
| Terminals Description Iso N°1 |
|
| Short-Circuit Protection | 6 A cartridge fuse gG |
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| Net Weight | 0.036 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Cad Overall Height | 18 mm |
| Electrical Durability |
|
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| [Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 200000 cycles |
| Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % EN 60947-5-4 |
| Cad Overall Width | 24 mm |
| Cad Overall Depth | 80 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance |
|
| Ip Degree Of Protection | IP65 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 61140 |
| Protective Treatment | TC |
