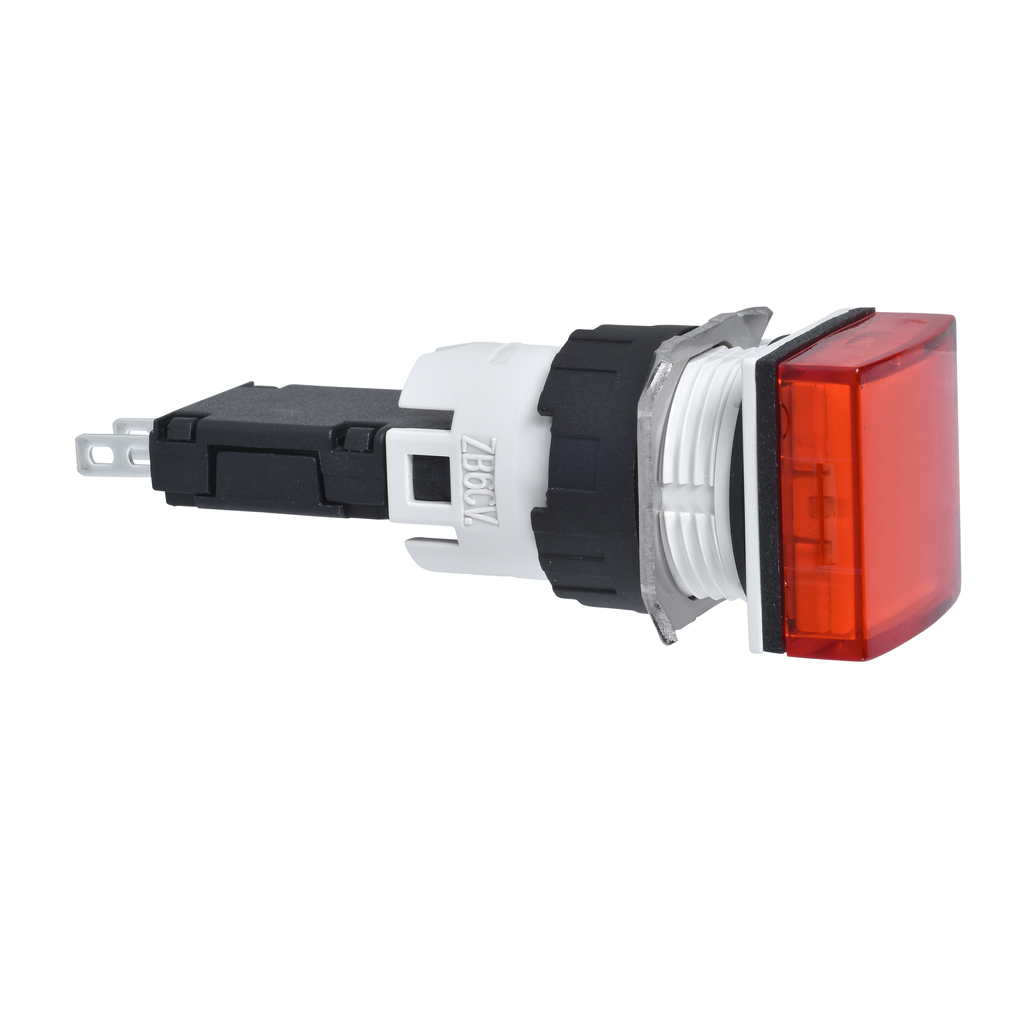

This Harmony XB6 red, complete pilot light is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a square head shape and is supplied with an integral LED and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. This range comes with good color purity and offers the advantage of LED brightness. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Brand: Schneider Electric
Add to Quote Catalogue[Us] Rated Supply Voltage | 12...24 V AC/DC |
---|---|
Range Of Product | Harmony XB6 |
Light Source | LED |
Light Block Supply | direct |
Mounting Diameter | 16 mm |
Product Or Component Type | complete pilot light |
Shape Of Signaling Unit Head | square |
Cap/Operator Or Lens Colour | red |
Sale Per Indivisible Quantity | 1 |
Bezel Material | plastic |
Device Short Name | XB6 |
Bulb Base | integral LED |
Warranty | 18 months |
Height | 18 mm |
Terminals Description Iso N°1 | (+ -)PL |
Net Weight | 0.015 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
Current Consumption | 15 mA |
Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
Surge Withstand |
|
[Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
Signalling Type | steady |
Supply Voltage Limits | 6-30 V AC/DC |
Operating Position | any position |
Width | 18 mm |
Depth | 57 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
Standards |
|
Shock Resistance |
|
Vibration Resistance |
|
Ip Degree Of Protection | IP65 IEC 60529 |
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Resistance To Electrostatic Discharge |
|
Electrical Shock Protection Class | class II IEC 61140 |
Protective Treatment | TC |
Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
Electromagnetic Emission | class B EN 55011 |
