Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
---|---|
Contacts Type And Composition | 1 NO + 1 NC |
Sale Per Indivisible Quantity | 1 |
Range Of Product | Harmony XB6 |
Bezel Material | plastic |
Contact Operation | slow-break |
Operator Profile | black flush, unmarked |
Mounting Diameter | 16 mm |
Type Of Operator | spring return |

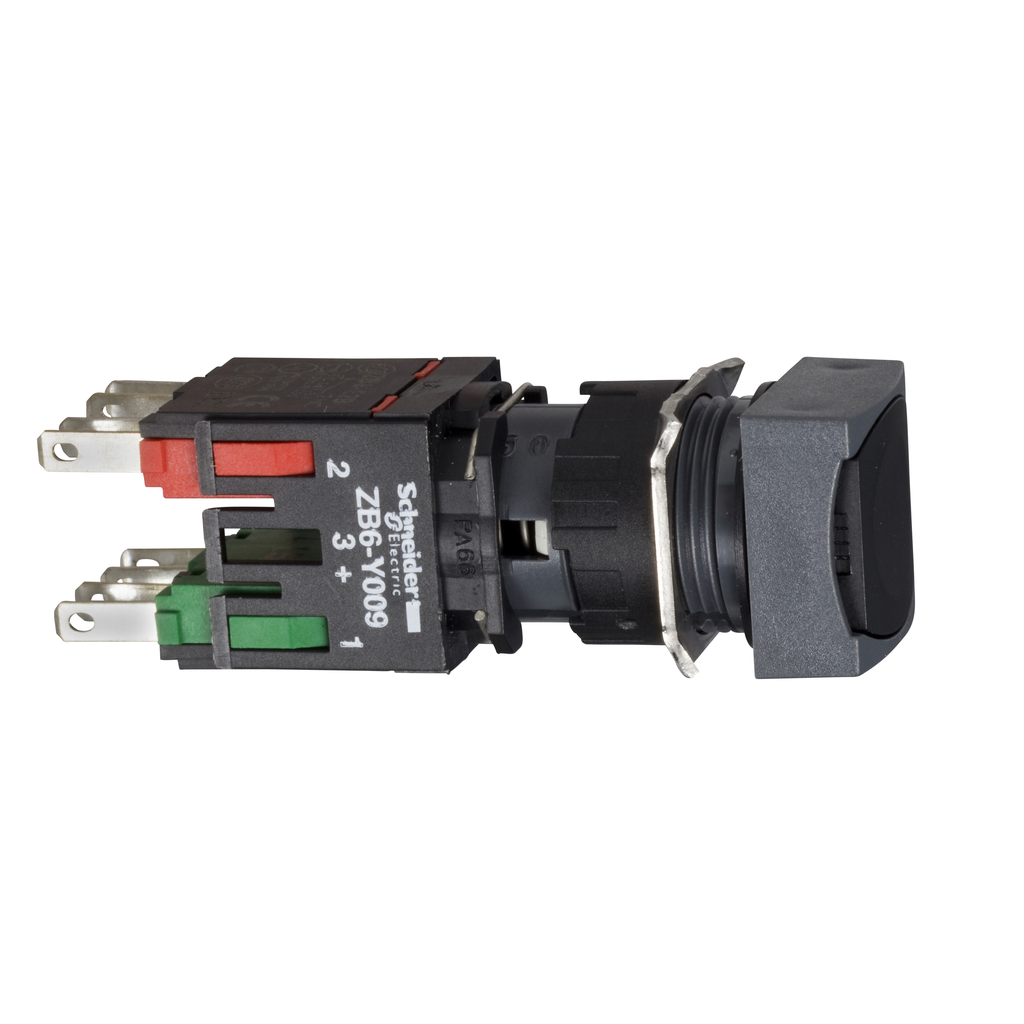

Product Or Component Type | complete push-button |
Shape Of Signaling Unit Head | square |
Device Short Name | XB6 |
Warranty | 18 months |
Electrical Durability |
|
Terminals Description Iso N°1 |
|
[Ui] Rated Insulation Voltage | 250 V 3)EN/IEC 60947-1 |
Short-Circuit Protection | 6 A cartridge fuse gG |
Operating Force |
|
[Ie] Rated Operational Current |
|
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Mechanical Durability | 2000000 cycles |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
Operating Position | any position |
Electrical Reliability | λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4 |
Cad Overall Width | 18 mm |
Cad Overall Depth | 57 mm |
Net Weight | 0.022 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
Cad Overall Height | 18 mm |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-70 °C |
Ambient Air Temperature For Storage | -40-70 °C |
Standards |
|
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 61140 |
Shock Resistance |
|
Vibration Resistance |
|
Protective Treatment | TC |
Ip Degree Of Protection | IP65 IEC 60529 |
