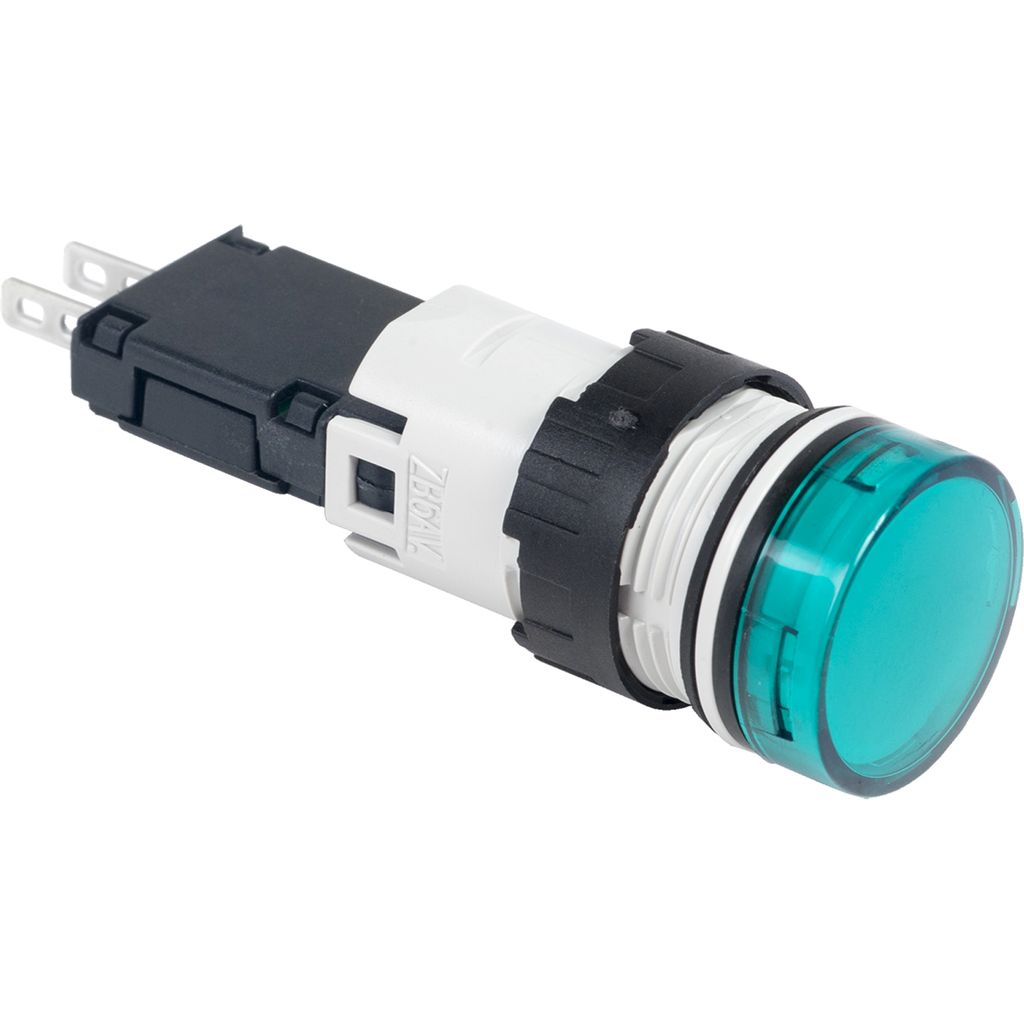

XB6AV3GB
Complete pilot light, Harmony XB6, round green, plastic, 16mm, integral LED 48...120V
This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 16mm diameter cut-outs and connected with simple screw-clamp connections It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination and transformer It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 13 and 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | 48...120 V AC |
|---|---|
| Sale Per Indivisible Quantity | 1 |
| Range Of Product | Harmony XB6 |
| Bezel Material | plastic |
| Light Source | LED |
| Light Block Supply | direct |
| Mounting Diameter | 16 mm |
| Product Or Component Type | complete pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | green |
| Device Short Name | XB6 |
| Bulb Base | integral LED |
| Warranty | 18 months |
| Connections - Terminals | Faston connectors 2.8 x 0.5 mm |
| Height | 18 mm |
| Surge Withstand |
|
| Terminals Description Iso N°1 | (X1-X2)PL |
| [Ui] Rated Insulation Voltage | 250 V 2)EN/IEC 60947-1 |
| Signalling Type | steady |
| Supply Voltage Limits | 6-30 V AC/DC |
| Operating Position | any position |
| Width | 18 mm |
| Depth | 57 mm |
| Net Weight | 0.015 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN/IEC 60947-1 |
| Current Consumption | 15 mA |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Resistance To Electrostatic Discharge |
|
| Electrical Shock Protection Class | class II IEC 61140 |
| Shock Resistance |
|
| Vibration Resistance |
|
| Protective Treatment | TC |
| Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Electromagnetic Emission | class B EN 55011 |
