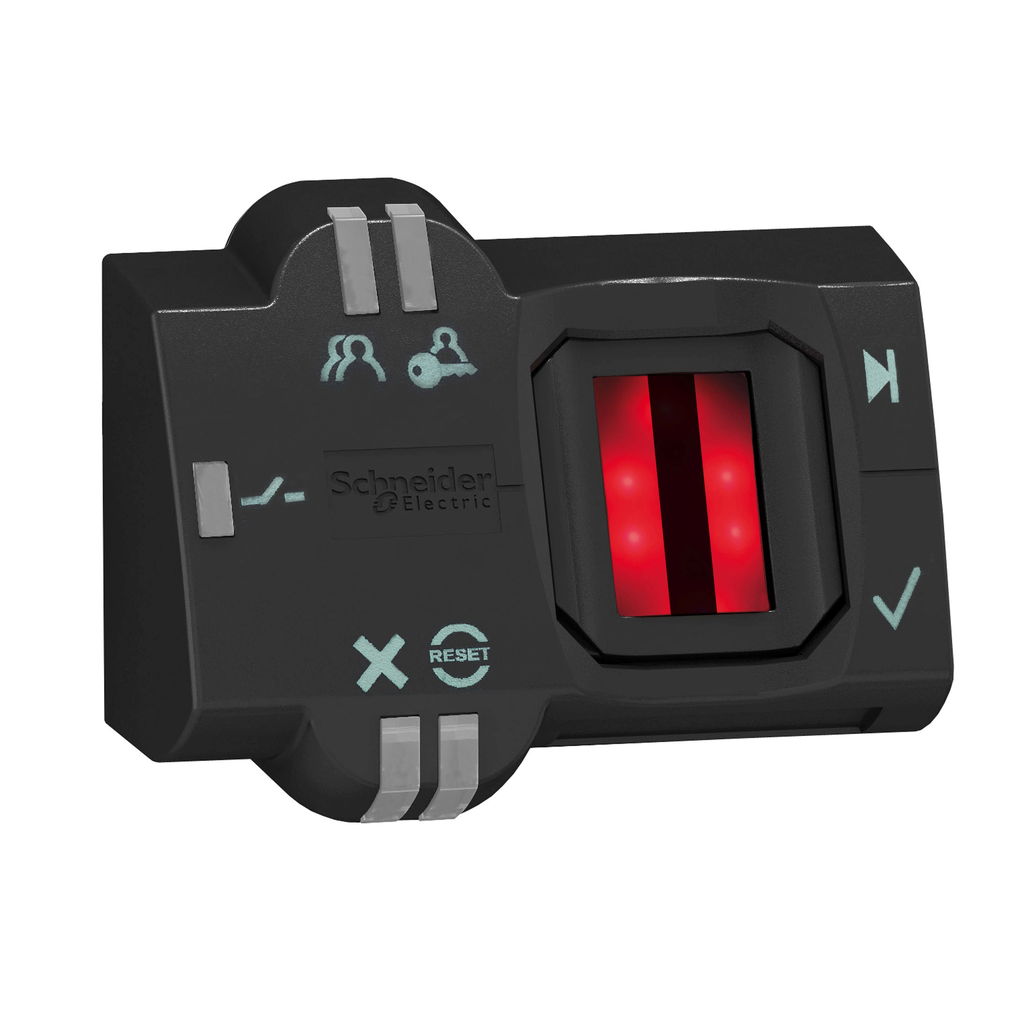

XB5S1B2M12 - Biometric switch bistable, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

XB5S1B2M12

Biometric switch bistable, Harmony XB5S, plastic, 22mm, connection by M12 connector, 24V AC DC

This Harmony XB5, bistable biometric switch has a M12 connectoris supplied with 24V DC. This biometric switch allows control of authorization to access areas, machine commands and functions without the use of easy-to-lose keys. It has a high detection reliability with minimal false positive detections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It is easily installed into standard 22mm diameter cut-outs. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Mounting Diameter	22 mm
Product Or Component Type	biometric switch
Ip Degree Of Protection	IP20 EN/IEC 60529 rear face) IP65 EN/IEC 60529 front face)
Sale Per Indivisible Quantity	1
Bezel Material	dark grey plastic
Operator Profile	fingerprint reader
Product Specific Application	materials handling industrial machines
Operator Position Information	2 positions
Type Of Operator	stay put
Output Type	PNP
Memory Usage	200 users with up to 2 fingerprints per user
Device Short Name	XB5S
Warranty	18 months
Current Consumption	<= 70 mA no-load
Electrical Connection	M12 connector 0.2 m
Maximum Delay Response	1.5 s
Short-Circuit Protection	250 mA external fuse gG
Cable Insulation Material	PvR
Maximum Switching Current	200 mA
Marking	CE
Net Weight	0.183 kg
[Us] Rated Supply Voltage	24 V DC
Maximum Delay Recovery	1.5 s
Supply Voltage Limits	20-30 V DC
Local Signalling	for output state indicator 1 LED (green) for administrator's registration mode 1 LED (orange) for operator's registration mode 1 LED (orange) for error 1 LED (red) for reset 1 LED (red)
Operating Position	horizontal position vertical surface installation flat surface installation
Protection Type	reverse polarity overload protection short-circuit
Enclosure Material	polyamide PA66
Function Of Module	bi-stable
[Ures] Residual Voltage	1 V closed state
Maximum Delay First Up	3 s + 0.5 ms per user registered
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP081202-EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	CSA UL
Ambient Air Temperature For Operation	-5-50 °C
Range Of Product	Harmony XB5S
Standards	IEC 61000-6-4 IEC 61000-6-2
Shock Resistance	50 gn 11 ms IEC 60068-2-27
Vibration Resistance	+/- 3 mm 5-9 Hz)IEC 60068-2-6 1 gn 9-500 Hz)IEC 60068-2-6
Ambient Air Temperature For Storage	-25-70 °C
Nema Degree Of Protection	NEMA 12
