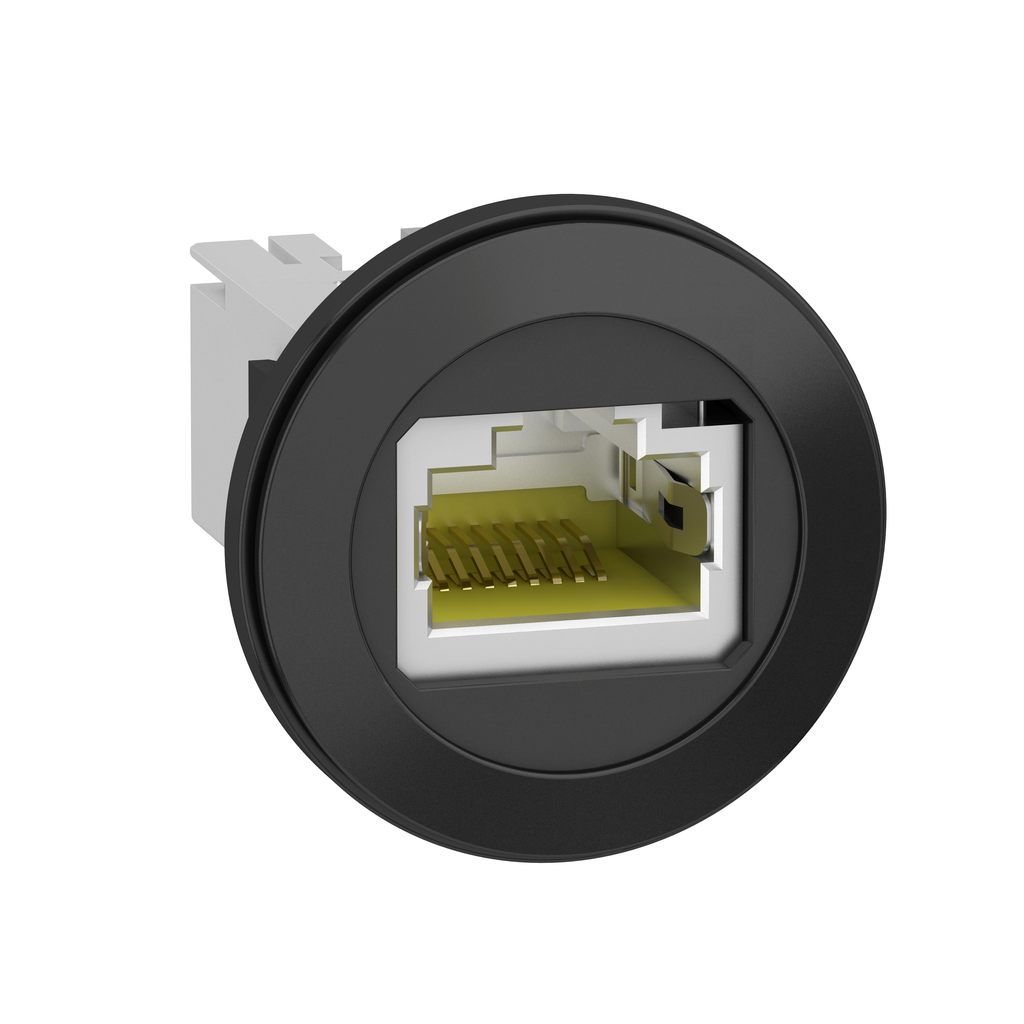

XB5PRJ45
Panel mounted RJ45 port, Harmony XB5, plastic, 22mm, for ethernet interface, RJ45 jack
This Harmony XB5, panel mounted RJ45 port enables connection to your machine of various devices. This panel mounted RJ45 communication port provides a simple way to connect to your machine through standardized connectors, without opening the control cabinet door. It is easily installed into standard 22mm diameter cut-outs. It provides an easily and safely access to your machine automation and controllers via a port on the door of the control cabinet.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB5 |
|---|---|
| Product Or Component Type | panel mounted RJ45 port |
| Device Short Name | XB5P |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -40-70 °C |
| Height | 28 mm |
| Standards | IEC 60603-7 |
| Mounting Diameter | 22 mm |
| Thickness |
|
| Vibration Resistance | 5 gn 10-500 Hz) IEC 60068-2-6 |
| Net Weight | 0.0266 kg |
| Fixing Collar Material | plastic |
| Sale Per Indivisible Quantity | 1 |
| Integrated Connection Type | RJ45 Ethernet 10 Gbit/s |
| Ambient Air Temperature For Storage | -40-70 °C |
| Bezel Material | plastic |
| Tightening Torque | 1.5 N.m |
| Ip Degree Of Protection |
|
| Minimum Number Of Matings | 750 cycles |
| Width | 28 mm |
| Depth | 36 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
