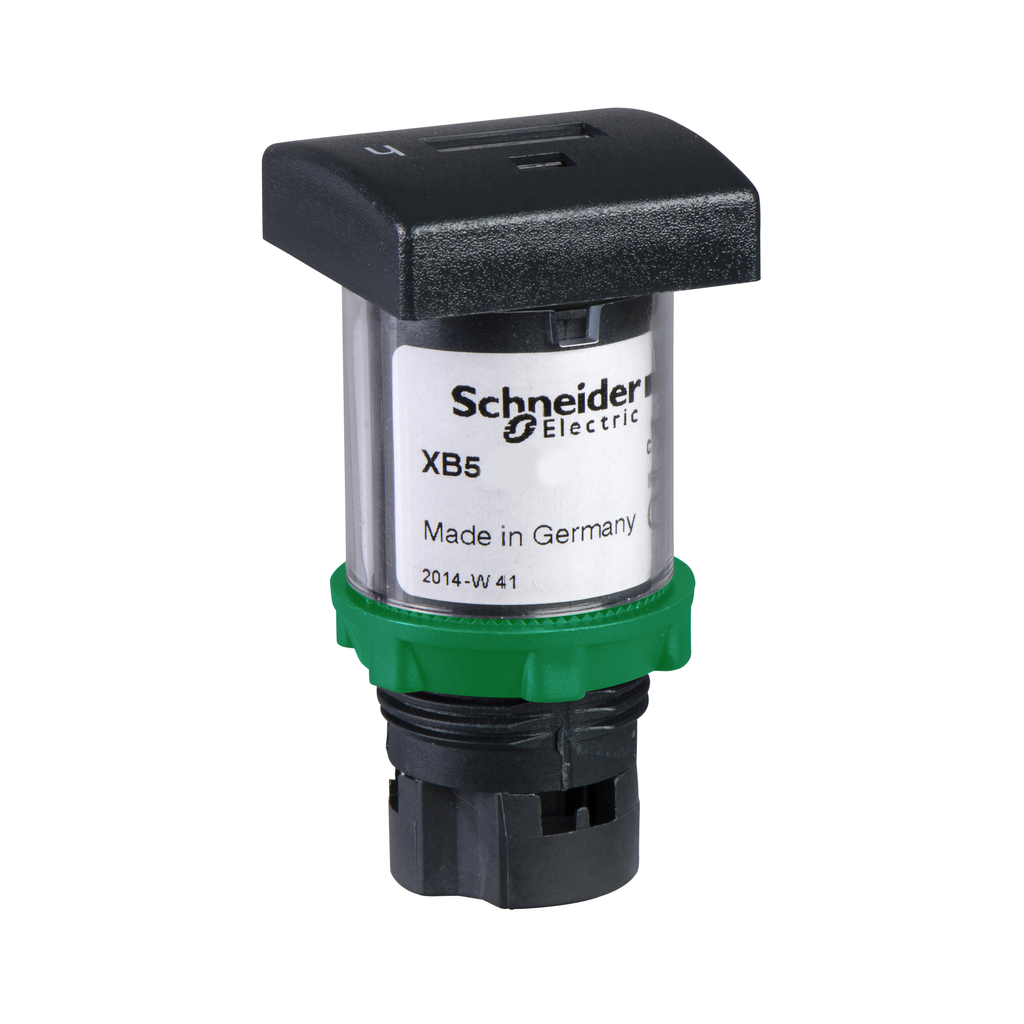

XB5DSB
Hour counter, Harmony XB5, plastic, 22mm, mechanical 5 digit display, 12...24V AC DC
This Harmony XB5, hour counter has 5 display digits and is supplied with 12V to 24V AC/DC. This hour counter provides a visual indicator on the number of hours operated of your installation. It is easily installed into standard 22mm diameter cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Reset | without |
|---|---|
| Range Of Product | Harmony XB5 |
| Mounting Diameter | 22 mm |
| Product Or Component Type | hour counter |
| Bezel Material | dark grey plastic |
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 12...24 V +/- 10 % |
| Height | 30 mm |
| Mounting Support | panel mounting |
| Display Digits | 5 |
| Net Weight | 0.045 kg |
| Current Consumption | 7...15 mA |
| Device Presentation | monolithic product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Mounting Mode | flush-mounted |
| Width | 30 mm |
| Depth | 60 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards | EN 60947-5-1 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Nema Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
