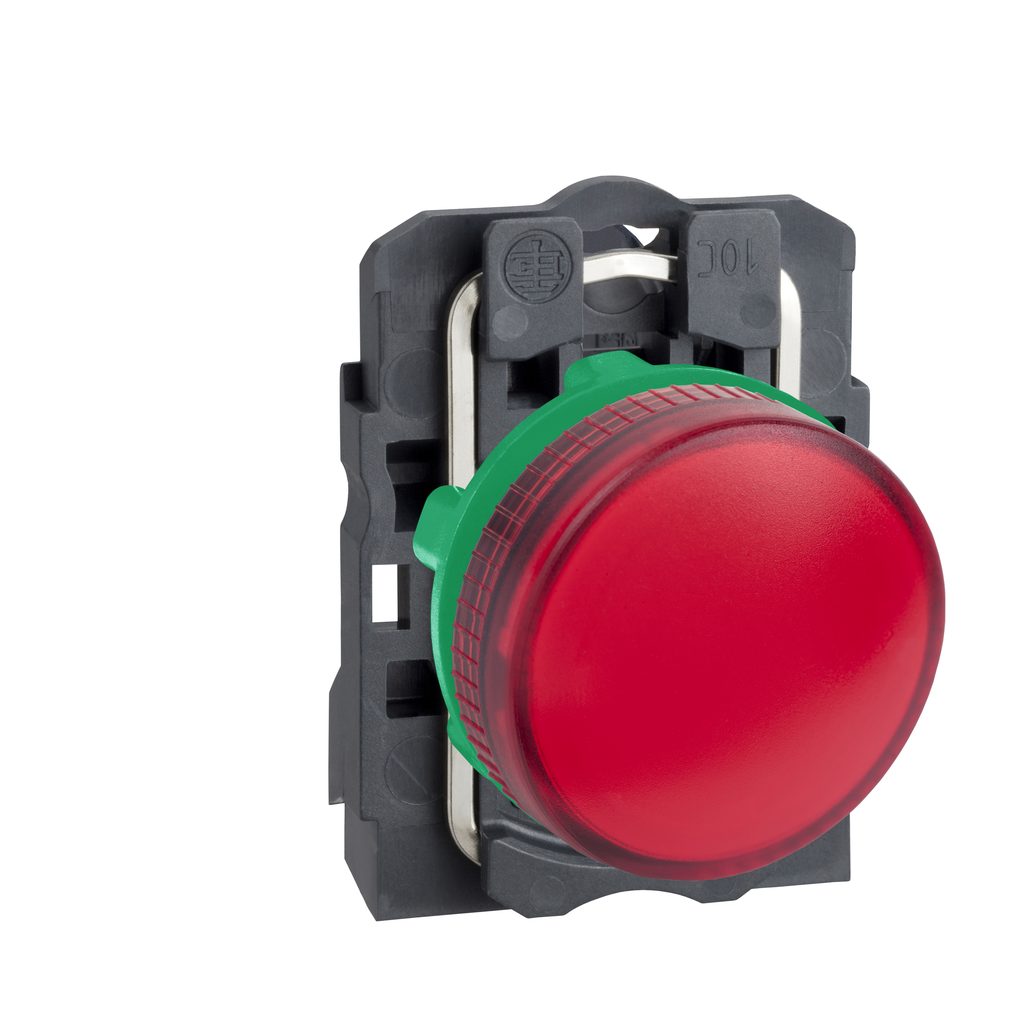

Pilot light, Harmony XB5, plastic, red, 22mm, plain lens for BA9s bulb, lt 250V
This Harmony XB5, plain lens modular red pilot light does not include bulb and is supplied with 250V AC, uses BA9s base and has screw-clamp terminals. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | <= 250 V |
|---|---|
| Operator Additional Information | with plain lens |
| Range Of Product | Harmony XB5 |
| Light Source | bulb not included |
| Light Block Supply | direct <2.4 W |
| Mounting Diameter | 22 mm |
| Product Or Component Type | pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | red |
| Fixing Collar Material | plastic |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | dark grey plastic |
| Light Source Colour | red |
| Device Short Name | XB5 |
| Bulb Base | BA 9s |
| Warranty | 18 months |
| Height | 42 mm |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Net Weight | 0.037 kg |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
| Signalling Type | steady |
| Width | 30 mm |
| Depth | 55 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK05 IEC 50102 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 60536 |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
