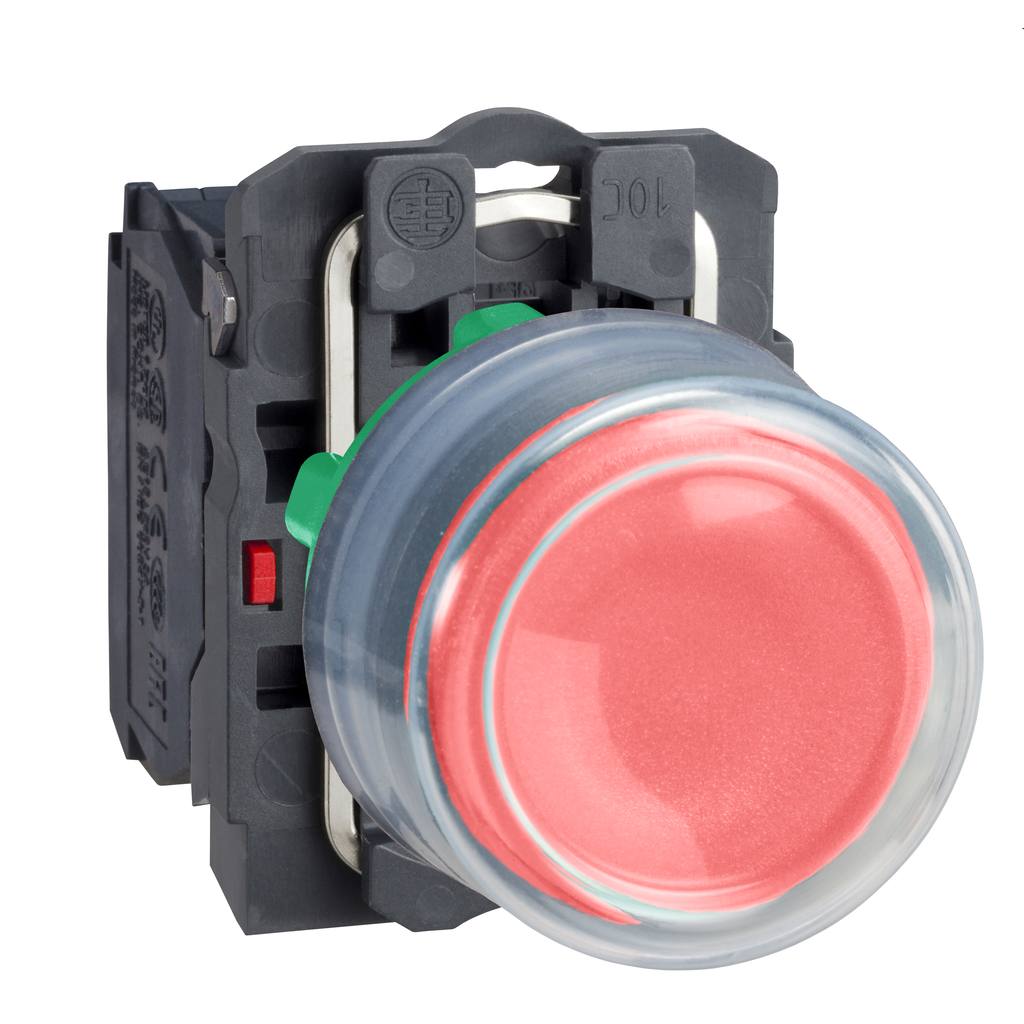

This Harmony XB5, clear silicone booted modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This silicone booted push button provides a simple solution to comply with hygiene requirement in food, beverage industries as well as healthcare and pharmaceuticals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | clear boot |
---|---|
Range Of Product | Harmony XB5 |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | push-button |
Shape Of Signaling Unit Head | round |
Fixing Collar Material | plastic |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 1 NC |
Sale Per Indivisible Quantity | 1 |
Bezel Material |
|
Contact Operation | slow-break |
Operator Profile | red projecting, unmarked |
Product Compatibility | not compatible with legend holder |
Device Short Name | XB5 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Height | 42 mm |
Terminals Description Iso N°1 | (21-22)NC |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Force | 3.5 N NC changing electrical state |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Customizable | 0 |
Net Weight | 0.039 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
[Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
[Ie] Rated Operational Current |
|
Electrical Durability |
|
Mechanical Durability | 10000000 cycles |
Compatibility Code | XB5 |
Customizable | no |
Electrical Reliability |
|
Width | 30 mm |
Depth | 61 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
