Manual overload reset push button, Harmony XB5, red projecting, 22mm, for 17...120 mm actuation distance

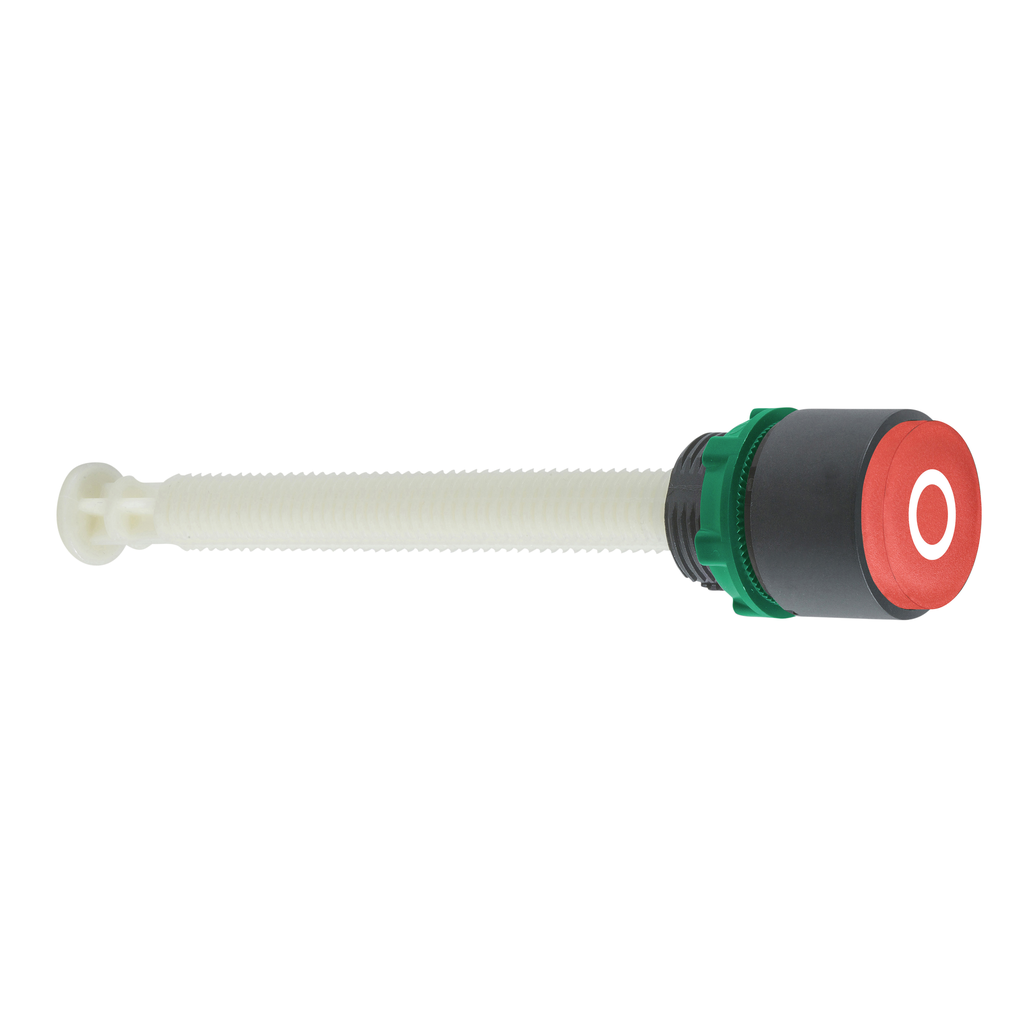

This Harmony XB5, projecting manual overload reset pushbutton is red. It has a round shape and a plastic bezel. It is marked with "O" symbol. This complete manual overload reset pushbutton provides an ergonomic interface for controlling your machines thanks to its projecting push head. It provides a robust and precise control when it is required to reset your machines and processes. It is easily installed into standard 22mm diameter panel cut-outs. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. It is ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB5 |
|---|---|
| Activating Distance | 17-120 mm |
| Mounting Diameter | 22 mm |
| Product Or Component Type | manual overload reset push-button |
| Shape Of Signaling Unit Head | round |
| Fixing Collar Material | plastic |
| Head Type | standard |
| Device Presentation | complete product |
| Bezel Material | dark grey plastic |
| Operator Profile | red projecting, O white) |
| Device Short Name | XB5 |
| Warranty | 18 months |
| Height | 29 mm |
| Operating Travel | 10 mm |
| Net Weight | 0.027 kg |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Width | 29 mm |
| Depth | 120 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1710010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1710010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications | UL Listed |
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards | EN/IEC 60947-1 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | NEMA 4X |
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
