XB5AL73415 – Double-headed push button, Harmony XB5, plastic, 22mm, 1 green flush marked I 1 red projecting marked O, 1NO 1NC
XB5AL73415

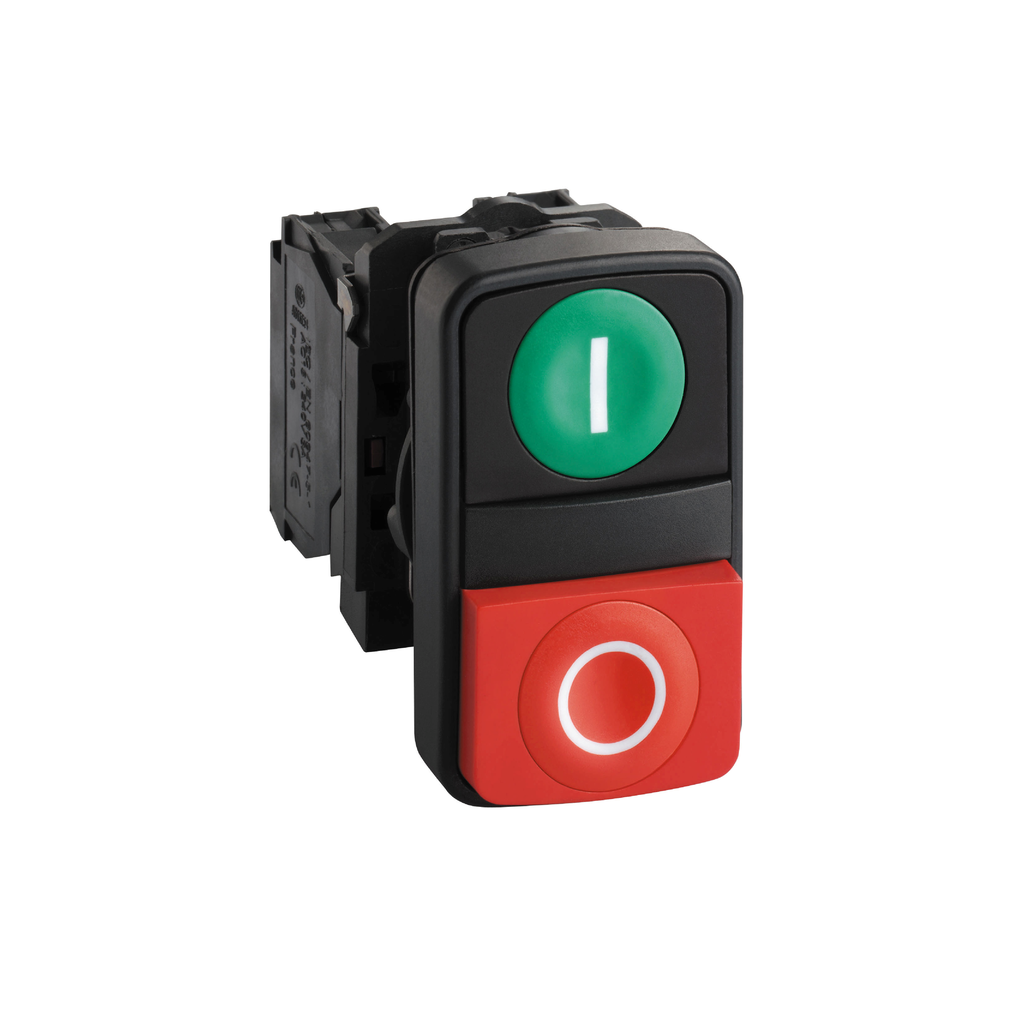

Double-headed push button, Harmony XB5, plastic, 22mm, 1 green flush marked I + 1 red projecting marked O, 1NO+1NC

This Harmony XB5, double-headed modular push button has 1 red and 1 green button, operates with a spring return mechanism and uses screw clamp terminals. It is marked with "I" and "O" symbols. This double-headed push button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony XB5
Mounting Diameter 22 mm
Type Of Operator spring return
Operators Description green ''I'' - red ''O''
Product Or Component Type double-headed push-button
Shape Of Signaling Unit Head rectangular
Fixing Collar Material plastic
Operator Profile 1 flush - 1 projecting push-buttons
Head Type standard
Device Presentation complete product
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
  • spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Bezel Material dark grey plastic
Contact Operation slow-break
Device Short Name XB5
Warranty 18 months
Contacts Usage standard contacts
Height 50 mm
Terminals Description Iso N°1
  • (21-22)NC
  • (13-14)NO
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Colour Of Marking
  • white marking when green, red or black caps
  • black marking when white caps
Net Weight 0.053 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Durability
  • 1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Operator Profile
  • green flush, I white)
  • red projecting, O white)
Mechanical Durability 1000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4
  • λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Width 30 mm
Depth 59 mm
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross JIS No 1
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1710010EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1710010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CSA
  • GL
  • UL Listed
  • LROS (Lloyds register of shipping)
  • DNV
  • BV
Ik Degree Of Protection IK03 IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • EN/IEC 60947-5-4
  • JIS C8201-5-1
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • EN/IEC 60947-1
  • UL 508
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP67 IEC 60529
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class II IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Protective Treatment TH
