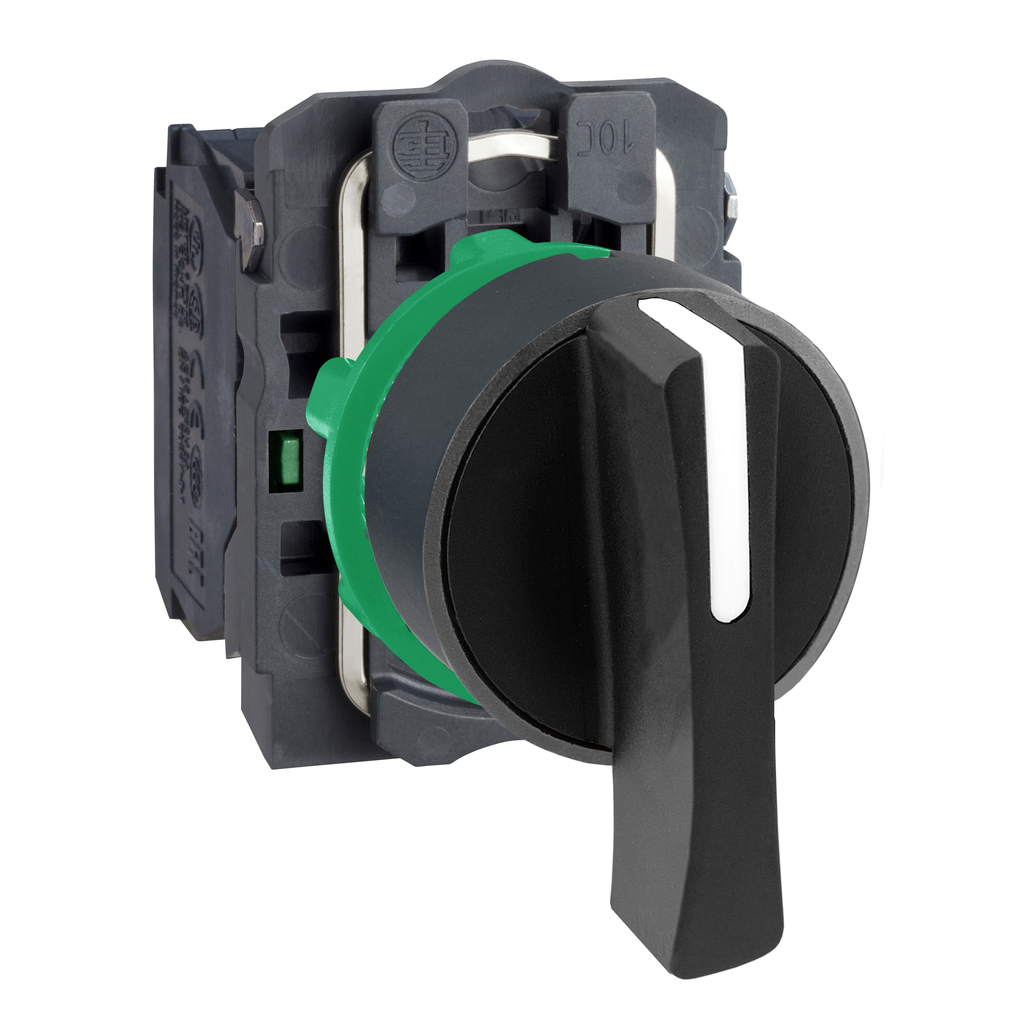

This Harmony XB5, long handle modular black selector switch has 3 positions, operates with a spring-return-to-center mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an comfortable manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Mounting Diameter | 22 mm |
Type Of Operator | to centre spring return |
Product Or Component Type | selector switch |
Shape Of Signaling Unit Head | round |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 2 NO |
Sale Per Indivisible Quantity | 1 |
Bezel Material | dark grey plastic |
Contact Operation | slow-break |
Operator Profile | black long handle |
Operator Position Information | 3 positions +/- 45° |
Device Short Name | XB5 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Height | 48 mm |
Terminals Description Iso N°1 | (13-14)NO |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | without |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.053 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
[Ie] Rated Operational Current |
|
Mechanical Durability | 1000000 cycles |
Torque Value | 0.14 N.m NO changing electrical state |
Electrical Reliability |
|
Width | 30 mm |
Depth | 70 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class II IEC 60536 |
Protective Treatment | TH |
