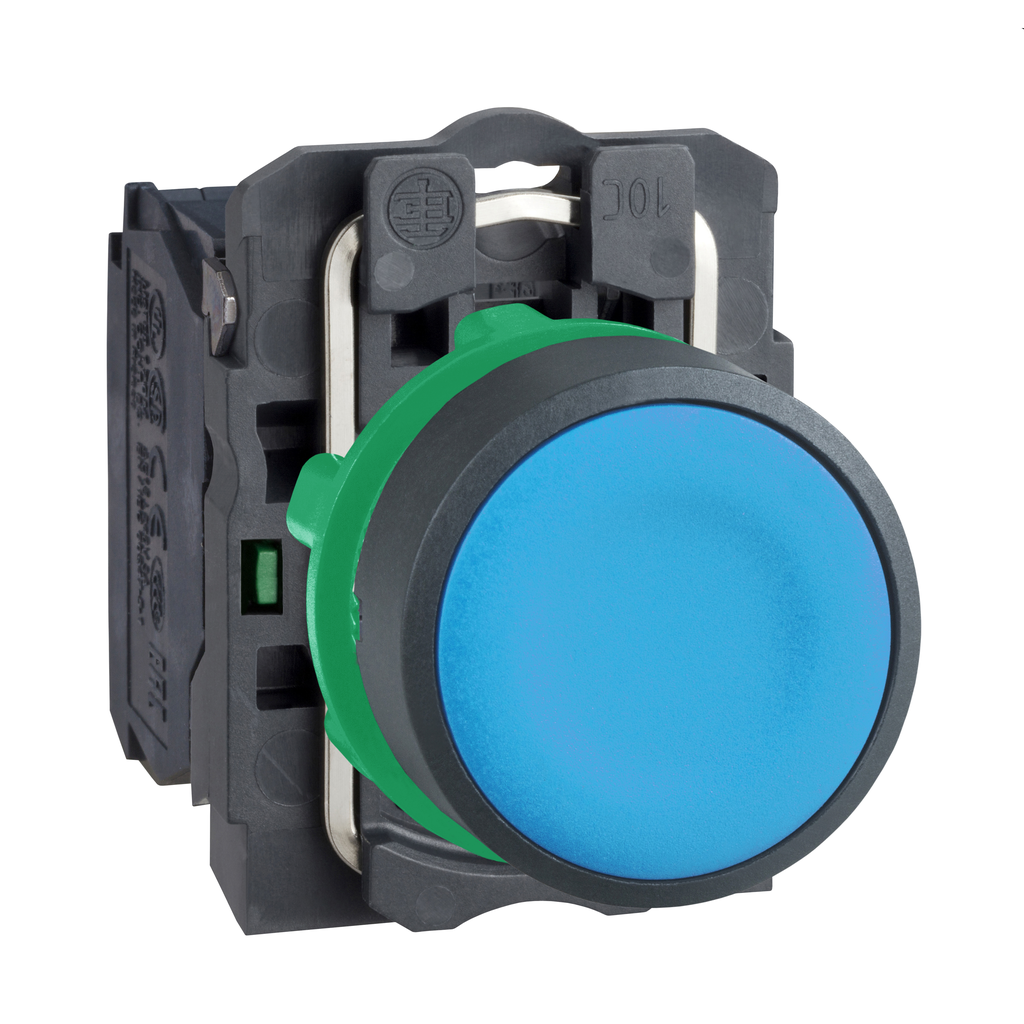

This Harmony XB5, modular blue push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB5 |
---|---|
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | push-button |
Shape Of Signaling Unit Head | round |
Fixing Collar Material | plastic |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 1 NO |
Sale Per Indivisible Quantity | 1 |
Bezel Material |
|
Contact Operation | slow-break |
Operator Profile | blue flush, unmarked |
Device Short Name | XB5 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Height | 42 mm |
Terminals Description Iso N°1 | (13-14)NO |
Operating Force | 3.8 N NO changing electrical state |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | without |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Customizable | 1 |
Net Weight | 0.037 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Gcr Bridge | XB5AACUST01 |
[Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
[Ie] Rated Operational Current |
|
Electrical Durability |
|
Mechanical Durability | 10000000 cycles |
Compatibility Code | XB5 |
Customizable | no |
Electrical Reliability |
|
Width | 30 mm |
Depth | 52 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1710010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1710010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
