XB5AA4322 - Push button, Harmony XB5, plastic, flush, red, 22mm, spring return, marked O, 1NC

XB5AA4322

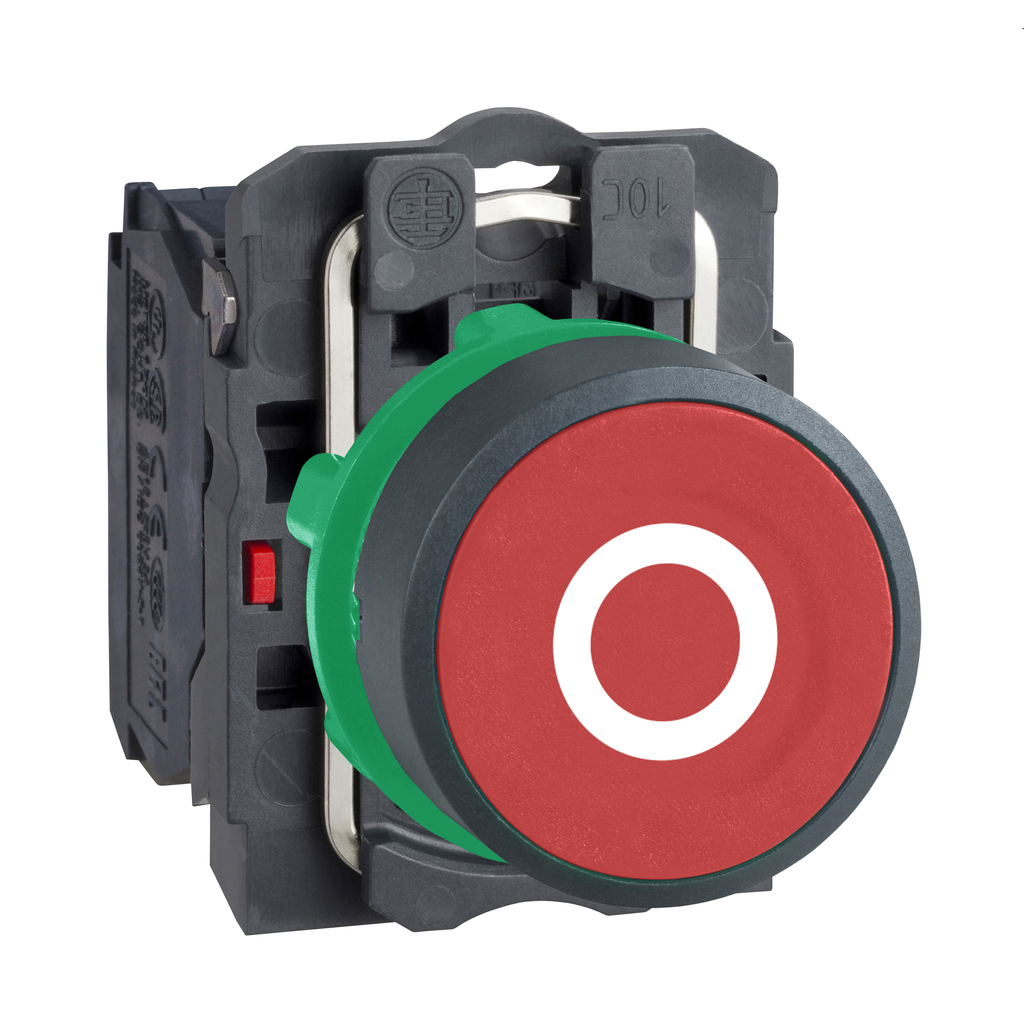

Push button, Harmony XB5, plastic, flush, red, 22mm, spring return, marked O, 1NC

This Harmony XB5, modular red push button operates with a spring return / impulse mechanism and uses screw clamp terminals. It is marked with a "O" symbol. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Harmony XB5
Mounting Diameter	22 mm
Type Of Operator	spring return
Product Or Component Type	push-button
Shape Of Signaling Unit Head	round
Fixing Collar Material	plastic
Head Type	standard
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
Contacts Type And Composition	1 NC
Sale Per Indivisible Quantity	1
Bezel Material	plastic dark grey plastic
Contact Operation	slow-break
Operator Profile	red flush, O white)
Device Short Name	XB5
Warranty	18 months
Contacts Usage	standard contacts
Height	42 mm
Terminals Description Iso N°1	(21-22)NC
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force	3.5 N NC changing electrical state
Operating Travel	1.5 mm NC changing electrical state) 4.3 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	with EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Customizable	0
Net Weight	0.037 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Device Presentation	complete product
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
[Ui] Rated Insulation Voltage	600 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Durability	1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Mechanical Durability	10000000 cycles
Compatibility Code	XB5
Customizable	no
Electrical Reliability	λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4 λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Width	30 mm
Depth	52 mm
Tightening Torque	0.8-1.2 N.m EN 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1710010EN
Sustainable Offer Status	Green Premium product
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1710010EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	BV UL Listed LROS (Lloyds register of shipping) CSA DNV GL RINA
Ik Degree Of Protection	IK03 IEC 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	UL 508 EN/IEC 60947-5-1 CSA C22.2 No 14 EN/IEC 60947-5-4 JIS C8201-5-1 EN/IEC 60947-1 JIS C8201-1
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IP69 IP69K
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536
Nema Degree Of Protection	NEMA 13 NEMA 4X
Protective Treatment	TH
