XB4RFB01
Wireless and batteryless package, Harmony XB5R, Wireless metal 22mm black pushbutton, non configurable receiver, 24V DC

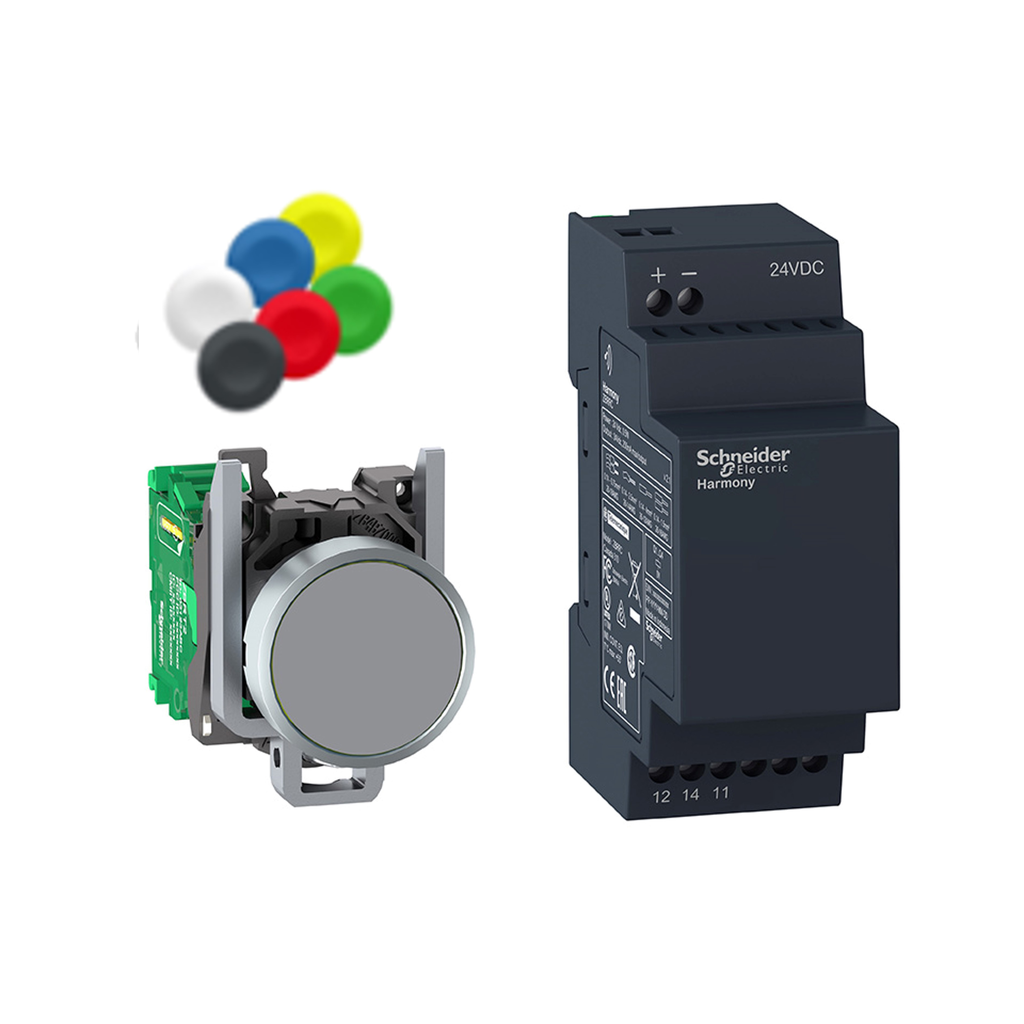

This ready-to-use pack is part of the range diameter 22mm wireless and batteryless pushbuttons XB4R metal. This pack comprises one wireless and batteryless metallic pushbutton assembled on fixing collar and one receiver. Pushbutton and receiver are factory-paired. The wireless and batteryless pushbutton reduces installation time and cost by eliminating wiring and associated equipment between the transmitters and the control panel. This technology also allows an operator to be mobile or have a control mounted on-board of a vehicle (trolley, truck, etc.). The pushbutton is always available and requires no maintenance (no battery needed).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Antenna Type | omnidirectional |
|---|---|
| Range Of Product | Harmony XB4R |
| Product Or Component Type | wireless and batteryless package |
| Head Material | metal |
| Level Or Class | 5M00G7W |
| Device Short Name | XB4R |
| Transmission Frequency |
|
| Warranty | 18 months |
| [Us] Rated Supply Voltage | 24 V |
| [Us] Rated Supply Voltage | 24 V DC |
| Control Type | wireless and batteryless push-button Ø 22 mm assembled on fixing collar |
| Modulation Technique | O-QPSK |
| Kit Composition |
|
| Communication Port Protocol | Zigbee IEEE 802.15.4 |
| Antenna Gain | 0 dBi |
| Max Power Consumption In W | 1 mW |
| Number Of Channels | 1 |
| Type Of Receiver | non-programmable receiver 1 relay) |
| Compatibility Code | XB4R |
| Customizable | no |
| Bandwidth | 5-5 MHz |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Standards |
|
| Marking | CE |
| Radio Agreement |
|
