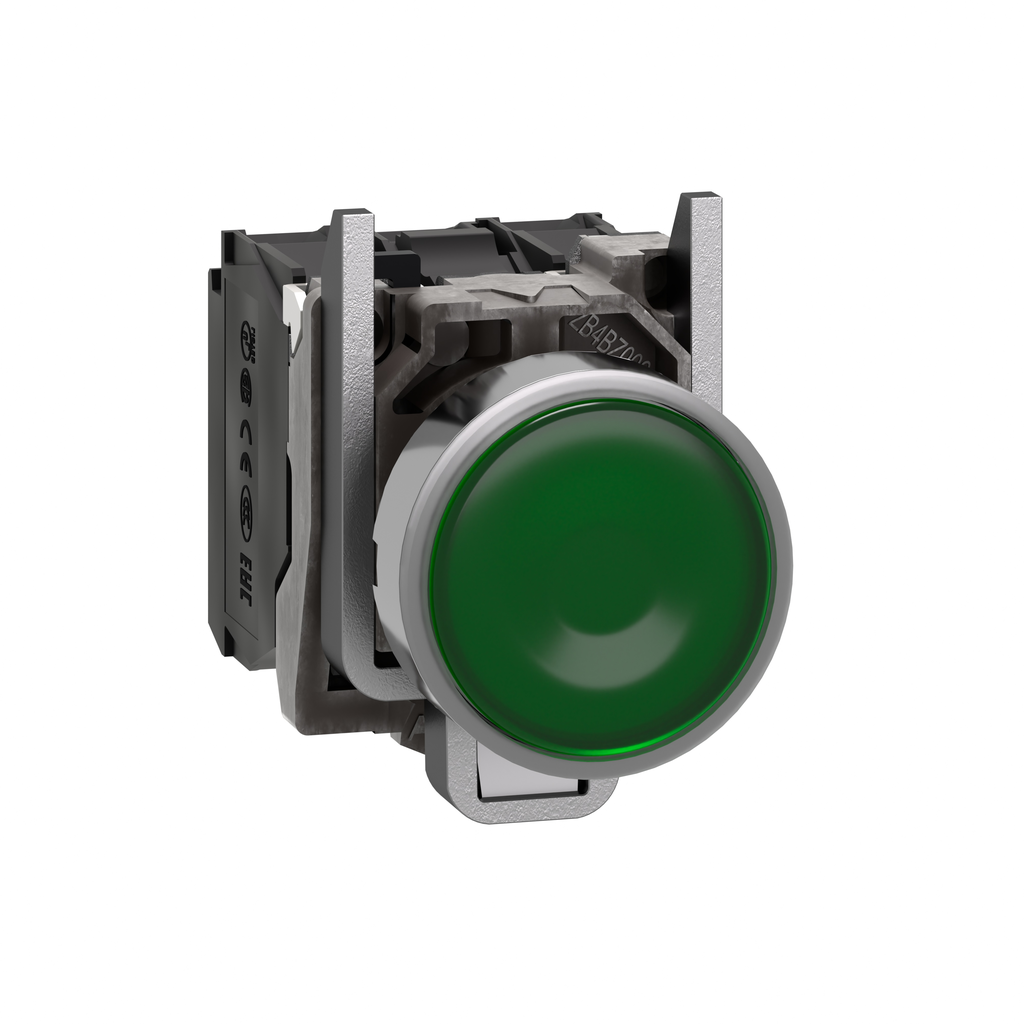

This Harmony XB4 illuminated modular green push button operates with a spring return mechanism, is supplied with 110V to 120V AC, uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | with plain lens |
---|---|
Range Of Product | Harmony XB4 |
Light Source | universal LED |
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Product Or Component Type | illuminated push-button |
Shape Of Signaling Unit Head | round |
Fixing Collar Material | zamak |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 1 NO + 1 NC |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Contact Operation | slow-break |
Operator Profile | green flush |
Device Short Name | XB4 |
[Us] Rated Supply Voltage | 110...120 V AC 50/60 Hz |
Bulb Base | integral LED |
Warranty | 18 months |
Contacts Usage | standard contacts |
Height | 47 mm |
Terminals Description Iso N°1 |
|
Operating Force |
|
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.097 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
Current Consumption | 14 mA |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
Service Life | 100000 h at rated voltage and 25 °C |
Surge Withstand | 1 kV IEC 61000-4-5 |
[Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
Signalling Type | steady |
[Ie] Rated Operational Current |
|
Supply Voltage Limits | 100-132 V AC |
Mechanical Durability | 10000000 cycles |
Electrical Reliability |
|
Width | 30 mm |
Depth | 57 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Resistance To Electrostatic Discharge |
|
Electrical Shock Protection Class | class I IEC 60536 |
Protective Treatment | TH |
Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
Electromagnetic Emission | class B IEC 55011 |
