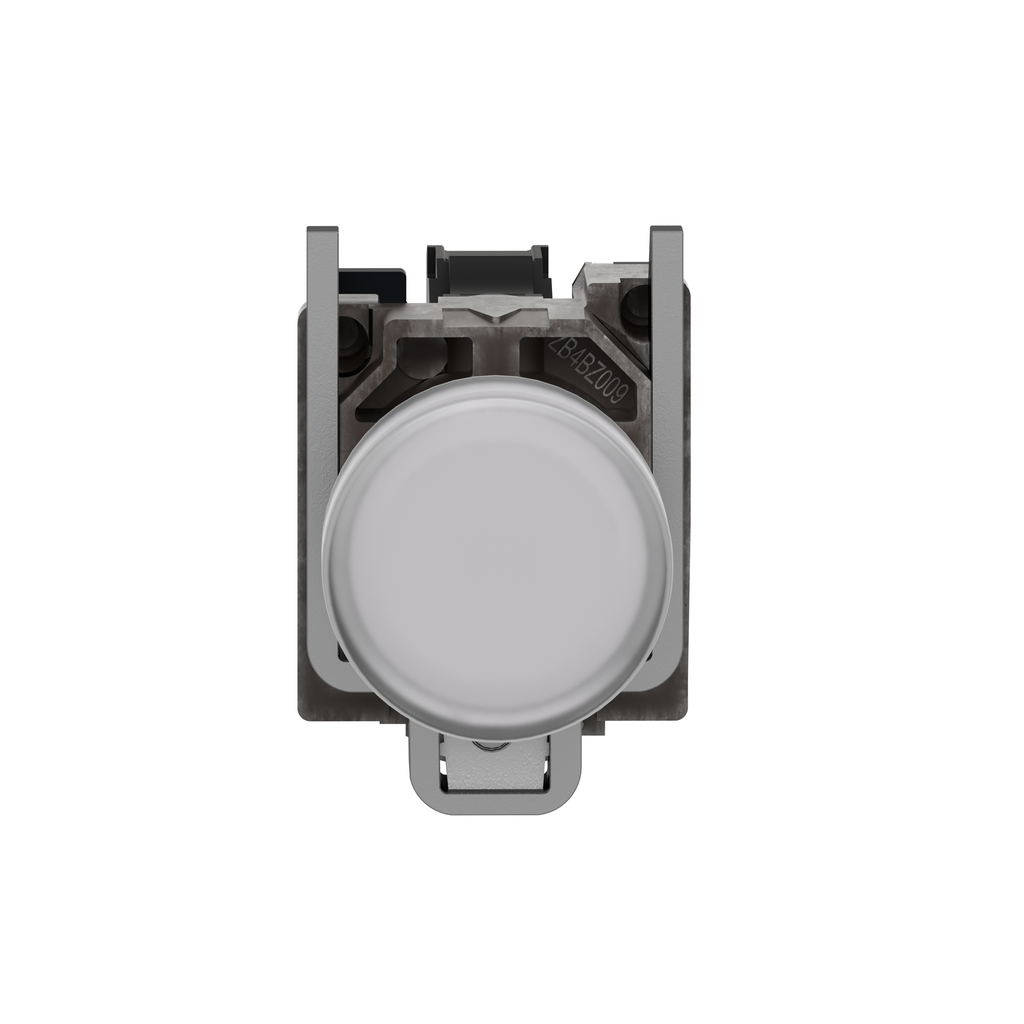

This Harmony XB4 plain lens modular white pilot light is supplied with 250V AC/DC, uses BA9s base. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueOperator Additional Information | with plain lens |
---|---|
Range Of Product | Harmony XB4 |
Light Source | bulb not included |
Light Block Supply | direct <2.4 W |
Mounting Diameter | 22 mm |
Product Or Component Type | pilot light |
Shape Of Signaling Unit Head | round |
Cap/Operator Or Lens Colour | white |
Fixing Collar Material | zamak |
Head Type | standard |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Device Short Name | XB4 |
[Us] Rated Supply Voltage | <= 250 V |
Bulb Base | BA 9s |
Warranty | 18 months |
Height | 47 mm |
Terminals Description Iso N°1 | (X1-X2)PL |
Net Weight | 0.075 kg |
[Uimp] Rated Impulse Withstand Voltage | 4 kV EN 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Connections - Terminals |
|
[Ui] Rated Insulation Voltage | 250 V 3)EN 60947-1 |
Signalling Type | steady |
Width | 30 mm |
Depth | 55 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2202026 |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2202026 |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -40-55 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class I IEC 60536 |
Protective Treatment | TH |
