XB4BV35

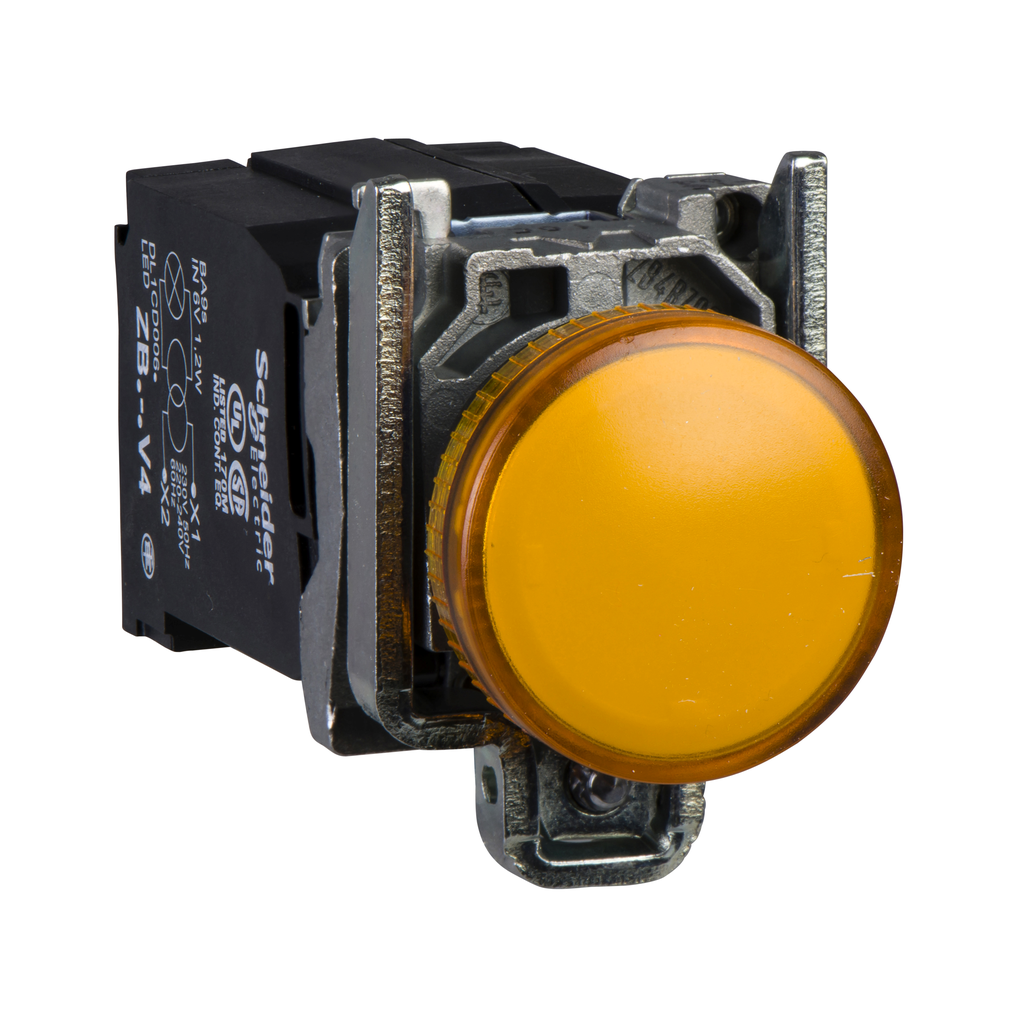

Pilot light, Harmony XB4, incandescent light, orange, 22mm, with plain lens, BA9s bulb, 110…120V
This Harmony XB4 plain lens modular orange pilot light is supplied with 110V to 120V AC/DC, uses BA9s base. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indicator of process and machine operations, is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting BA9s base illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Operator Additional Information | with plain lens |
|---|---|
| Range Of Product | Harmony XB4 |
| Light Source | incandescent |
| Light Block Supply | via integral transformer 1.2 VA 6 V |
| Mounting Diameter | 22 mm |
| Product Or Component Type | pilot light |
| Shape Of Signaling Unit Head | round |
| Cap/Operator Or Lens Colour | orange |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Device Short Name | XB4 |
| [Us] Rated Supply Voltage | 110...120 V AC 50/60 Hz |
| Bulb Base | BA 9s |
| Warranty | 18 months |
| Height | 47 mm |
| Terminals Description Iso N°1 | (X1-X2)PL |
| Net Weight | 0.152 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| Signalling Type | steady |
| Width | 30 mm |
| Depth | 78 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2202026 |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI2202026 |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK06 IEC 50102 |
| Ambient Air Temperature For Operation | -40-55 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
