Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.
Brand: Schneider Electric
Add to Quote CatalogueReset | turn to release |
---|---|
Range Of Product | Harmony XB4 |
Mounting Diameter | 22 mm |
Type Of Operator | trigger action and mechanical latching |
Product Or Component Type |
|
Shape Of Signaling Unit Head | round |
Fixing Collar Material | zamak |
Head Type | standard |
Connections - Terminals |
|
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Contact Operation | slow-break |

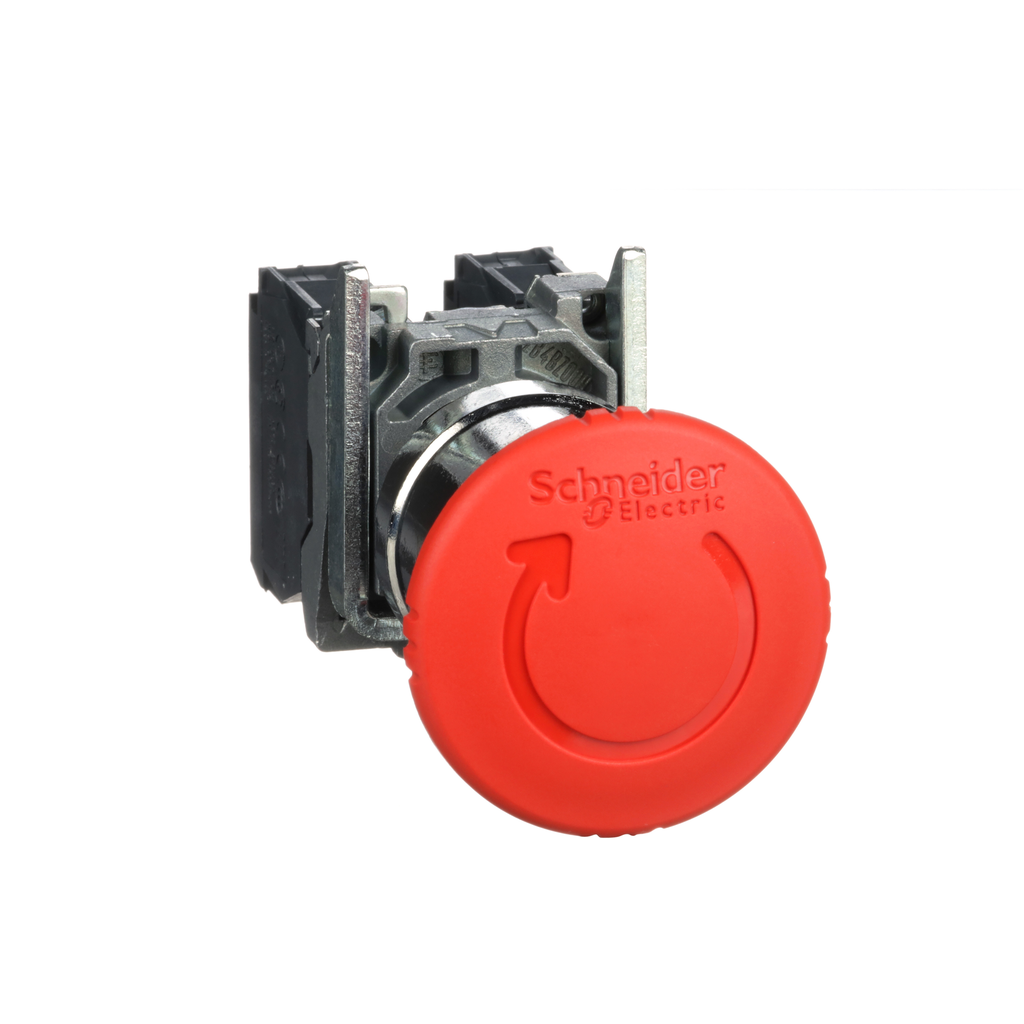

Operator Profile | red mushroom Ø 40 mm, unmarked |
Device Short Name | XB4 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Height | 47 mm |
Terminals Description Iso N°1 | (13-14)NO |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Force | 44 N |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.13 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
[Ie] Rated Operational Current |
|
Mechanical Durability | 300000 cycles |
Electrical Reliability |
|
Width | 40 mm |
Depth | 82 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2201004EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI2201004EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class I IEC 60536 |
Protective Treatment | TH |
