This Harmony XB4 illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 120V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB4 |
---|---|
Light Source | universal LED |
Mounting Diameter | 22 mm |
Type Of Operator | stay put |
Product Or Component Type | illuminated selector switch |
Shape Of Signaling Unit Head | round |
Fixing Collar Material | zamak |
Head Type | standard |
Connections - Terminals |
|

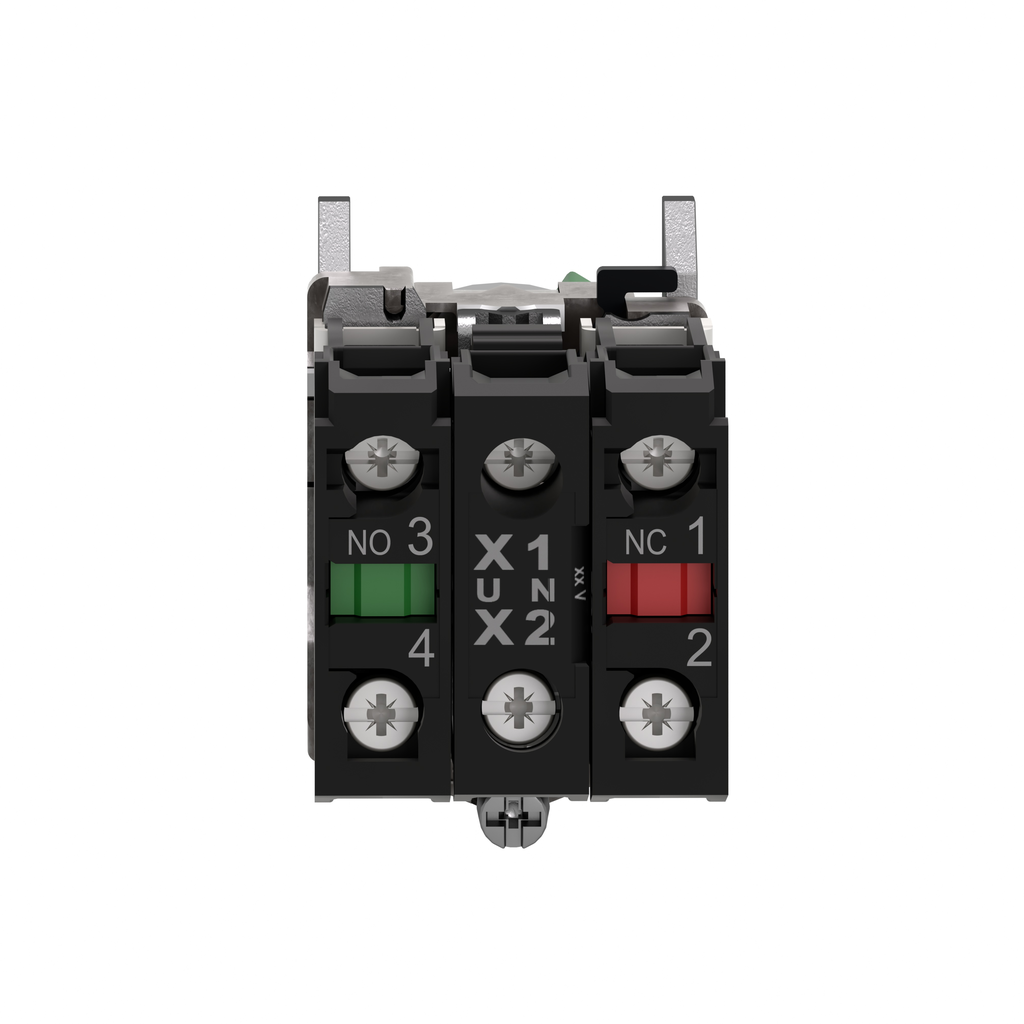

Contacts Type And Composition | 1 NO + 1 NC |
Sale Per Indivisible Quantity | 1 |
Bezel Material | chromium plated metal |
Contact Operation | slow-break |
Operator Profile | green standard handle |
Operator Position Information | 2 positions 90° |
Device Short Name | XB4 |
[Us] Rated Supply Voltage | 110...120 V AC 50/60 Hz |
Bulb Base | integral LED |
Warranty | 18 months |
Contacts Usage | standard contacts |
Height | 47 mm |
Terminals Description Iso N°1 |
|
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Net Weight | 0.111 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Current Consumption | 14 mA |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
Service Life | 100000 h at rated voltage and 25 °C |
Surge Withstand | 1 kV IEC 61000-4-5 |
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
Signalling Type | steady |
Operating Torque | 0.14 N.m NO changing electrical state |
[Ie] Rated Operational Current |
|
Supply Voltage Limits | 100-132 V AC |
Mechanical Durability | 1000000 cycles |
Electrical Reliability |
|
Width | 30 mm |
Depth | 68 mm |
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK04 IEC 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Resistance To Electromagnetic Fields | 10 V/m IEC 61000-4-3 |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Resistance To Electrostatic Discharge |
|
Electrical Shock Protection Class | class I IEC 60536 |
Protective Treatment | TH |
Resistance To Fast Transients | 2 kV IEC 61000-4-4 |
Electromagnetic Emission | class B IEC 55011 |
