XB4BK123B5 – Illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 2 positions, 1NO 1NC, 24V AC DC
XB4BK123B5

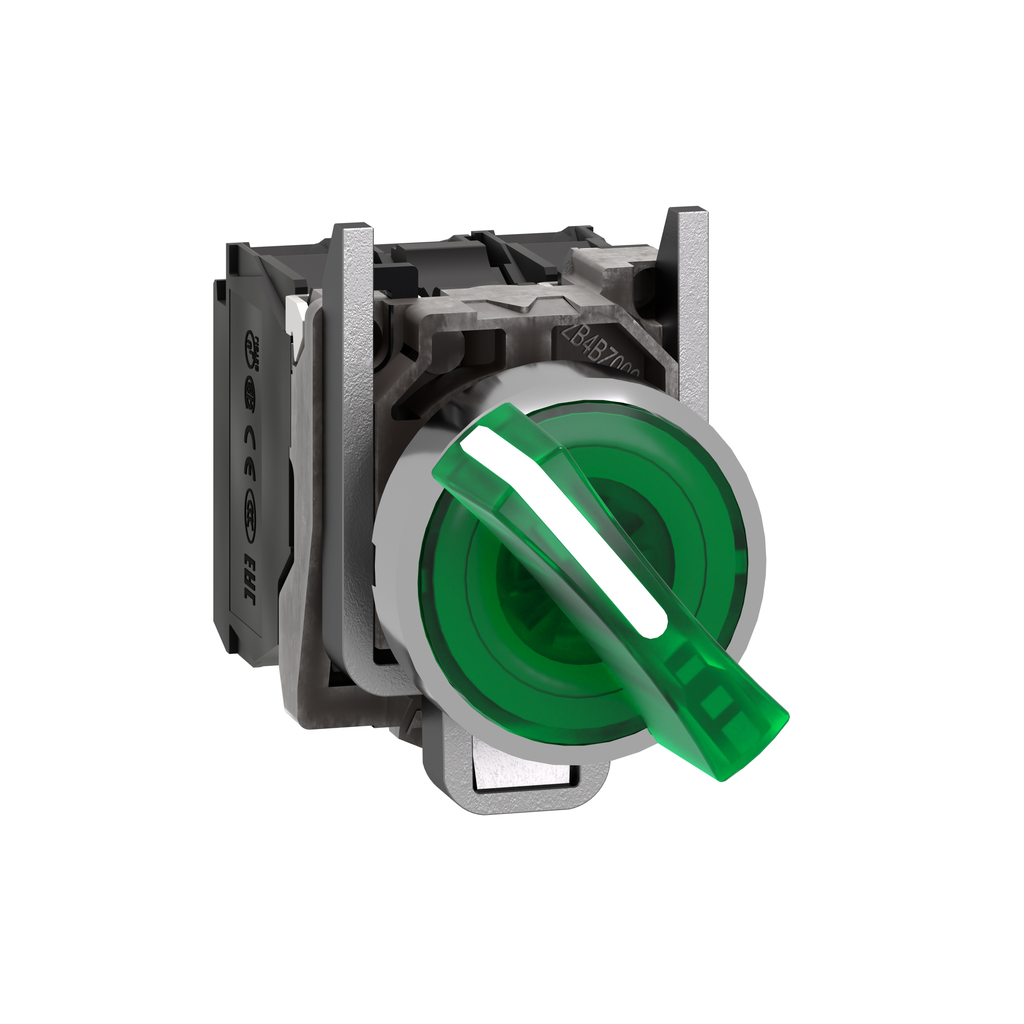

Illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 24V AC DC

This Harmony XB4 illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. It has a metal bezel. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony XB4
Light Source universal LED
Mounting Diameter 22 mm
Type Of Operator stay put
Product Or Component Type illuminated selector switch
Shape Of Signaling Unit Head round
Fixing Collar Material zamak
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Sale Per Indivisible Quantity 1
Bezel Material chromium plated metal
Contact Operation slow-break
Operator Profile green standard handle
Operator Position Information 2 positions 90°
Device Short Name XB4
[Us] Rated Supply Voltage 24 V AC/DC 50/60 Hz
Bulb Base integral LED
Warranty 18 months
Contacts Usage standard contacts
Height 47 mm
Terminals Description Iso N°1
  • (13-14)NO
  • (21-22)NC
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Material silver alloy (Ag/Ni)
Positive Opening with EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Net Weight 0.111 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Current Consumption 18 mA
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
Service Life 100000 h at rated voltage and 25 °C
Surge Withstand 1 kV IEC 61000-4-5
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
Signalling Type steady
Operating Torque 0.14 N.m NO changing electrical state
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Supply Voltage Limits
  • 19.2-30 V DC
  • 21.6-26.4 V AC
Mechanical Durability 1000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Width 30 mm
Depth 68 mm
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • DNV
  • LROS (Lloyds register of shipping)
  • GL
  • BV
  • CSA
  • UL
Ik Degree Of Protection IK04 IEC 50102
Ambient Air Temperature For Operation -40-70 °C
Resistance To Electromagnetic Fields 10 V/m IEC 61000-4-3
Standards
  • EN/IEC 60947-5-4
  • EN/IEC 60947-1
  • UL 508
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • EN/IEC 60947-5-5
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Resistance To Electrostatic Discharge
  • 6 kV on contact (on metal parts) IEC 61000-4-2
  • 8 kV in free air (in insulating parts) IEC 61000-4-2
Electrical Shock Protection Class class I IEC 60536
Protective Treatment TH
Resistance To Fast Transients 2 kV IEC 61000-4-4
Electromagnetic Emission class B IEC 55011
