XB4BA961

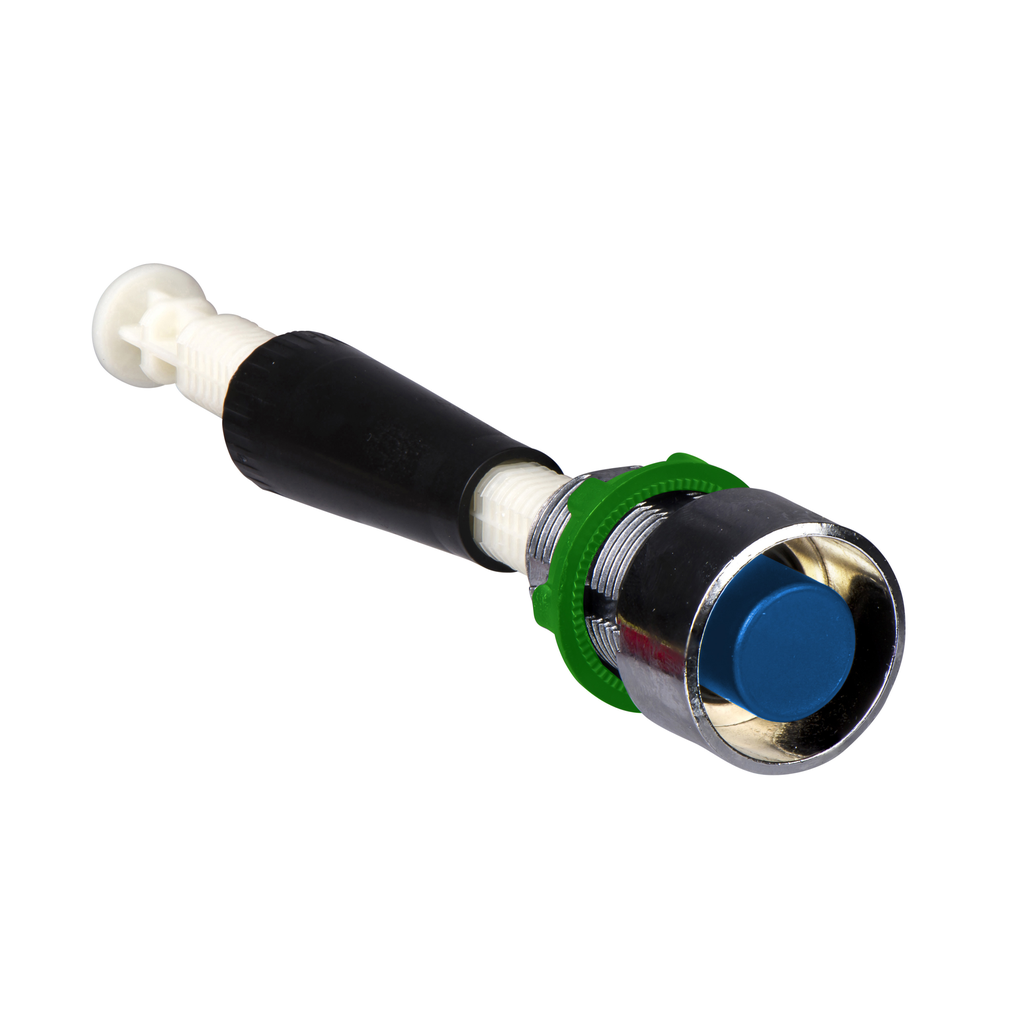

Manual overload reset push button, Harmony XB4, blue flush, 22mm, for 30...130 mm actuation distance
Specifications
| Range Of Product | Harmony XB4 |
|---|---|
| Activating Distance | 30-130 mm |
| Bezel Material | chromium plated metal |
| Operator Profile | blue flush, unmarked |
| Mounting Diameter | 22 mm |
| Product Or Component Type | manual overload reset push-button |
| Device Short Name | XB4 |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Warranty | 18 months |
| Operating Travel | 14 mm |
| Mechanical Durability | 5000000 cycles |
| Shape Of Signaling Unit Head | round |
| Net Weight | 0.058 kg |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP66 IEC 60529 |
