XB4BA922

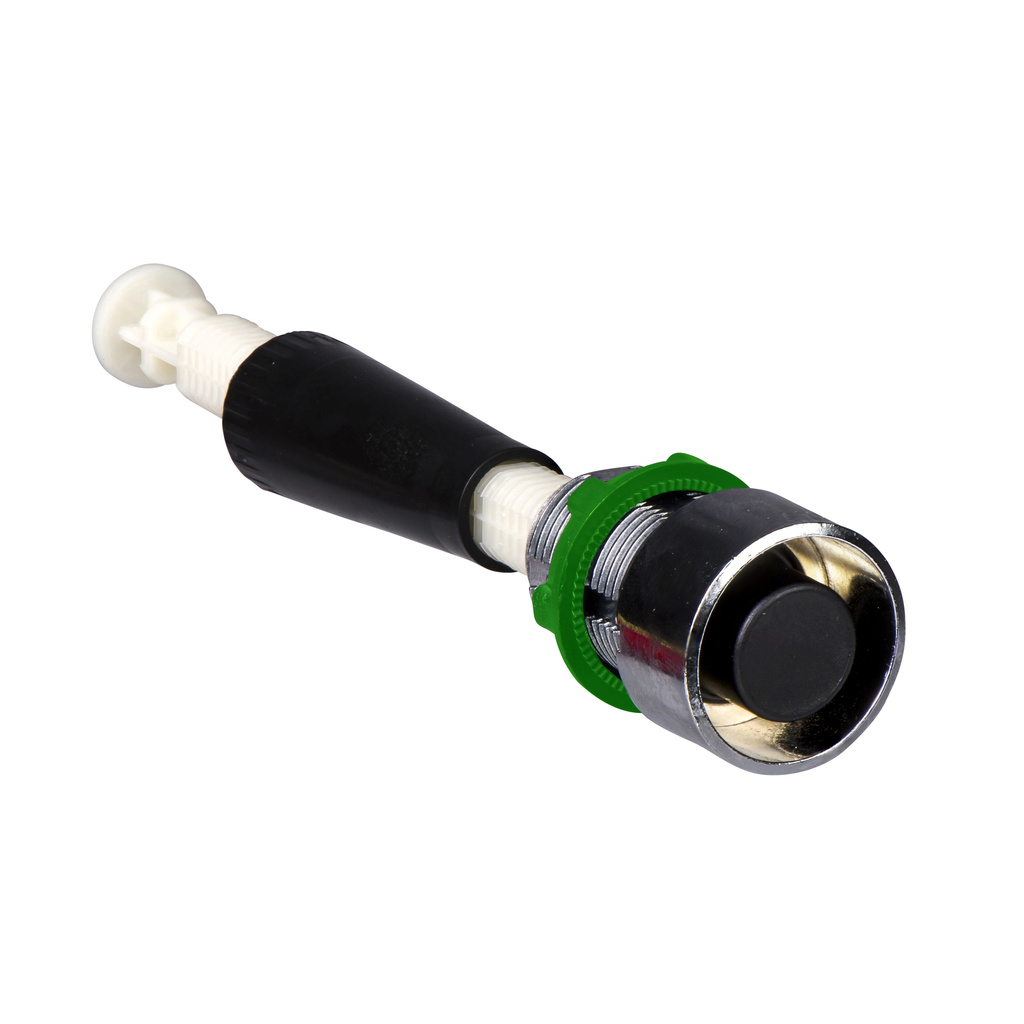

Manual overload reset push button, Harmony XB4, black flush, 22mm, for 130...257 mm actuation distance
This manual overload reset pushbutton provides a complete interface to your machines with a single panel cut-out Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments It is easily installed into a standard 22mm diameter cut-outs High performance International standards & certifications ( Marine certification, IP66 IP67 IP69 IP69K, Type 4X)
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XB4 |
|---|---|
| Activating Distance | 130-257 mm |
| Mounting Diameter | 22 mm |
| Product Or Component Type | manual overload reset push-button |
| Fixing Collar Material | zamak |
| Head Type | standard |
| Bezel Material | chromium plated metal |
| Operator Profile | black flush, unmarked |
| Device Short Name | XB4 |
| Warranty | 18 months |
| Operating Travel | 14 mm |
| Shape Of Signaling Unit Head | round |
| Net Weight | 0.071 kg |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Mechanical Durability | 5000000 cycles |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
