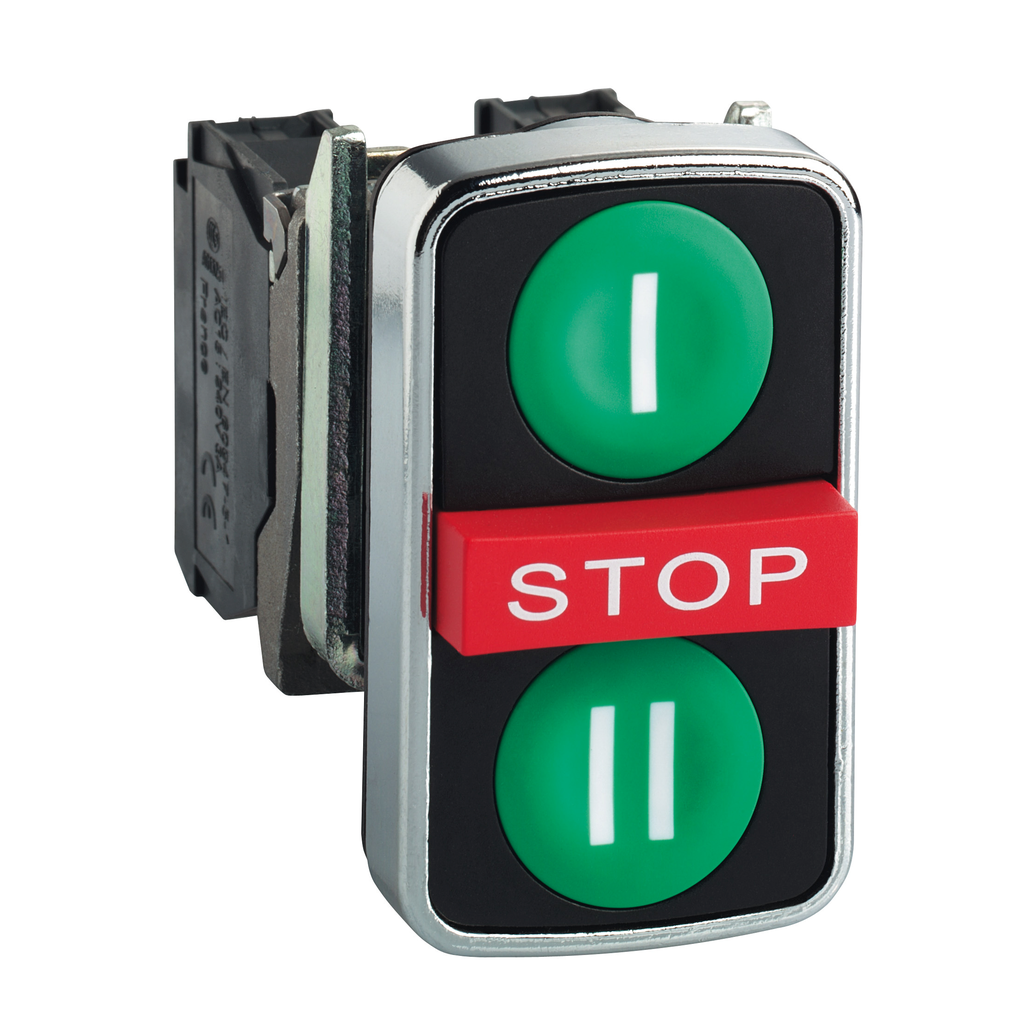

This Harmony XB4 triple-headed modular push button has 1 red and 2 green buttons, operates with a spring return / impulse mechanism. It has a metal bezel. It is marked with "I", "STOP" and "II" symbols. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Harmony XB4 |
---|---|
Mounting Diameter | 22 mm |
Type Of Operator | spring return |
Operators Description | green ''I'' - green ''II'' - red ''STOP'' |
Product Or Component Type | triple-headed push-button |
Shape Of Signaling Unit Head | rectangular |
Fixing Collar Material | zamak |
Operator Profile | 2 flush - 1 central projecting STOP push-buttons |
Head Type | standard |
Connections - Terminals |
|
Contacts Type And Composition | 1 NO + 1 NC + 1 NO |
Bezel Material | chromium plated metal |
Contact Operation | slow-break |
Device Short Name | XB4 |
Warranty | 18 months |
Contacts Usage | standard contacts |
Operating Force |
|
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Colour Of Marking |
|
Net Weight | 0.128 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
Device Presentation | complete product |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
[Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
[Ie] Rated Operational Current |
|
Operator Profile |
|
Mechanical Durability | 1000000 cycles |
Electrical Reliability |
|
Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1808008EN |
Sustainable Offer Status | Green Premium product |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1808008EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK06 IEC 50102 |
Ambient Air Temperature For Operation | -25-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Nema Degree Of Protection |
|
Electrical Shock Protection Class | class I IEC 61140 |
Protective Treatment | TH |
