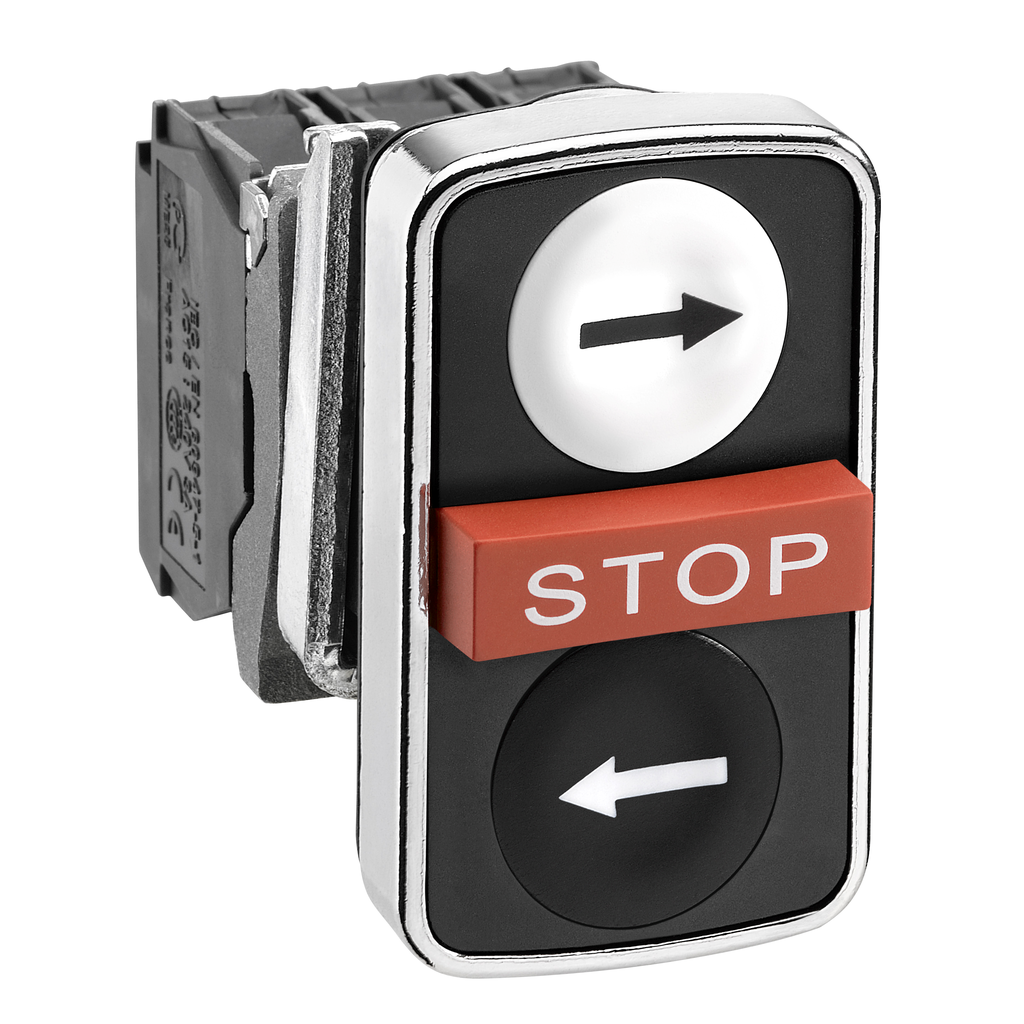

XB4BA711237 – Triple headed push button, Harmony XB4, white flush, red projecting, black flush pushbutton, 22mm, spring return, 1NO 1NC
XB4BA711237
Triple headed push button, Harmony XB4, white flush, red projecting, black flush pushbutton, 22mm, spring return, 1NO + 1NC

This Harmony XB4 triple-headed modular push button has 1 white, 1 red, and 1 black buttons, operates witha spring return / impulse mechanism. It has a metal bezel. This 3-headed push button provides a complete 3 button interface to your machines with a single panel cut-out. It is easily installed into a standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony XB4
Mounting Diameter 22 mm
Type Of Operator spring return
Operators Description white ''right arrow'' - black ''left arrow'' - red ''STOP''
Product Or Component Type triple-headed push-button
Shape Of Signaling Unit Head rectangular
Fixing Collar Material zamak
Operator Profile 2 flush - 1 central projecting STOP push-buttons
Head Type standard
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
  • spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • spring terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
Contacts Type And Composition 1 NO + 1 NC
Bezel Material chromium plated metal
Contact Operation slow-break
Device Short Name XB4
Warranty 18 months
Contacts Usage standard contacts
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force
  • 3.5 N NC changing electrical state
  • 3.8 N NO changing electrical state
Operating Travel
  • 1.5 mm NC changing electrical state)
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening with EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Colour Of Marking
  • white marking when green, red or black caps
  • black marking when white caps
Net Weight 0.128 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV EN 60947-1
Device Presentation complete product
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage 600 V 3)EN 60947-1
[Ie] Rated Operational Current
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Operator Profile
  • red projecting, STOP white)
  • white flush, right arrow black)
  • black flush, left arrow white)
Mechanical Durability 1000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m EN 60947-1
Shape Of Screw Head
  • cross JIS No 1
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1808008EN
Sustainable Offer Status Green Premium product
Reach Regulation Reference contains Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1808008EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • UL Listed
  • CSA
  • BV
  • DNV
  • LROS (Lloyds register of shipping)
  • GL
Ik Degree Of Protection IK06 IEC 50102
Ambient Air Temperature For Operation -25-70 °C
Standards
  • EN/IEC 60947-1
  • EN/IEC 60947-5-5
  • EN/IEC 60947-5-4
  • EN/IEC 60947-5-1
  • UL 508
  • CSA C22.2 No 14
  • JIS C8201-5-1
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP69K IEC 60529
  • IP69 IEC 60529
Ambient Air Temperature For Storage -40-70 °C
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Electrical Shock Protection Class class I IEC 61140
Protective Treatment TH
