22mm push button, Harmony XB4, metal base, turn to release push button, 40mm red mushroom button, 6A at 120VAC, 1NC

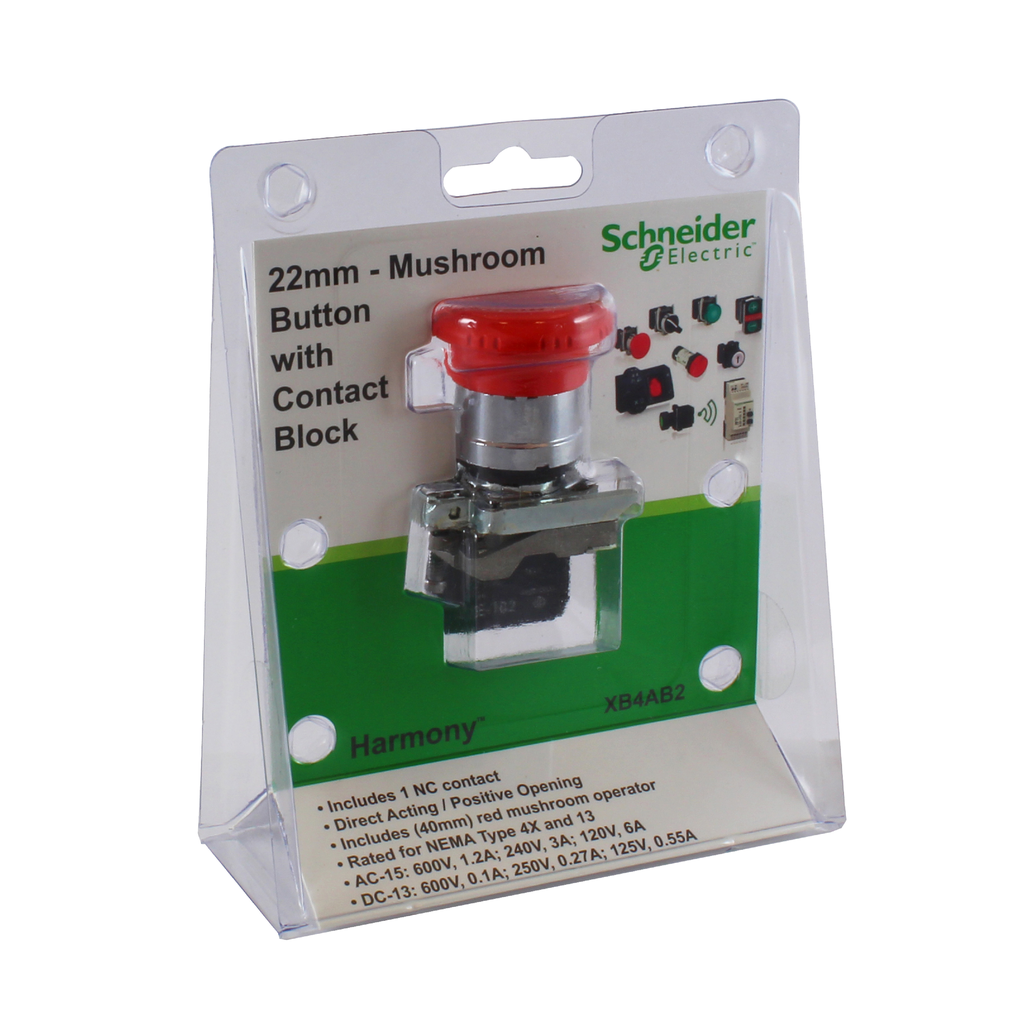

XB4/ZB4 22mm push buttons are for industrial applications. XB4/ZB4 operators have chromium plated metal bezels that connect to a fully metal mounting collar. Operator is a turn to release push button with a 40mm red mushroom button. The operator has one normally closed contact. Contact has UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. The mushroom button is NEMA 4, 4X and 13 rated. Turn to release mushroom button is 1.85 inches tall, 1.57 inches wide and 3.23 inches deep. The push button assembly weighs 0.26 lbs. This point of purchase product is packaged in a blister pack. Push button is UL Listed and CSA certified "It is ideal for machine builder industry applications such as automotive, textile and wood. It is also suitable for use in public works, building and airport." "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, IEC 60364-5-53, EN/IEC 60947-5-1, EN/IEC 60947-5-5, JIS C8201-5-1, UL 508 and JIS C8201-1 standards." "It is installed into a Ø 22mm panel cutout." "Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines and processes." "The modular range of Ø 22mm metal control and signaling units combine simplicity of installation, modern standard and flush mounted design."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Reset | turn to release |
|---|---|
| Range Of Product | Harmony XB4 |
| Mounting Diameter | 22 mm |
| Type Of Operator | mechanical latching |
| Product Or Component Type | emergency switching off push-button |
| Shape Of Signaling Unit Head | round |
| Fixing Collar Material | zamak |
| Connections - Terminals |
|
| Sale Per Indivisible Quantity | 1 |
| Bezel Material | chromium plated metal |
| Contact Operation | slow-break |
| Operator Profile | red mushroom Ø 40 mm, unmarked |
| Device Short Name | XB4 |
| Contacts Usage | standard contacts |
| Height | 47 mm |
| Terminals Description Iso N°1 | (21-22)NC |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Operating Travel |
|
| Contacts Material | silver alloy (Ag/Ni) |
| Positive Opening | with EN/IEC 60947-5-1 appendix K |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Net Weight | 0.133 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN 60947-1 |
| Device Presentation | complete product |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Electrical Durability |
|
| [Ui] Rated Insulation Voltage | 600 V 3)EN 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 300000 cycles |
| Electrical Reliability |
|
| Width | 40 mm |
| Depth | 104 mm |
| Tightening Torque | 0.8-1.2 N.m EN 60947-1 |
| Shape Of Screw Head |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1808008EN |
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1808008EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Product Certifications |
|
| Ik Degree Of Protection | IK03 IEC 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 2-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection | IP66 IEC 60529 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class I IEC 60536 |
| Protective Treatment | TH |
