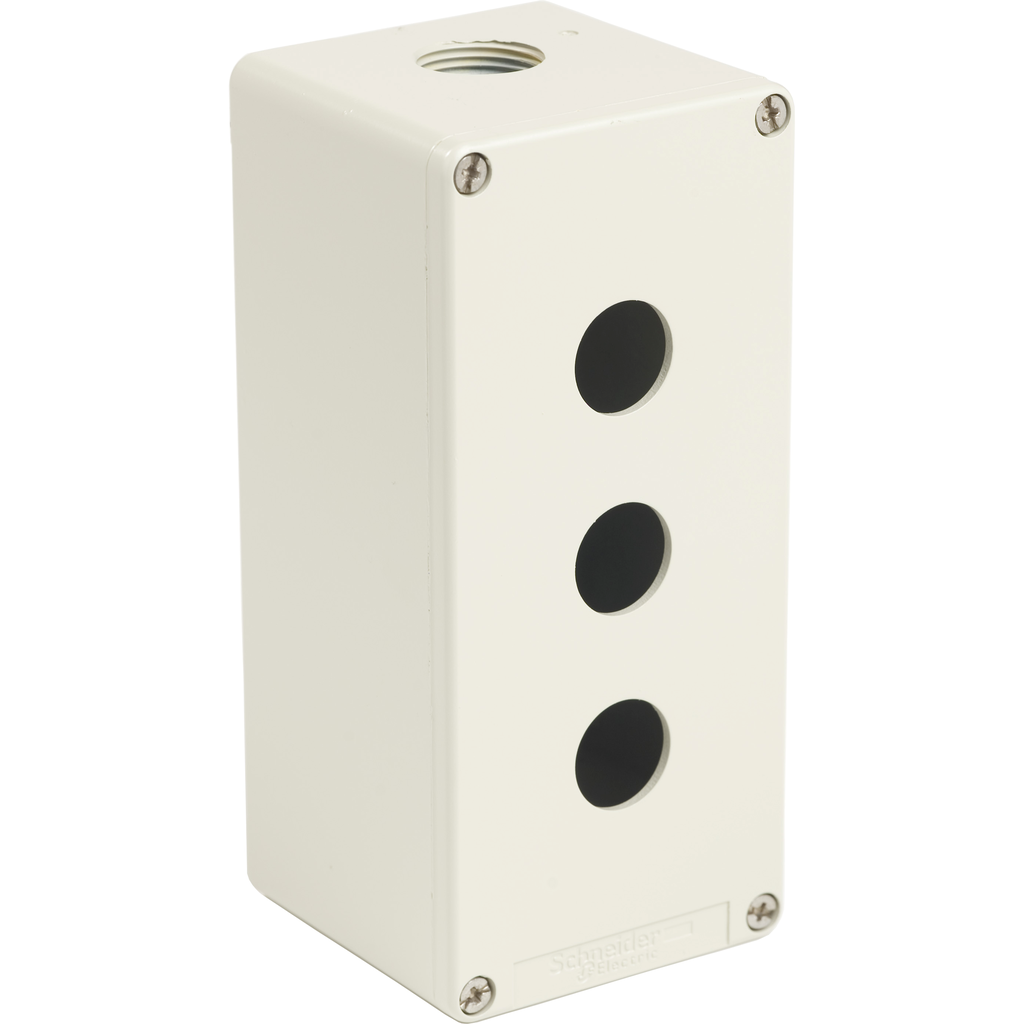

22mm push button, Harmony XALD, empty grey enclosure, die cast zinc alloy, 3 openings, vertical mount, NEMA 4, 13
XAPG 22mm enclosures are for industrial applications. These empty enclosures can be used with push buttons and pilot lights from the XB4 metal or XB5 plastic push button ranges. This grey die cast zinc alloy enclosure has openings for three operators. The spacing of the operator holes allows the enclosure vertically and have enough electrical clearance to mount the operators properly. The enclosure is NEMA 4 and 13 rated. Enclosure is 6.89 inches tall, 3.15 inches wide and 3.03 inches deep. The relay weighs 2.52 lbs. Enclosure is UL Listed and CSA certified. "It is suitable for automotive, textiles, timber, energy distribution, public works, building and airport applications." "This product is certified by CSA." "It is compatible with the XB4 range Ø 22mm control and signaling units." "Harmony XAM, XAP industrial IP67 enclosures combines simple installation, configuration flexibility and robust construction." "The Harmony XAM, XAP range of insulated or metal enclosures designed for use in severe environments."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | for Ø 22 mm control and signalling units |
|---|---|
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey RAL 7032) |
| Product Or Component Type | die-cast empty control station |
| Material | die cast zinc |
| Ip Degree Of Protection | IP65 IEC 60529 |
| Control Station Type | metal |
| Colour Of Cover | grey RAL 7032) |
| Number Of Cut-Out | 3 cut-outs |
| Sale Per Indivisible Quantity | 1 |
| Resistance To Chemical Agents | special treatment can be obtained on request |
| Device Short Name | XAPG |
| Warranty | 18 months |
| Number Of Horizontal Rows | 3 |
| Number Of Vertical Rows | 1 |
| Cable Entry |
|
| Net Weight | 1.145 kg |
| Cad Overall Height | 175 mm |
| Thread Type | 3/4 NPT |
| Cut-Out Dimensions | Ø 22 mm |
| Compatibility Code | XAPG |
| Cad Overall Width | 80 mm |
| Cad Overall Depth | 77 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK07 EN/IEC 62262 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Electrical Shock Protection Class |
|
| Protective Treatment | TH |
