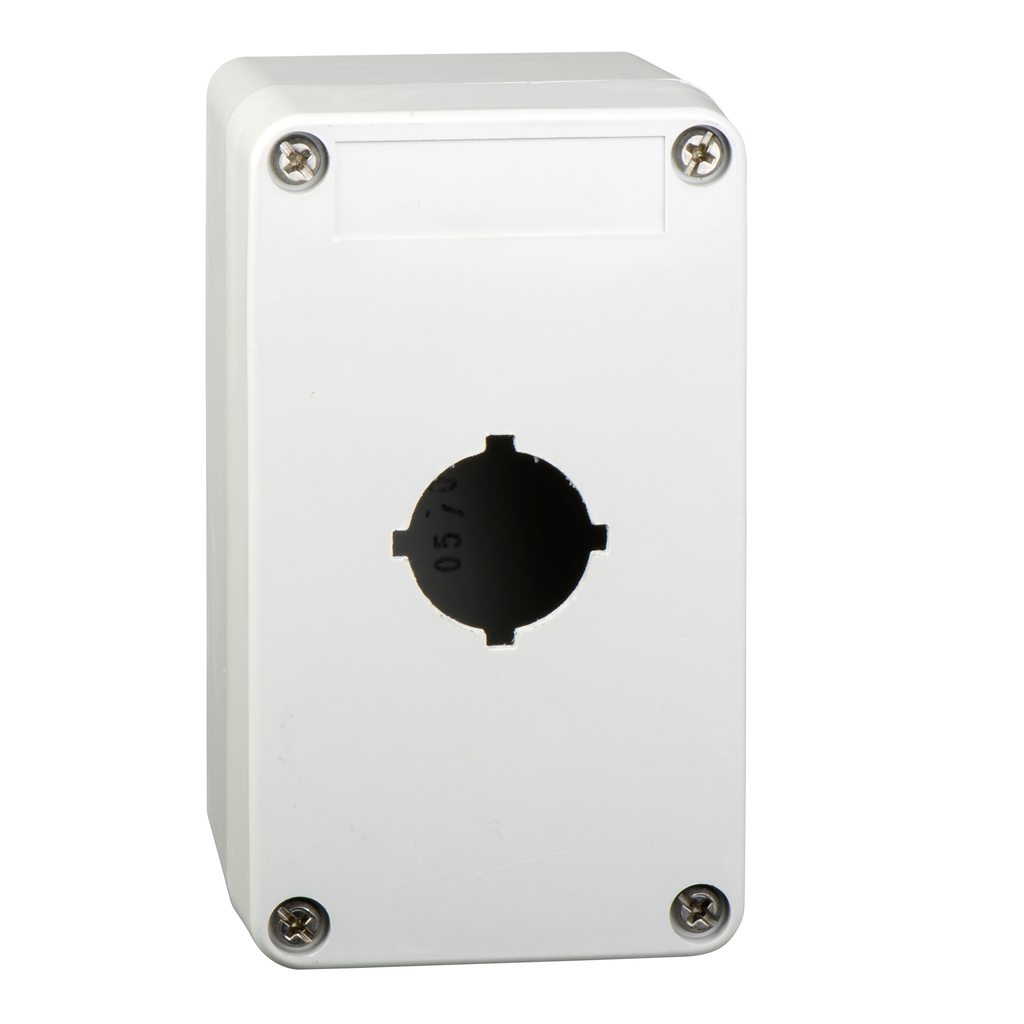

XAPA1101
empty control station - XAP-A - plastic - 1 opening
This Harmony XAPA1101 is an empty control station plastic 1 opening. It is part of the range Harmony XAP, XB2 SL metal enclosures, for Harmony XB4.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Product Destination | for Ø 30.5 mm control and signalling units |
|---|---|
| Colour Of Cover | grey |
| Number Of Cut-Out | 1 cut-out |
| Range Of Product | Harmony XAP |
| Colour Of Base Of Enclosure | grey |
| Device Mounting | flush |
| Usable Depth | 83 mm |
| Cable Entry | undrilled |
| Product Or Component Type | empty control station without hinges |
| Resistance To Chemical Agents |
|
| Product Front Plate Size | 85 x 146 mm |
| Material | glass reinforced polyester |
| Device Short Name | XAPA |
| Ip Degree Of Protection |
|
| Warranty | 18 months |
| Flame Retardance |
|
| Number Of Vertical Rows | 1 |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2111017EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Operation | -40-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category |
|
| Fire Resistance |
|
| Protective Treatment |
|
