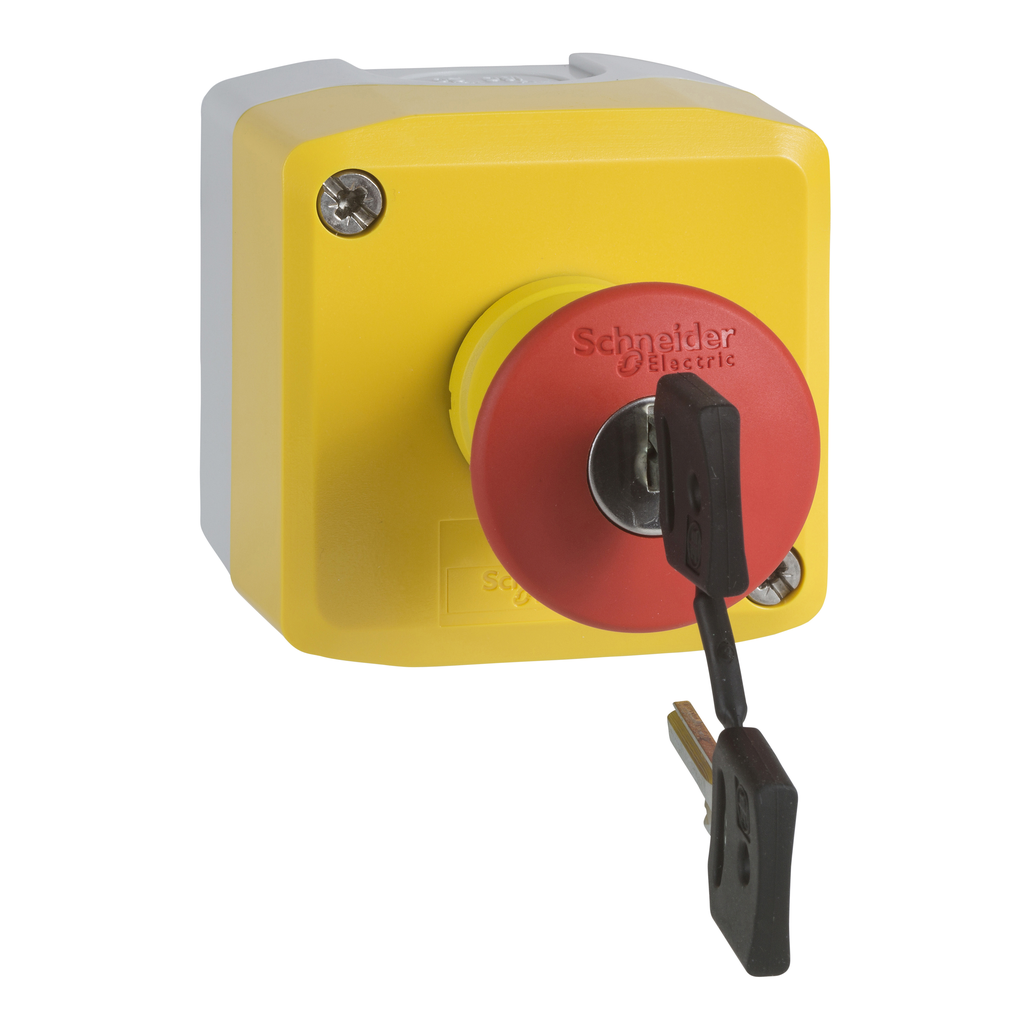

XALK188EH7 - Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom push button 40mm, key release, 1NO 1NC, unmarked

XALK188EH7

Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom push button 40mm, key release, 1NO + 1NC, unmarked

Add to Quote Catalogue

Specifications

Control Station Application	emergency stop function emergency switching off function
Product Destination	for XB5 Ø 22 mm control and signalling units
Reset	key release
Range Of Product	Harmony XALK
Colour Of Base Of Enclosure	light grey RAL 7035)
Control Station Composition	1 mushroom head Ø 40 mm push-button, red 1 NO + 1 NC unmarked
Operators Description	red unmarked 1 NO + 1 NC
Product Or Component Type	complete control station
Material	polycarbonate
Operator Profile	1 mushroom head push-button
Colour Of Cover	yellow RAL 1021)
Contact Operation	slow-break
Device Short Name	XALK
Warranty	18 months
Key Number	455
Short-Circuit Protection	10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force	44 N NC + NO changing electrical state
Operating Travel	1.5 mm NC changing electrical state) 2.6 mm NO changing electrical state) 4.3 mm total travel)
Contacts Material	silver alloy (Ag/Ni)
Positive Opening	with EN/IEC 60947-5-1 appendix K
[Ith] Conventional Free Air Thermal Current	10 A EN/IEC 60947-5-1
Cable Entry	1 knock-out for cable entry 0-14 mm 2 knock-outs for Pg 13 cable gland and ISO M20 0-12 mm
Net Weight	0.188 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV EN/IEC 60947-1
Resistance To High Pressure Washer	7000000 Pa 55 °C 0.1 m
Electrical Durability	1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Connections - Terminals	screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage	600 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current	3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Mechanical Durability	300000 cycles
Electrical Reliability	λ < 10exp(-6) 5 V, 1 mA EN/IEC 60947-5-4 λ < 10exp(-8) 17 V, 5 mA EN/IEC 60947-5-4
Tightening Torque	0.8-1.2 N.m EN/IEC 60947-1
Shape Of Screw Head	cross Philips no 1 cross pozidriv No 1 slotted flat Ø 4 mm slotted flat Ø 5.5 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1806010EN
Sustainable Offer Status	Green Premium product
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Circularity Profile	ENVEOLI1806010EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications	UL Listed CSA
Ik Degree Of Protection	IK03 EN 50102
Ambient Air Temperature For Operation	-40-70 °C
Standards	EN/IEC 60947-5-5 EN/ISO 13850 UL 508 EN/IEC 60204-1 EN/IEC 60947-1 EN/IEC 60947-5-4 JIS C 4520 CSA C22.2 No 14 EN/IEC 60947-5-1 IEC 60364-5-53
Shock Resistance	30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance	5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection	IP66 IEC 60529 IP67 IP69 IP69K
Ambient Air Temperature For Storage	-40-70 °C
Overvoltage Category	class II IEC 60536
Nema Degree Of Protection	NEMA 13 NEMA 4X
Protective Treatment	TH

Control station, Harmony XALK, plastic, yellow lid, 1 red mushroom push button 40mm, key release, 1NO + 1NC, unmarked
