XALDAEQ3845G1H7

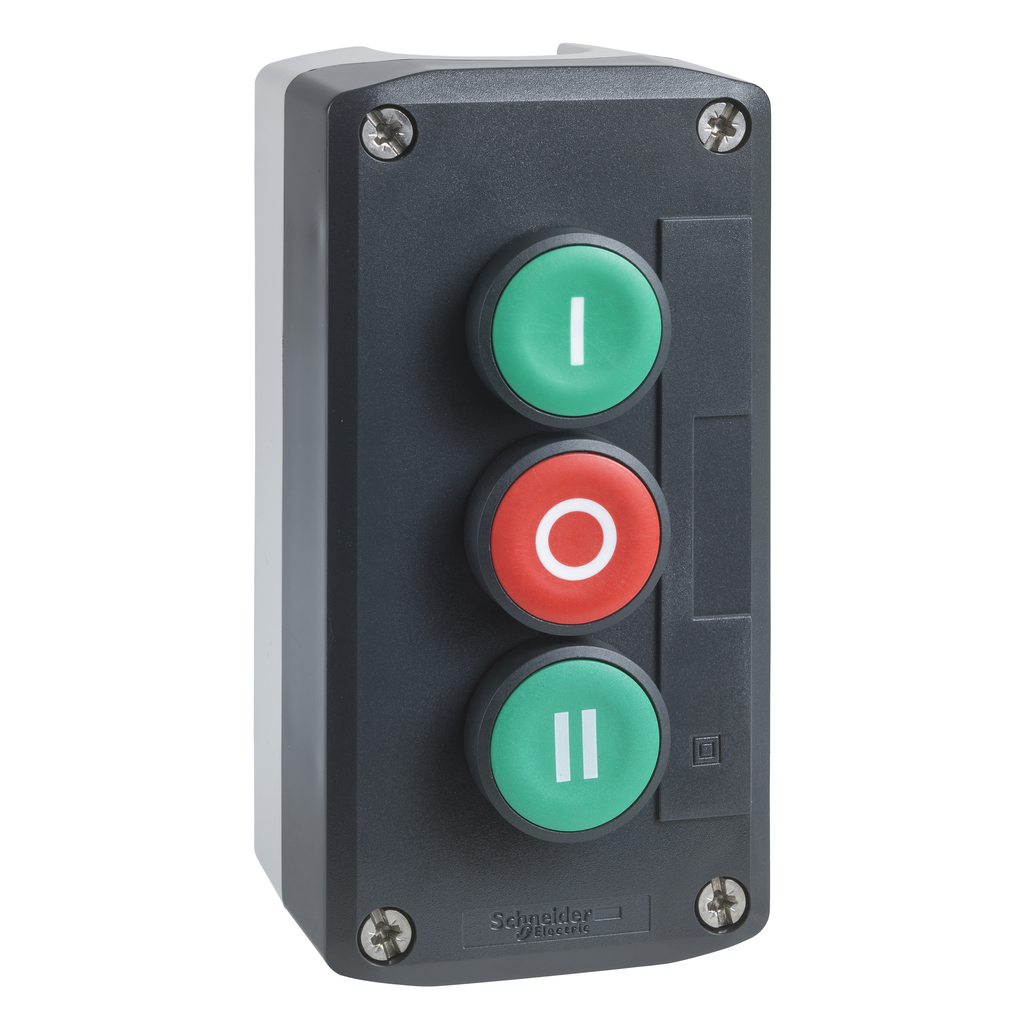

Complete control station, Harmony XALD, Start/Stop function, flush push buttons, 22mm
This control station with flush push-buttons is ideal to control start / stop operation in your machines Its schematic is clearly distinguishable thanks to clear colors and markings It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Station Application | Start-Stop function |
|---|---|
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Colour Of Cover | dark grey RAL 7016) |
| Range Of Product | Harmony XALD |
| Colour Of Base Of Enclosure | light grey RAL 7035) |
| Product Or Component Type | complete control station |
| Material | polycarbonate |
| Device Short Name | XALD |
| Connections - Terminals |
|
| Short-Circuit Protection | 10 A cartridge fuse gG |
| Contacts Material | silver alloy (Ag/Ni) |
| Mechanical Durability | 5000000 cycles |
| Cable Entry |
|
| Tightening Torque | 0.8-1.2 N.m EN/IEC 60947-1 |
| Net Weight | 0.18 kg |
| Shape Of Screw Head |
|
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1806010EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1806010EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Product Certifications |
|
| Ik Degree Of Protection | IK05 EN 50102 |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Standards |
|
| Nema Degree Of Protection |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Protective Treatment | TH |
| Ip Degree Of Protection |
|
