22mm push button, Harmony XALD, complete control station, 3 push button, 6A, 600V, NEMA 4X, 13

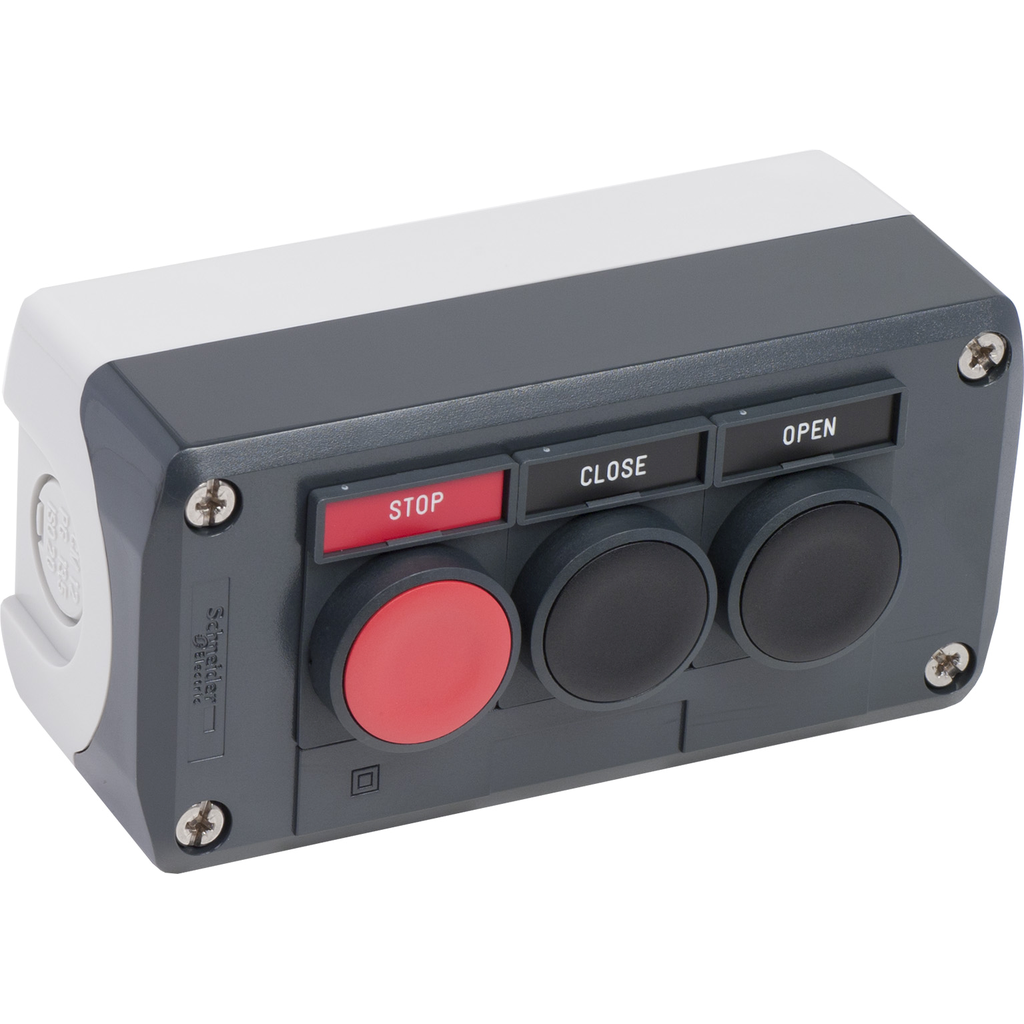

XAL control stations are suitable for most common functions. This control station has three 22mm push buttons. One flush black push button operator has a normally open contact and is marked UP. One flush black push button operator has a normally open contact and is marked DOWN. One flush red push button has a normally closed contact and is marked STOP. Contacts have UL A600, UL Q600, IEC AC15 and IEC DC13 contact ratings. Enclosure has knockouts for wire entry. Control Station is 5.35 inches tall, 2.68 inches wide and 2.44 inches deep. The relay weighs 0.66 lbs. Control station is UL Listed and CSA certified. "This product meets EN/IEC 60947-5-4, EN/IEC 60947-1, EN/IEC 60947-5-5 and EN/IEC 60947-5-1 standards." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Station Application | three functions |
|---|---|
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Range Of Product | Harmony XALD |
| Colour Of Base Of Enclosure | light grey RAL 7035) |
| Control Station Composition | 1 flush push-button |
| Product Or Component Type | complete control station |
| Material | polycarbonate |
| Operator Profile | 3 flush push-buttons |
| Colour Of Cover | dark grey RAL 7016) |
| Device Short Name | XALD |
| Warranty | 18 months |
| Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
| Contacts Material | silver alloy (Ag/Ni) |
| [Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
| Cable Entry |
|
| Net Weight | 0.299 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
| Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
| Electrical Durability |
|
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
| [Ie] Rated Operational Current |
|
| Mechanical Durability | 5000000 cycles |
| Electrical Reliability |
|
| Tightening Torque | 0.8-1.2 N.m EN/IEC 60947-1 |
| Shape Of Screw Head |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1806010EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1806010EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Ik Degree Of Protection | IK03 EN 50102 |
| Ambient Air Temperature For Operation | -40-70 °C |
| Standards |
|
| Shock Resistance |
|
| Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
| Ip Degree Of Protection |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection |
|
| Electrical Shock Protection Class | class II IEC 60536 |
| Protective Treatment | TH |
