Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads
Brand: Schneider Electric
Add to Quote CatalogueControl Station Application | Start-Stop function |
---|---|
Product Destination | for XB5 Ø 22 mm control and signalling units |
Range Of Product | Harmony XALD |
Colour Of Base Of Enclosure | light grey RAL 7035) |
Control Station Composition |
|

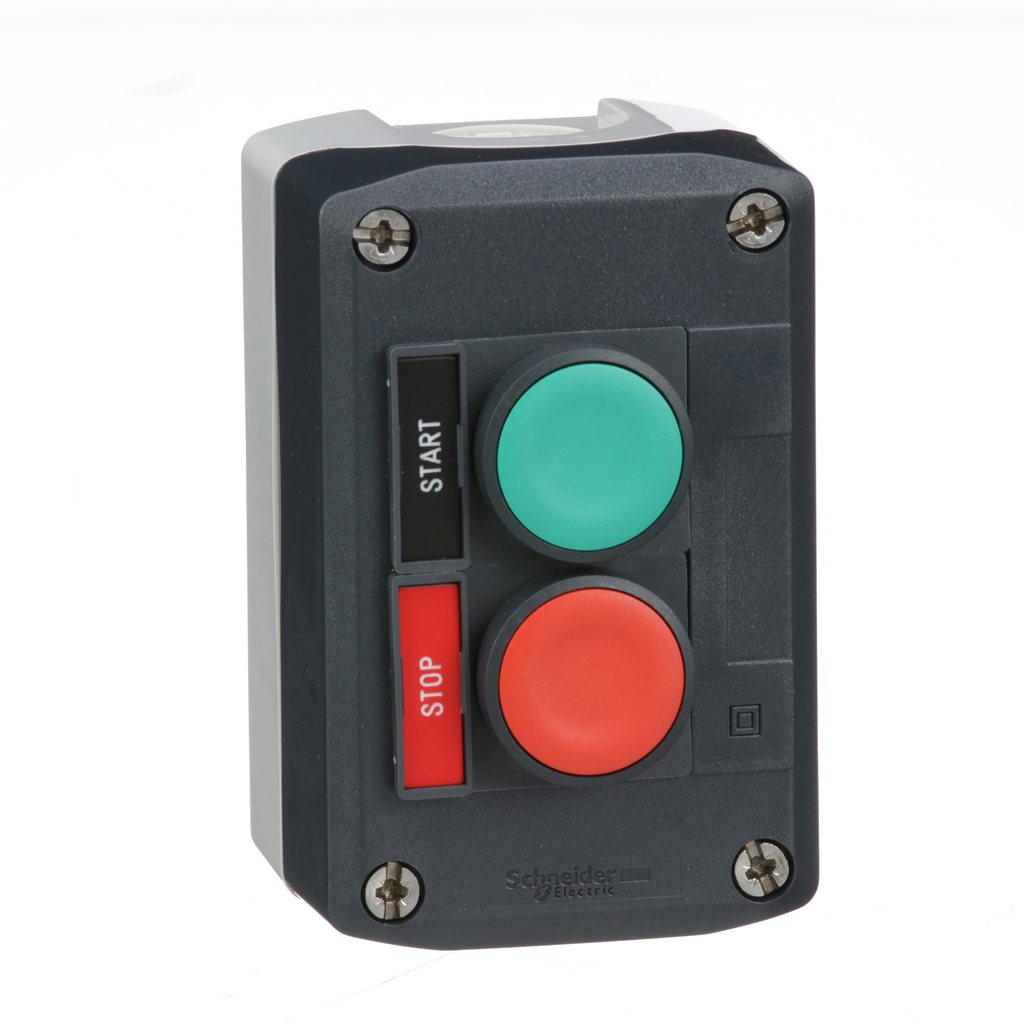

Operators Description | green ''START'' 1 NO - red ''STOP'' 1 NC |
Product Or Component Type | complete control station |
Material | polycarbonate |
Marking Location | marking on legend holder |
Operator Profile | 2 flush push-buttons |
Colour Of Cover | dark grey RAL 7016) |
Contact Operation | slow-break |
Device Short Name | XALD |
Warranty | 18 months |
Short-Circuit Protection | 10 A cartridge fuse gG EN/IEC 60947-5-1 |
Operating Force |
|
Operating Travel |
|
Contacts Material | silver alloy (Ag/Ni) |
Positive Opening | with EN/IEC 60947-5-1 appendix K |
[Ith] Conventional Free Air Thermal Current | 10 A EN/IEC 60947-5-1 |
Cable Entry |
|
Net Weight | 0.233 kg |
[Uimp] Rated Impulse Withstand Voltage | 6 kV EN/IEC 60947-1 |
Resistance To High Pressure Washer | 7000000 Pa 55 °C 0.1 m |
Electrical Durability |
|
Connections - Terminals |
|
[Ui] Rated Insulation Voltage | 600 V 3)EN/IEC 60947-1 |
[Ie] Rated Operational Current |
|
Mechanical Durability | 5000000 cycles |
Electrical Reliability |
|
Tightening Torque | 0.8-1.2 N.m EN/IEC 60947-1 |
Shape Of Screw Head |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1806010EN |
Sustainable Offer Status | Green Premium product |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1806010EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ik Degree Of Protection | IK03 EN 50102 |
Ambient Air Temperature For Operation | -40-70 °C |
Standards |
|
Shock Resistance |
|
Vibration Resistance | 5 gn 12-500 Hz)IEC 60068-2-6 |
Ip Degree Of Protection |
|
Ambient Air Temperature For Storage | -40-70 °C |
Overvoltage Category | class II IEC 60536 |
Nema Degree Of Protection |
|
Protective Treatment | TH |
