Home > Schneider Electric > Automation & Control > Pilot Devices > Accessories > XALD101H29H7 – Control station, Harmony XALD, XALK, plastic, dark grey, 1 green flush push button marked START, 22mm, spring return, 1 NO, UL CSA certified
XALD101H29H7 – Control station, Harmony XALD, XALK, plastic, dark grey, 1 green flush push button marked START, 22mm, spring return, 1 NO, UL CSA certified
XALD101H29H7

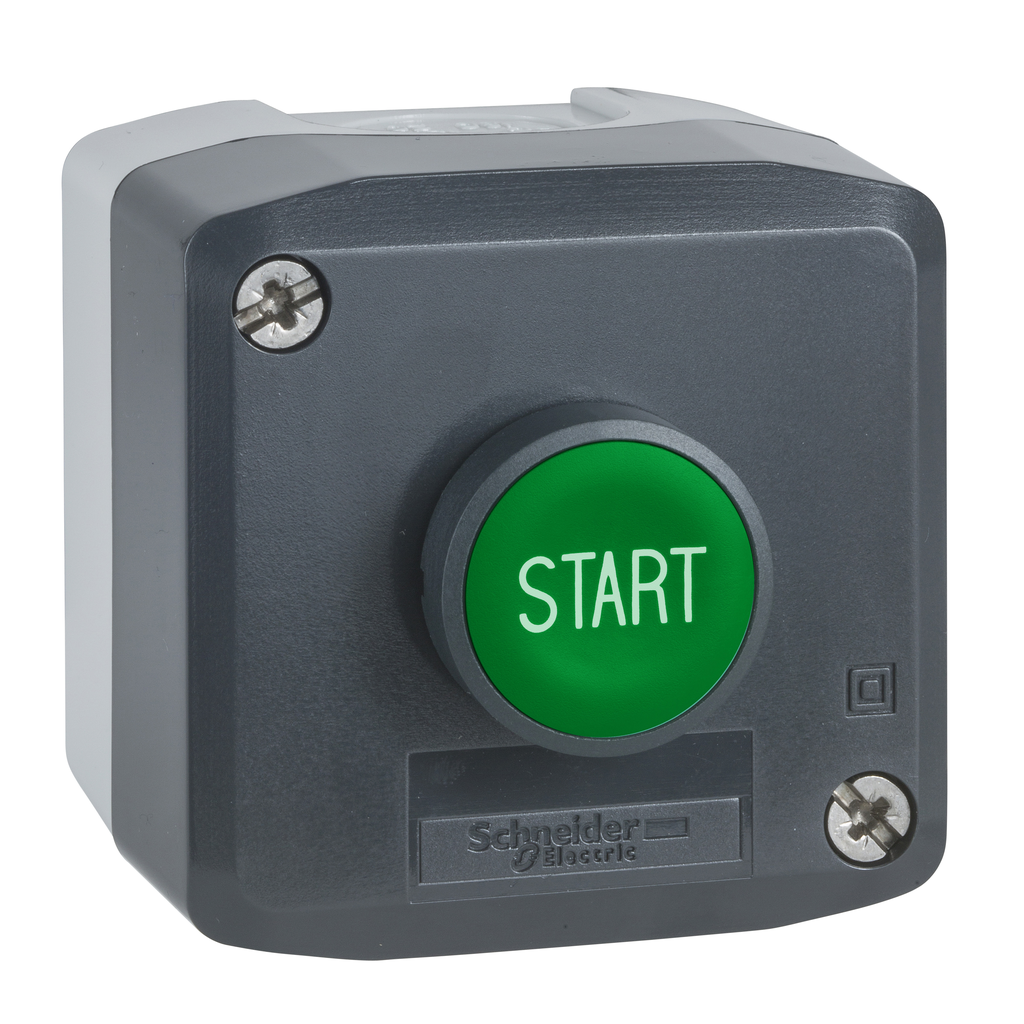

Control station, Harmony XALD, XALK, plastic, dark grey, 1 green flush push button marked START, 22mm, spring return, 1 NO, UL CSA certified

This Harmony XALD, is a complete ready to use control station for start function. It has 1 flush push button, green with START marking on legend holder. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, IP67, IP69, IP69K, making it ideal for operation in harsh environments. This control station provides a good resistance to chemical agents, thanks to its electrical double insulation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides a polycarbonate double insulated enclosure with a light grey (RAL 7035) base of enclosure and a dark grey (RAL 7016) cover. This control station is ideally suited for industrial, buildings, and infrastructure applications. This control station complies with IEC, UL, CSA standards, as well as CE marking. It is also UL listed and CSA certified. It is compatible with the Harmony XB5 range of control and signaling units, providing a wide choice of circular and square heads

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Control Station Application start function
Product Destination for XB5 Ø 22 mm control and signalling units
Range Of Product Harmony XALD
Colour Of Base Of Enclosure light grey RAL 7035)
Control Station Composition 1 flush push-button, green 1 NO START
Operators Description green ''START'' 1 NO
Product Or Component Type complete control station
Material polycarbonate
Marking Location marking on legend holder
Operator Profile 1 flush push-button
Colour Of Cover dark grey RAL 7016)
Contact Operation slow-break
Device Short Name XALD
Warranty 18 months
Short-Circuit Protection 10 A cartridge fuse gG EN/IEC 60947-5-1
Operating Force 3.8 N NO changing electrical state
Operating Travel
  • 2.6 mm NO changing electrical state)
  • 4.3 mm total travel)
Contacts Material silver alloy (Ag/Ni)
Positive Opening without
[Ith] Conventional Free Air Thermal Current 10 A EN/IEC 60947-5-1
Cable Entry
  • 1 knock-out for cable entry 14-14 mm
  • 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Net Weight 0.157 kg
[Uimp] Rated Impulse Withstand Voltage 6 kV EN/IEC 60947-1
Resistance To High Pressure Washer 7000000 Pa 55 °C 0.1 m
Electrical Durability
  • 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
  • 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Connections - Terminals
  • screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
  • screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage 600 V 3)EN/IEC 60947-1
[Ie] Rated Operational Current
  • 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
  • 3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
  • 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
  • 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
  • 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
Mechanical Durability 5000000 cycles
Electrical Reliability
  • λ < 10exp(-6) 5 V 1 mA EN/IEC 60947-5-4
  • λ < 10exp(-8) 17 V 5 mA EN/IEC 60947-5-4
Tightening Torque 0.8-1.2 N.m EN/IEC 60947-1
Shape Of Screw Head
  • cross Philips no 1
  • cross pozidriv No 1
  • slotted flat Ø 4 mm
  • slotted flat Ø 5.5 mm
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP1806010EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Circularity Profile ENVEOLI1806010EN
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Product Certifications
  • CSA
  • UL Listed
Ik Degree Of Protection IK03 EN 50102
Ambient Air Temperature For Operation -40-70 °C
Standards
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • EN/IEC 60947-5-4
  • EN/IEC 60947-5-5
  • JIS C8201-5-1
  • EN/IEC 60947-1
  • UL 508
  • JIS C8201-1
Shock Resistance
  • 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
  • 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance 5 gn 12-500 Hz)IEC 60068-2-6
Ip Degree Of Protection
  • IP66 IEC 60529
  • IP67
  • IP69
  • IP69K
Ambient Air Temperature For Storage -40-70 °C
Overvoltage Category class II IEC 60536
Nema Degree Of Protection
  • NEMA 13
  • NEMA 4X
Protective Treatment TH
