22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13

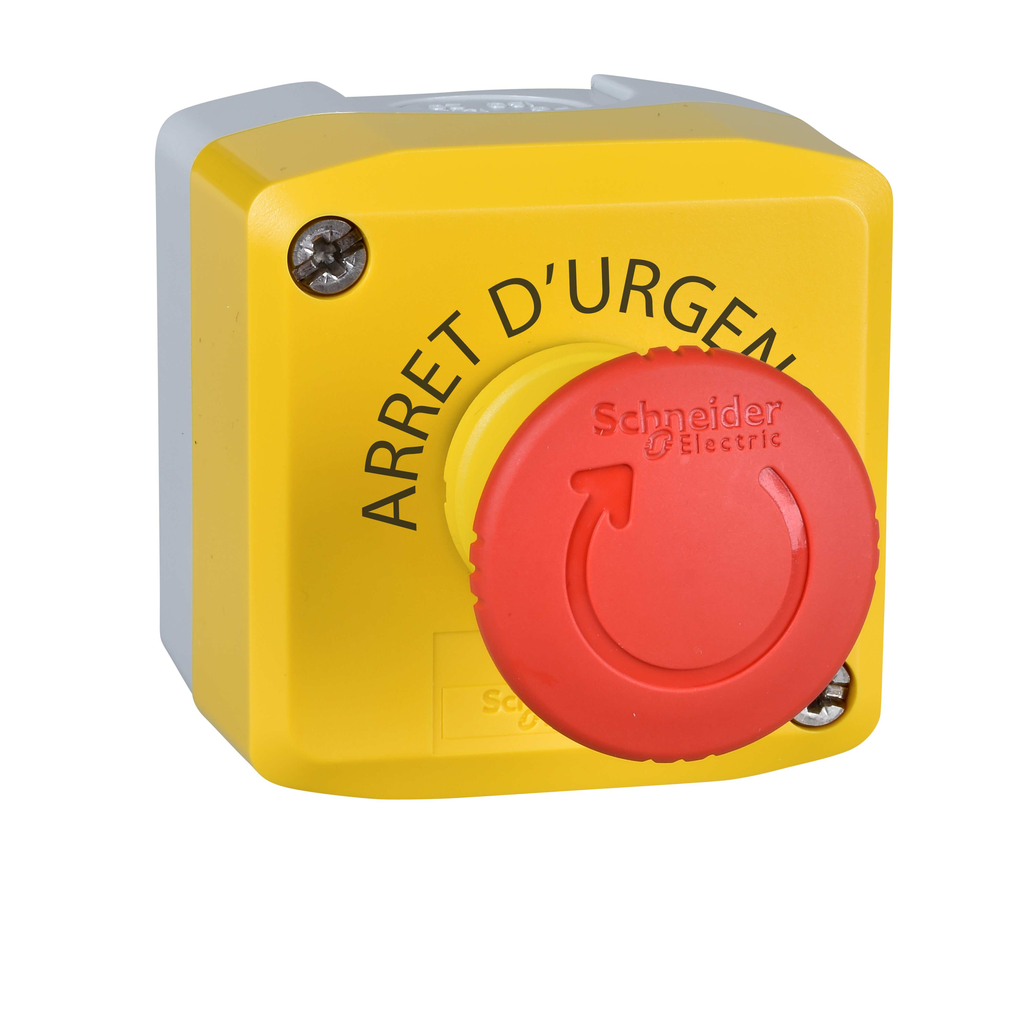

XAL control stations are suitable for most common functions. XALK control stations are complete stations for emergency stop functions. This control station has an enclosure with a light grey box and a yellow cover. Control Station has a trigger action emergency stop operator with a 40mm red mushroom button. Operator is a turn to release push button. The operator has one normally closed contact. Control Station is 2.68 inches tall, 2.68 inches wide and 4.53 inches deep. The relay weighs 0.43 lbs. This point of purchase product is packaged in a blister pack. Control station is UL Listed and CSA certified. "This product is certified by IEC, UL, CSA and CE." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Control Station Application | emergency switching off function |
|---|---|
| Product Destination | for XB5 Ø 22 mm control and signalling units |
| Colour Of Cover | yellow RAL 1021) |
| Range Of Product | Harmony XALK |
| Colour Of Base Of Enclosure | light grey RAL 7035) |
| Product Or Component Type | complete control station |
| Device Short Name | XALK |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Ambient Air Temperature For Operation | -25-70 °C |
| Ambient Air Temperature For Storage | -40-70 °C |
| Nema Degree Of Protection | NEMA 13 |
| Ip Degree Of Protection | IP66 |
