XACD21A0101 - Pendant control station, Harmony XAC, plastic, yellow, 1 2 directional push button

XACD21A0101

Pendant control station, Harmony XAC, plastic, yellow, 1 2 directional push button

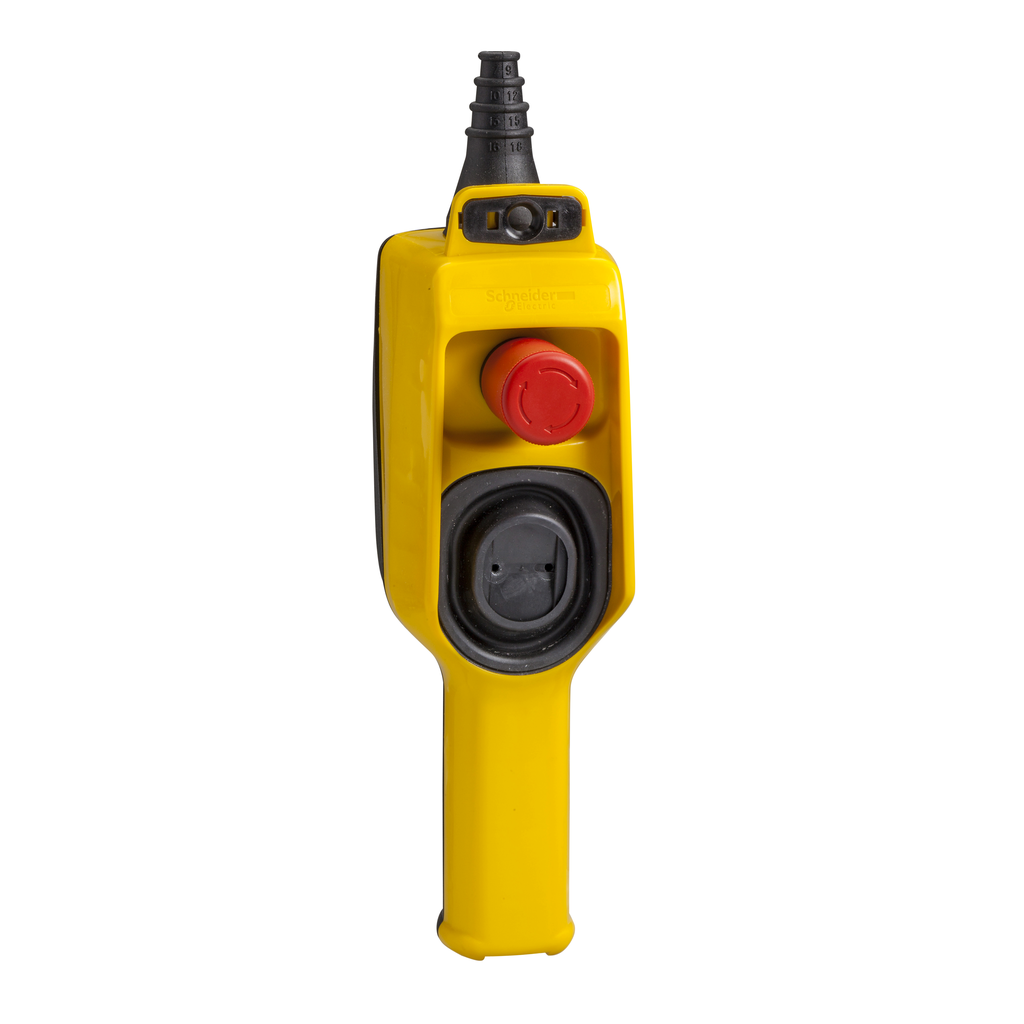

This Harmony XACD21A0101 is a pendant station 1 rocker lever. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Harmony XAC
Product Or Component Type	pendant control station
Device Short Name	XACD
Warranty	18 months
Ik Degree Of Protection	IK08 EN 50102
Control Station Application	control of single speed hoist motor
Terminal Identifier	(13-14)NO (11-12)NC
Ambient Air Temperature For Operation	-25-70 °C
Terminals Description Iso N°1	(13-14)NO
Standards	EN/IEC 60947-5-1 EN/IEC 60204-32 UL 508 CSA C22.2 No 14
Maximum Resistance Across Terminals	25 MOhm
Short-Circuit Protection	10 A fuse protection cartridge gG
Cable Entry	rubber sleeve with stepped entry 7-18 mm
Shock Resistance	70 gn IEC 60068-2-27
Enclosure Type	complete ready for use
Vibration Resistance	15 gn 10-500 Hz)IEC 60068-2-6
Net Weight	0.34 kg
Product Compatibility	ZB2BE101 for each direction
[Uimp] Rated Impulse Withstand Voltage	6 kV IEC 60947-1
Ip Degree Of Protection	IP65 conforming to IEC 60529
Control Station Type	double insulated
Control Type	intuitive
Motor Starter Type	reversing
Connections - Terminals	screw clamp terminals, 1 x 2.5 mm² with or without cable end screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Ui] Rated Insulation Voltage	600 V 3)IEC 60947-1
Ambient Air Temperature For Storage	-40-70 °C
Control Station Composition	1 2-directional button
Overvoltage Category	class II IEC 61140
Contact Operation	slow-break
Mechanical Interlocking	with mechanical interlocking
Control Station Colour	yellow
Mechanical Durability	3000000 cycles
Operating Force	16-16 N
Control Button Type	first direction button 1 NO raise, slow second direction button 1 NO lower, slow
[Ithe] Conventional Enclosed Thermal Current	10 A
Electrical Circuit Type	control circuit
Enclosure Material	polypropylene
Contact Code Designation	A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Protective Treatment	TH
Rated Operational Power In W	40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
