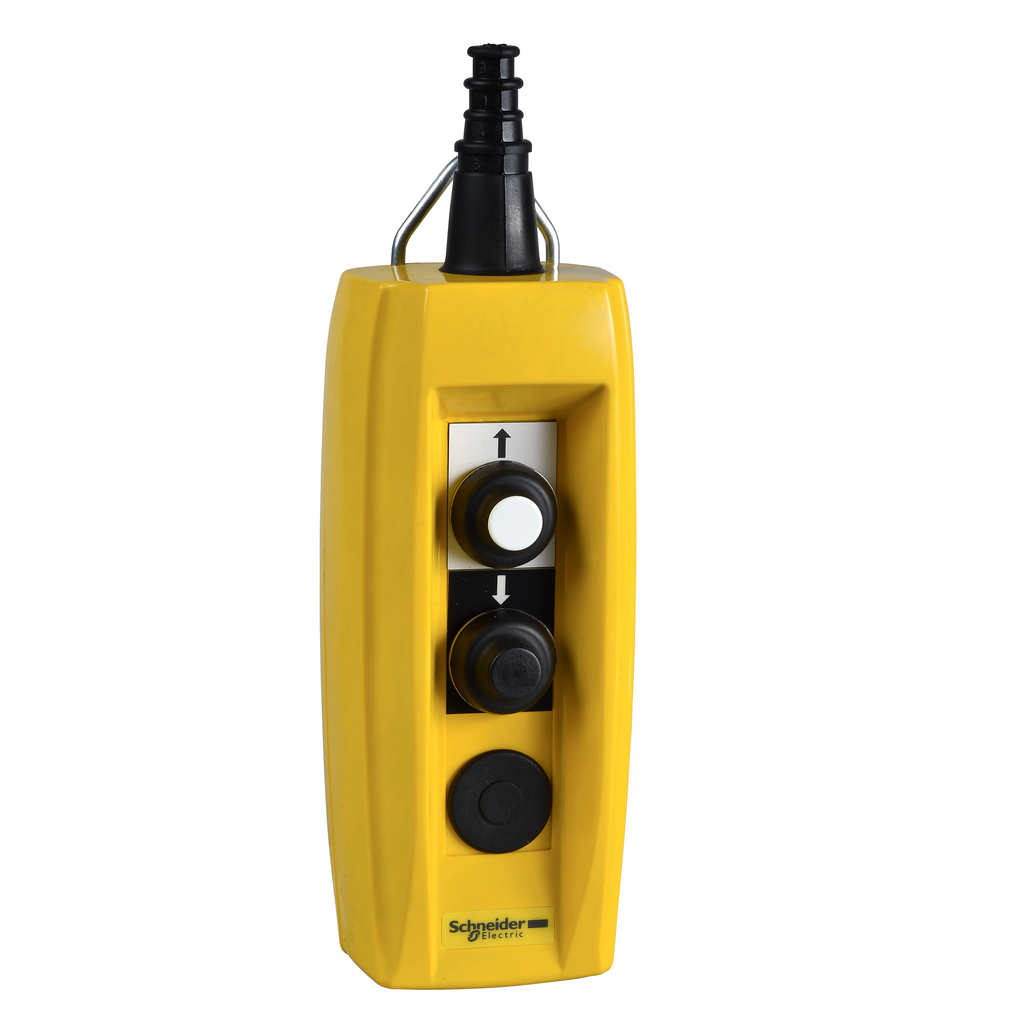

XACB220
Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons, 20A, cable 7…13mm
Specifications
| Range Of Product | Harmony XAC |
|---|---|
| Product Or Component Type | pendant control station |
| Device Short Name | XACB |
| Warranty | 18 months |
| Product Certifications | CSA type 4 |
| Control Station Application | control of single speed hoist motor |
| Terminal Identifier |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Terminals Description Iso N°1 |
|
| Standards |
|
| Short-Circuit Protection | 12 A fuse protection cartridge aM |
| Cable Entry | rubber sleeve with stepped entry 7-13 mm |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Enclosure Type | complete ready for use |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.355 kg |
| Product Compatibility | XESD2201 for reversing operation |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Control Station Type | double insulated |
| Electrical Durability |
|
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage |
|
| Ambient Air Temperature For Storage | -40-70 °C |
| Control Station Composition | 2 push-buttons |
| Overvoltage Category | class II IEC 61140 |
| Contact Operation | snap action |
| Mechanical Interlocking | with mechanical interlocking |
| Control Station Colour | yellow |
| Mechanical Durability | 1000000 cycles |
| Operating Force | 32-32 N push-button |
| Rated Power In Hp | 3 hp 240 V |
| Control Button Type |
|
| [Ithe] Conventional Enclosed Thermal Current | 20 A |
| Electrical Circuit Type | power circuit |
| Enclosure Material | glass reinforced polyester |
| Protective Treatment | TH |
| Rated Operational Power In W |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
