XACB085
Pendant control station, Harmony XAC, empty, plastic, yellow, 8 cut-outs, cable 22…35mm

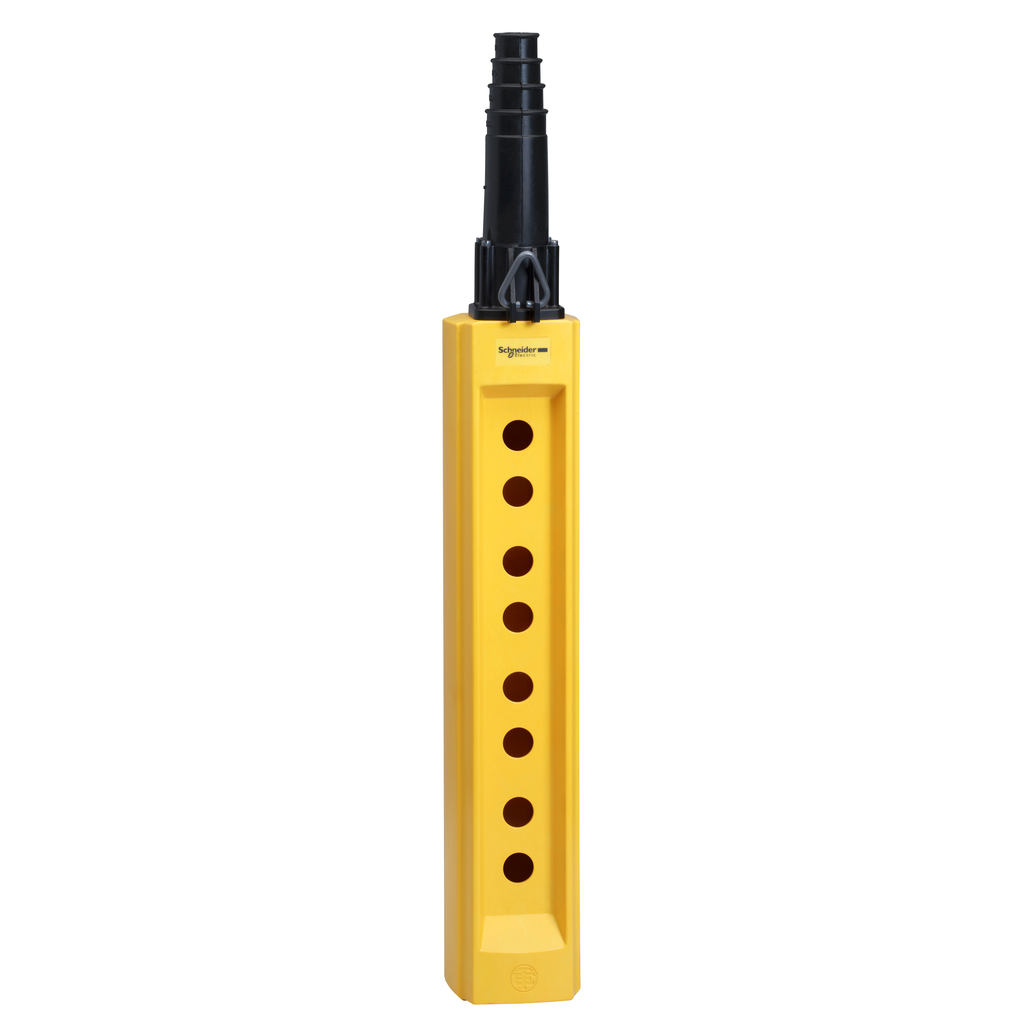

This Harmony XACB085 is an empty pendant control station with 8 vertical openings. This yellow control station is double insulated. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XAC |
|---|---|
| Product Or Component Type | pendant control station |
| Device Short Name | XACB |
| Warranty | 18 months |
| Product Certifications | CSA type 4 |
| Ik Degree Of Protection | IK08 EN 50102 |
| Guard Rail | without |
| Ambient Air Temperature For Operation | -25-70 °C |
| Number Of Cut-Out | 8 cut-outs |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Standards |
|
| Control Station Colour | yellow |
| Mechanical Durability | 1000000 cycles |
| Cable Entry | rubber sleeve with stepped entry 22-35 mm |
| Electrical Circuit Type |
|
| Enclosure Material | glass reinforced polyester |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Enclosure Type | empty enclosure |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Net Weight | 1.53 kg |
| Protective Treatment | TH |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Vertical Operator Cut-Out Centre | 40 mm |
| Control Station Type | double insulated |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
