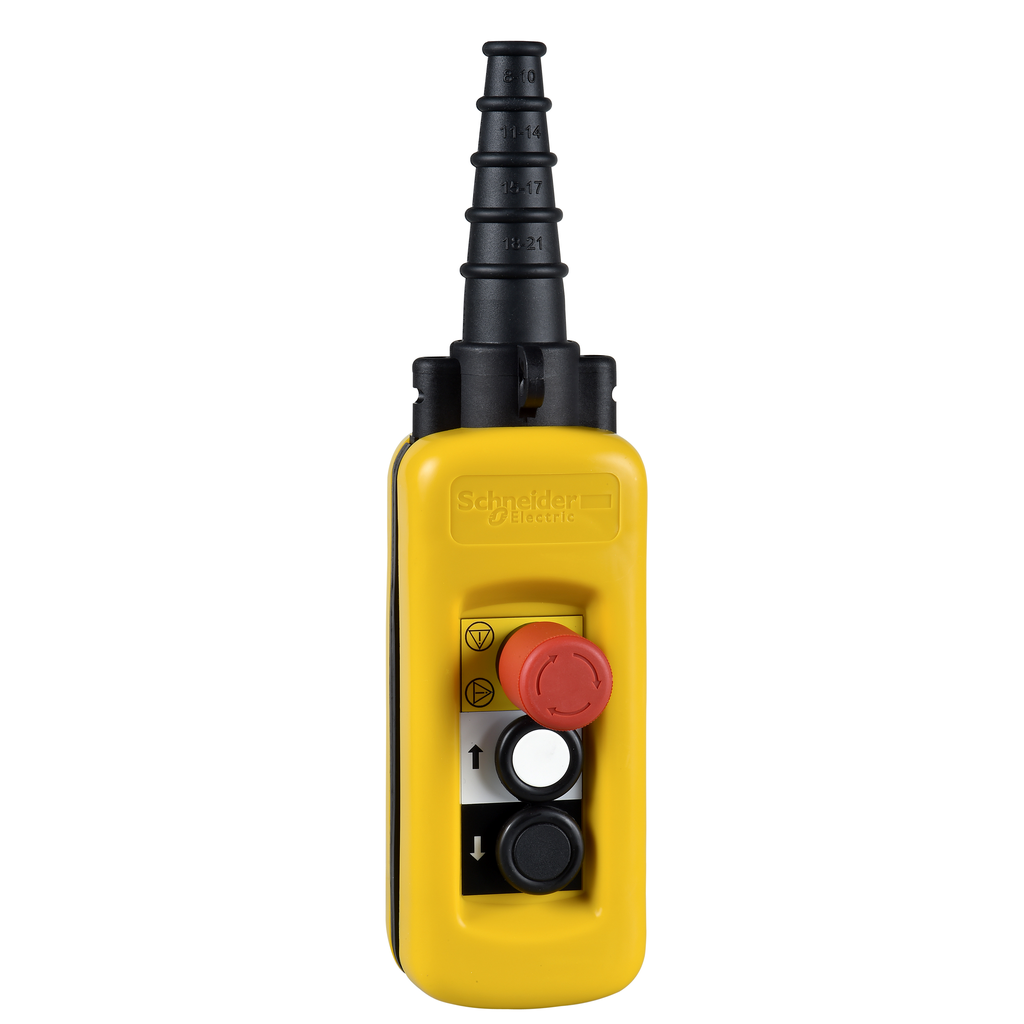

Pendant control station, Harmony XAC, plastic, yellow, 2 push buttons with NO+NC, 1 emergency stop NC
This Schneider Electric Harmony XAC yellow pendant station for hoist motor has single speed. It has 1 "raise" + 1 "lower" + 1 emergency stop push-buttons and uses screw-clamp terminals. This pendant station for hoist motor is designed for standard or medium-duty control circuit applications in your machines. It has 2 push-buttons and 1 emergency stop with "raise" and "lower" markings, with normally open and normally close contact. It is impact resistant (strength), dust resistant (strength), water resistant (strength) and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments. Impact- and stain resistant (strength) enclosure for a sustained appearance despite rough usage conditions. No need to damage your machine or system with multiple 22mm hole, thus avoiding common issues like edge corrosion. Yellow enclosure, favoring visual contrast and visibility in dark conditions. Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XAC |
|---|---|
| Product Or Component Type | pendant control station |
| Device Short Name | XACA |
| Warranty | 18 months |
| Product Certifications |
|
| Ik Degree Of Protection | IK08 EN 50102 |
| Control Station Application | control of single speed hoist motor |
| Terminal Identifier |
|
| Ambient Air Temperature For Operation | -25-70 °C |
| Terminals Description Iso N°2 | (11-12)NC |
| Terminals Description Iso N°1 |
|
| Standards |
|
| Maximum Resistance Across Terminals | 25 MOhm |
| Short-Circuit Protection | 10 A fuse protection cartridge gG |
| Cable Entry | rubber sleeve with stepped entry 8-26 mm |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Enclosure Type | complete ready for use |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.6 kg |
| Product Compatibility |
|
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC 60947-1 |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Control Station Type | double insulated |
| Connections - Terminals |
|
| [Ui] Rated Insulation Voltage | 600 V 3) |
| Ambient Air Temperature For Storage | -40-70 °C |
| Control Station Composition | 2 push-buttons + 1 emergency stop |
| Overvoltage Category | class II IEC 61140 |
| Contact Operation | slow-break |
| Mechanical Interlocking | with mechanical interlocking |
| Control Station Colour | yellow |
| Mechanical Durability | 1000000 cycles |
| Operating Force |
|
| Control Button Type |
|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Electrical Circuit Type | control circuit |
| Enclosure Material | polypropylene |
| Contact Code Designation |
|
| Protective Treatment | TH |
| Rated Operational Power In W |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070905EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
