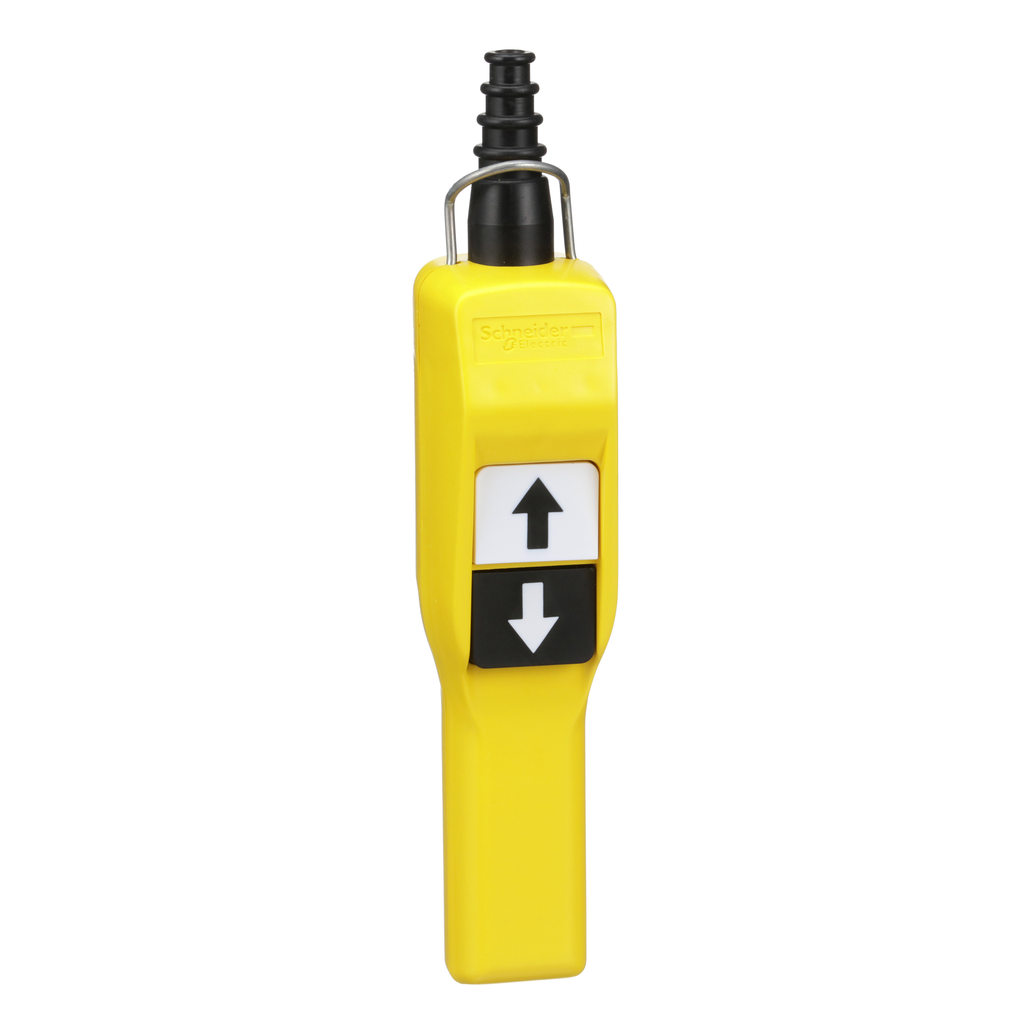

XACA201 – Harmony, pendant station, pistol grip, yellow, 2 push buttons
XACA201
Harmony, pendant station, pistol grip, yellow, 2 push buttons

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Harmony XAC
Product Or Component Type pendant control station
Device Short Name XACA pistol grip
Warranty 18 months
Product Certifications
  • CSA
  • UL
Ik Degree Of Protection IK08 EN 50102
Control Station Application control of single speed hoist motor
Terminal Identifier
  • (11-12)NC
  • (13-14)NO
Ambient Air Temperature For Operation -25-70 °C
Terminals Description Iso N°1 (13-14)NO
Standards
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • EN/IEC 60204-32
  • UL 508
Maximum Resistance Across Terminals 25 MOhm
Short-Circuit Protection 10 A fuse protection cartridge gG
Cable Entry rubber sleeve with stepped entry 7-15 mm
Shock Resistance 100 gn IEC 60068-2-27
Enclosure Type complete ready for use
Vibration Resistance 15 gn 10-500 Hz)IEC 60068-2-6
Net Weight 0.27 kg
Product Compatibility ZB2BE101 for each direction
[Uimp] Rated Impulse Withstand Voltage 6 kV IEC 60947-1
Ip Degree Of Protection IP65 conforming to IEC 60529
Control Station Type double insulated
Control Type intuitive
Connections - Terminals
  • screw clamp terminals, 1 x 2.5 mm² with or without cable end
  • screw clamp terminals, 2 x 1.5 mm² with or without cable end
[Ui] Rated Insulation Voltage 600 V 3)IEC 60947-1
Ambient Air Temperature For Storage -40-70 °C
Control Station Composition 2 push-buttons
Overvoltage Category class II IEC 61140
Contact Operation slow-break
Mechanical Interlocking with mechanical interlocking
Control Station Colour yellow
Mechanical Durability 1000000 cycles
Operating Force 13-15 N
Control Button Type
  • first push-button 1 NO raise, slow
  • second push-button 1 NO lower, slow
[Ithe] Conventional Enclosed Thermal Current 10 A
Electrical Circuit Type control circuit
Enclosure Material polypropylene
Contact Code Designation
  • A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A
  • A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A
  • Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
  • Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Protective Treatment TH
Rated Operational Power In W
  • 40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C
  • 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C
  • 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Rohs Exemption Information Yes
Mercury Free Yes
Environmental Disclosure ENVPEP070905EN
Sustainable Offer Status Green Premium product
Toxic Heavy Metal Free Yes
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Weee The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation X
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
