XACA03H7

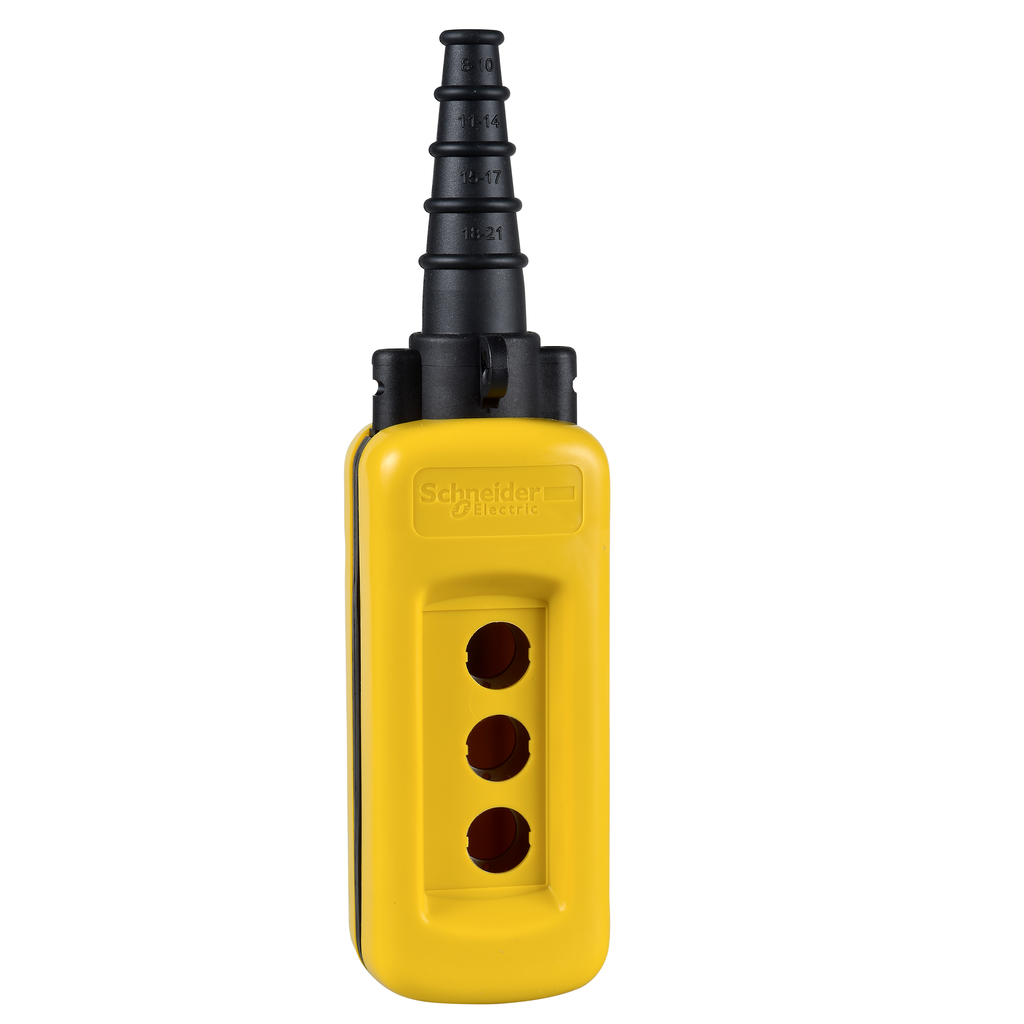

Empty pendant control station, Harmony XAC, plastic, yellow, 3 cut outs, UL CSA certified
This Harmony XACA03H7 is a empty pendant control station with 3 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Harmony XAC |
|---|---|
| Product Or Component Type | pendant control station |
| Device Short Name | XACA |
| Warranty | 18 months |
| Product Certifications |
|
| Ik Degree Of Protection | IK08 EN 50102 |
| Guard Rail | without |
| Ambient Air Temperature For Operation | -25-70 °C |
| Standards |
|
| Cable Entry | rubber sleeve with stepped entry 8-26 mm |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Enclosure Type | empty enclosure |
| Vibration Resistance | 15 gn 10-500 Hz)IEC 60068-2-6 |
| Net Weight | 0.44 kg |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Vertical Operator Cut-Out Centre | 30 mm |
| Control Station Type | double insulated |
| Number Of Cut-Out | 3 cut-outs |
| Ambient Air Temperature For Storage | -40-70 °C |
| Overvoltage Category | class II IEC 61140 |
| Control Station Colour | yellow |
| Mechanical Durability | 1000000 cycles |
| Electrical Circuit Type | control circuit |
| Enclosure Material | polypropylene |
| Protective Treatment | TH |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP070905EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
