Additional pole,TeSys Control,20A,for VN12,VN20

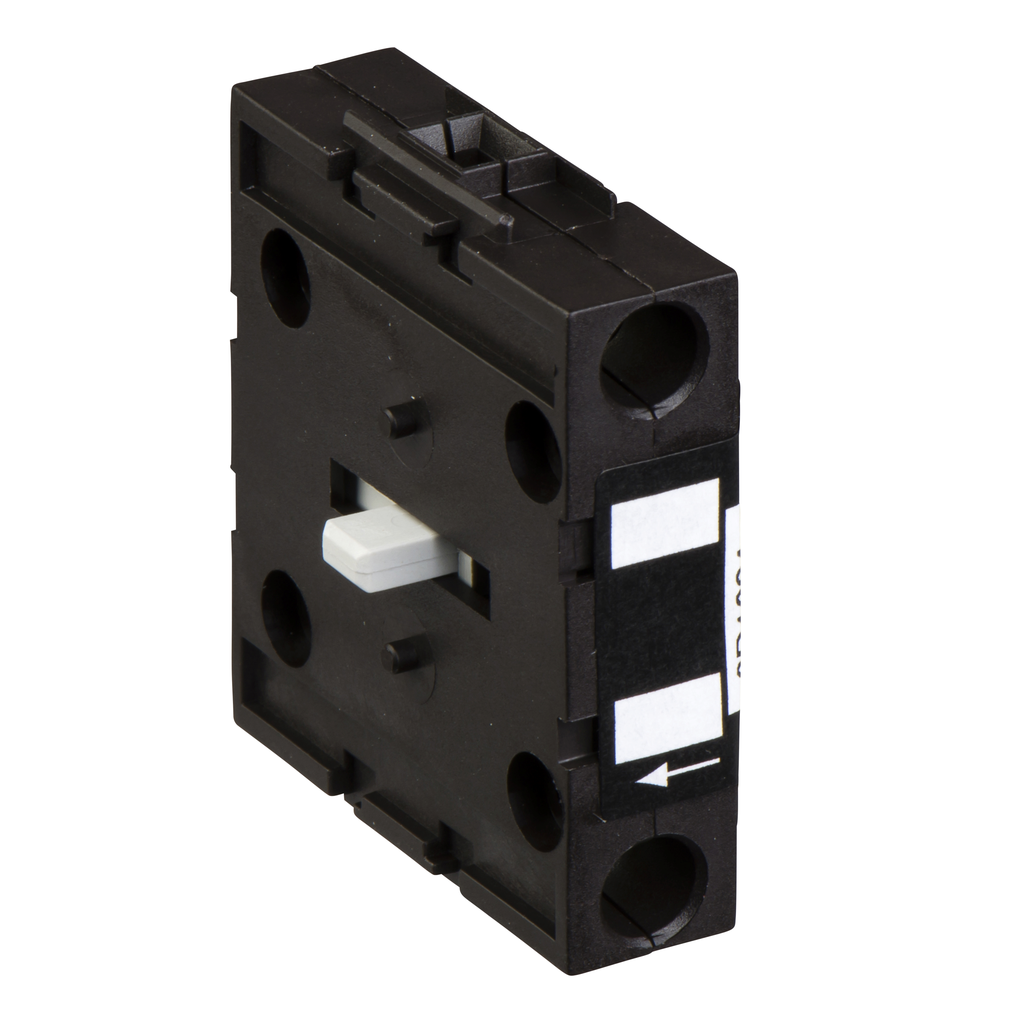

VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. VZN20 is an add-on main pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 20A 690V, compatible with switch types VN20. A maximum of 2 VZN20 main pole modules can be attached to a switch body VN20. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Add-on main pole module for Vario switch disconnector assemblies. Same AC and DC ratings as VN20 switch bodies. Other add-on modules available for VN20 switch bodies , neutral (VZN11), earthing (VZN14), auxiliary contacts (VZN05, VZN06).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Network Type |
|
| Product Or Component Type | additional pole |
| Performance Level | standard |
| Range | TeSys |
| Mounting Location |
|
| Contacts Type And Composition | 1 NO |
| Poles Description | 1P |
| Product Compatibility | VN20 |
| Device Short Name | VZN |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 45.5 mm |
| [Ith] Conventional Free Air Thermal Current | 20 A |
| Range Compatibility | TeSys (TeSys VARIO) VCFN switch disconnector |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| Net Weight | 0.02 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Connections - Terminals |
|
| Electrical Durability |
|
| Suitability For Isolation | yes |
| Mechanical Durability | 50000 cycles |
| Width | 12 mm |
| Tightening Torque | power circuit 0.7-0.7 N.m screw clamp terminals |
| Depth | 39 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110227EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
| Fire Resistance | 960 °C IEC 60695-2-1 |
