Additional neutral block,TeSys Control,20A,for VN12,VN20

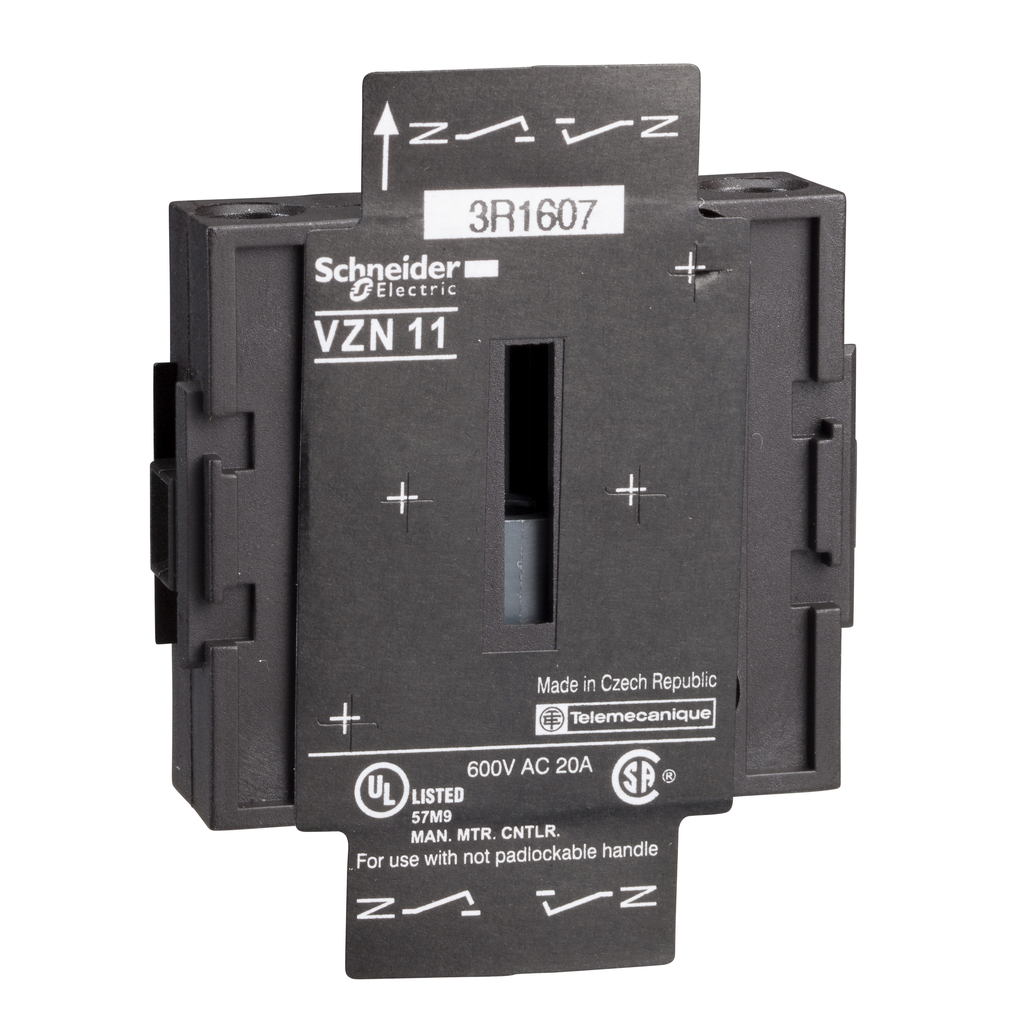

VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. It behaves as an "early make" and "late break" contact. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Add-on neutral pole module for Vario switch disconnector assemblies. Rated 12A to 20A 690VAC to be used with VN12 and VN20 switch bodies. Other add-on modules available for VN12 and VN20 switch bodies , main poles (VZN12 and VZN20), earthing (VZN14), auxiliary contacts (VZN05, VZN06).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Network Type |
|
| Product Or Component Type | additional neutral block |
| Performance Level | standard |
| Range | TeSys |
| Mounting Location | right |
| Contacts Type And Composition | 1 NO |
| Contact Operation | early make, late break |
| Poles Description | 1N |
| Product Compatibility |
|
| Device Short Name | VZN |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 45.5 mm |
| [Ith] Conventional Free Air Thermal Current | 20 A |
| Range Compatibility | TeSys (TeSys VARIO) VCFN switch disconnector |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| Net Weight | 0.02 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Connections - Terminals |
|
| Electrical Durability |
|
| Mechanical Durability | 50000 cycles |
| Width | 12 mm |
| Tightening Torque | 0.7-0.7 N.m screw clamp terminals |
| Depth | 39 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110227EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
| Fire Resistance | 960 °C IEC 60695-2-1 |
