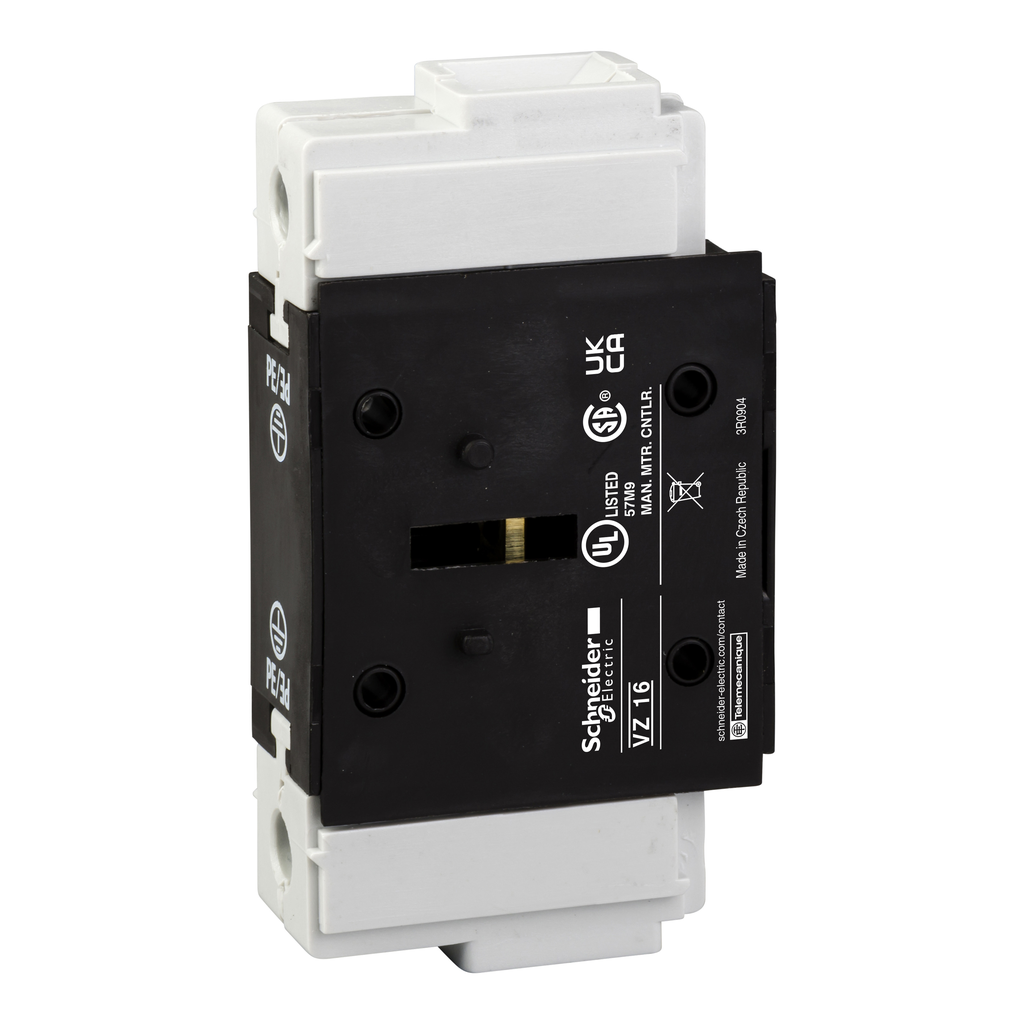

VZ16 - Additional earthing block,TeSys Control,175A,for V5 / V6

VZ16

Additional earthing block,TeSys Control,175A,for V5 / V6

VZ16 is an add-on earthing module for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A to 175A 690V, to be used with V5 and V6 switch bodies. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Network Frequency	50/60 Hz
Network Type	AC DC
Product Or Component Type	additional earthing block
Performance Level	high performance
Range	TeSys
Contacts Type And Composition	without
Product Compatibility	V5 V6
Device Short Name	VZ
Warranty	18 months
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz
Height	125 mm
[Ith] Conventional Free Air Thermal Current	175 A
Net Weight	0.25 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV
Mounting Location	left right
Connections - Terminals	screw clamp terminals
Width	30 mm
Depth	63 mm
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110227EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Product Certifications	GL CSA UL UKCA
Ambient Air Temperature For Operation	-20-50 °C
Standards	IEC 60947-3
Ip Degree Of Protection	IP20 conforming to IEC 60529
Protective Treatment	TC
Mechanical Robustness	vibrations 10...150 Hz 5 gn) IEC 60068-2-6 shocks 11 ms 15 gn) IEC 60068-2-27
Fire Resistance	960 °C IEC 60695-2-1
