VZ14

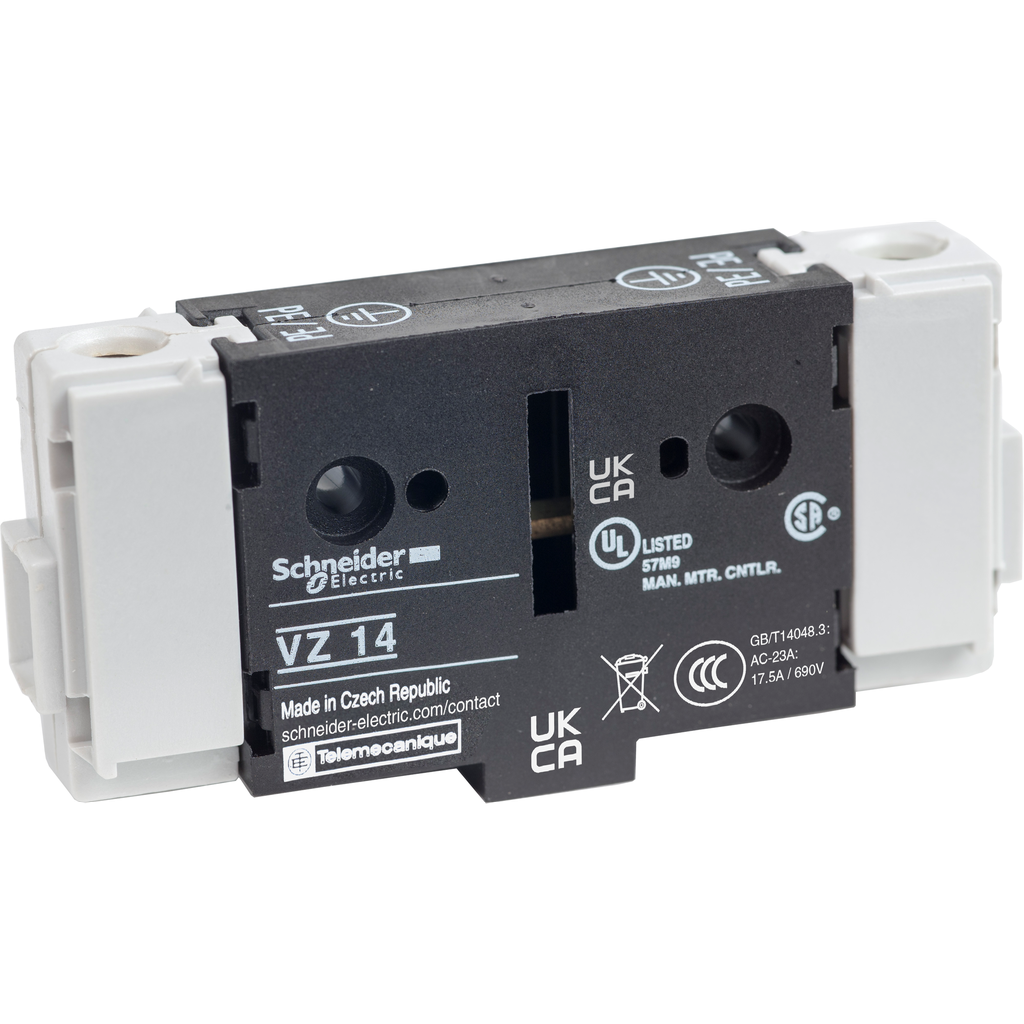

Additional earthing block,TeSys Control,40A,for V02-V2
VZ14 is an add-on earthing module for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A to 40A 690V, to be used with V02 to V2 switch bodies. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Network Type |
|
| Product Or Component Type | additional earthing block |
| Performance Level | high performance |
| Range | TeSys |
| Contacts Type And Composition | without |
| Product Compatibility |
|
| Device Short Name | VZ |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 74 mm |
| [Ith] Conventional Free Air Thermal Current | 40 A |
| Net Weight | 0.05 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Mounting Location |
|
| Connections - Terminals | screw clamp terminals |
| Width | 16 mm |
| Depth | 35 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110227EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
| Fire Resistance | 960 °C IEC 60695-2-1 |
