VZ13

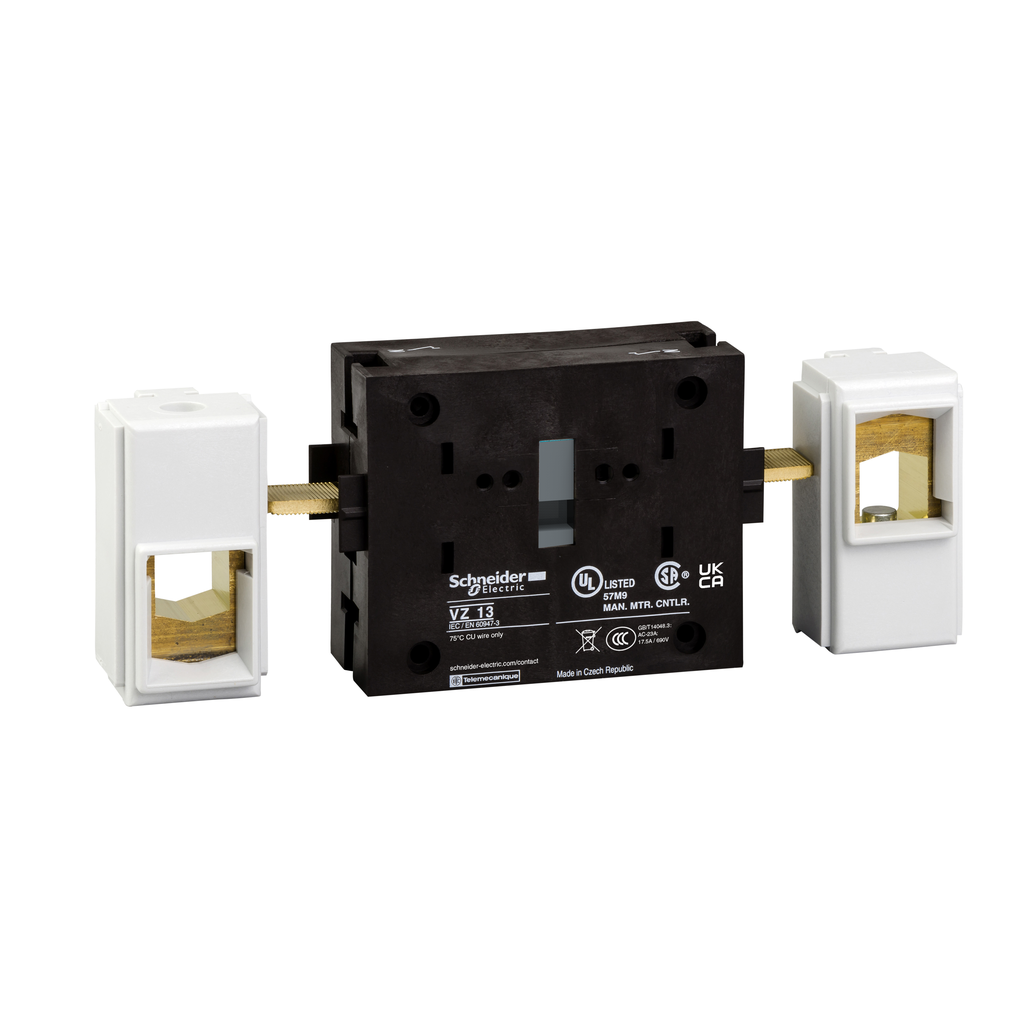

Additional neutral block,TeSys Control,175A,for V5 / V6
VZ13 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A to 175A 690V, to be used with V5 and V6 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Network Type |
|
| Range Compatibility | TeSys (TeSys VARIO) switch disconnector |
| Product Or Component Type | additional neutral block |
| Performance Level | high performance |
| Range | TeSys |
| Contacts Type And Composition | 1 NO |
| Contact Operation | early make, late break |
| Poles Description | 1N |
| Product Compatibility |
|
| Device Short Name | VZ |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 125 mm |
| [Ith] Conventional Free Air Thermal Current | 175 A |
| Net Weight | 0.25 kg |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Mounting Location |
|
| Connections - Terminals |
|
| Electrical Durability |
|
| Mechanical Durability | 30000 cycles |
| Width | 30 mm |
| Tightening Torque | 22.6-22.6 N.m screw clamp terminals |
| Depth | 63 mm |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110227EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards | IEC 60947-3 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
| Fire Resistance | 960 °C IEC 60695-2-1 |
