VZ10
Terminal shrouds,TeSys Control,for V5 / V6

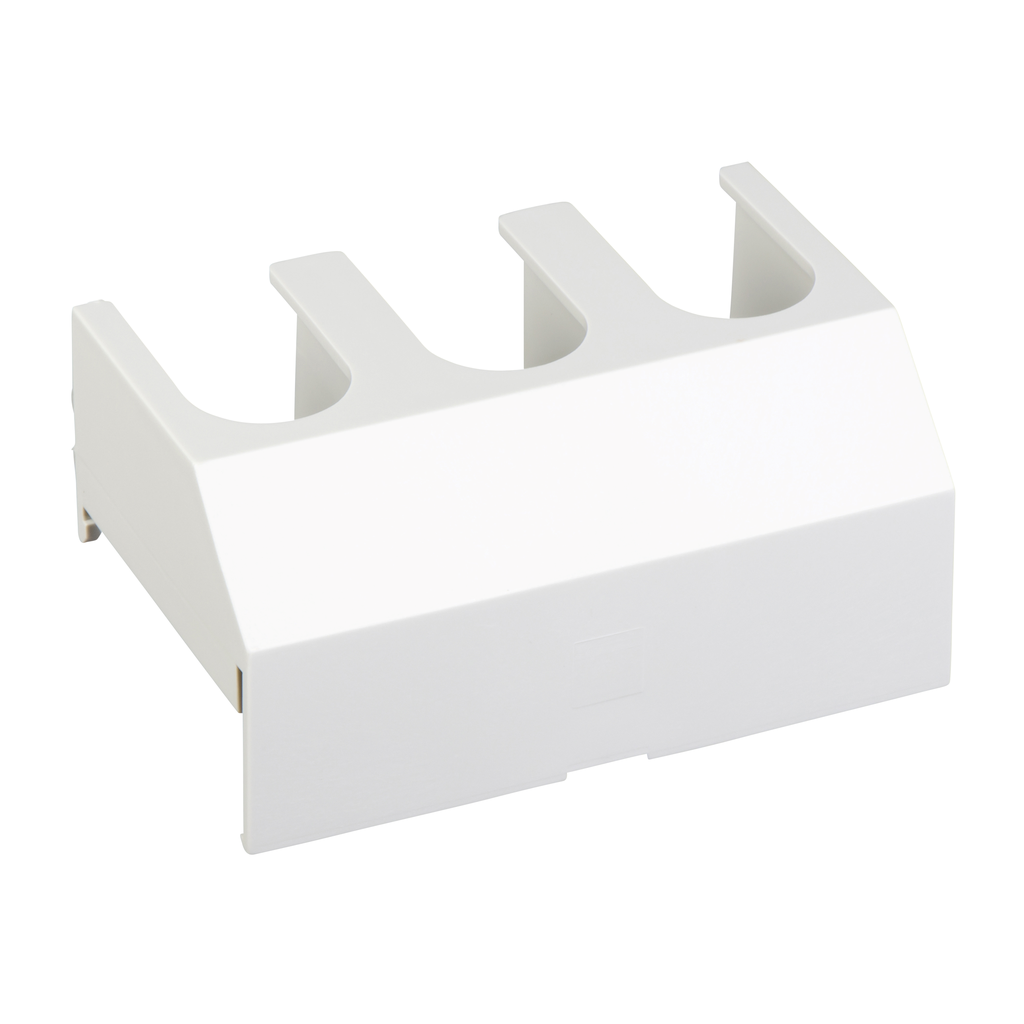

VZ10 is a 3-pole terminal protection shroud for TeSys Vario switch-disconnectors from Schneider Electric. To be used with V5 and V6 switch bodies. The shroud protects against direct contact on terminals by providing a front face IP20 protection. Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | protection accessory |
|---|---|
| Product Or Component Type | terminal shroud |
| Range | TeSys |
| Poles Description | 3P |
| Product Compatibility |
|
| Device Short Name | VZ |
| Warranty | 18 months |
| Net Weight | 60 g |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP110227EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Halogen Content Performance | Halogen free product |
Documents
- Spec Sheet
- Manual Motor Control Switches and Disconnects Catalog - 9421CT0301 (pdf)
- Digest Catalog 08: Operating Mechanisms and Disconnect Switches (FEB 2021) - 0100CT1901_SEC-08_FEB-2021 (pdf)
- V V.0 - V V.4 VARIO - Instruction sheet - 201646007A50-02 (pdf)
- V..GE, VC.GUN, VC.GEN VARIO enclosed switch disconnectors - Instruction Sheet - BBV28752-09 (pdf)
- V0...V6, VN Switch disconnectors VARIO - Instruction sheet - 164600501A50-09 (pdf)
- KZ... / VZ... Cam switches - Accessories, Instruction Sheet - NVE1176500_00 (pdf)
